4X 3/8"-16 FLANGE NUT (PROVIDED) THREADS ONTO BOLT
FROM INSIDE OF PEDESTAL (NOT AS SHOWN)
"LOW" POSITION:
OPENING TOWARD
THE BOTTOM
1-1/2" TEE
4X 3/8"-16 X 1-1/8"
HEX BOLT (PROVIDED)
4X 1/4"-20 FLAT HEAD
TAMPER RESISTANT SCREW
(PROVIDED)
6
1
4
"
159mm
9"
226mm
10"
254mm
10"
254mm

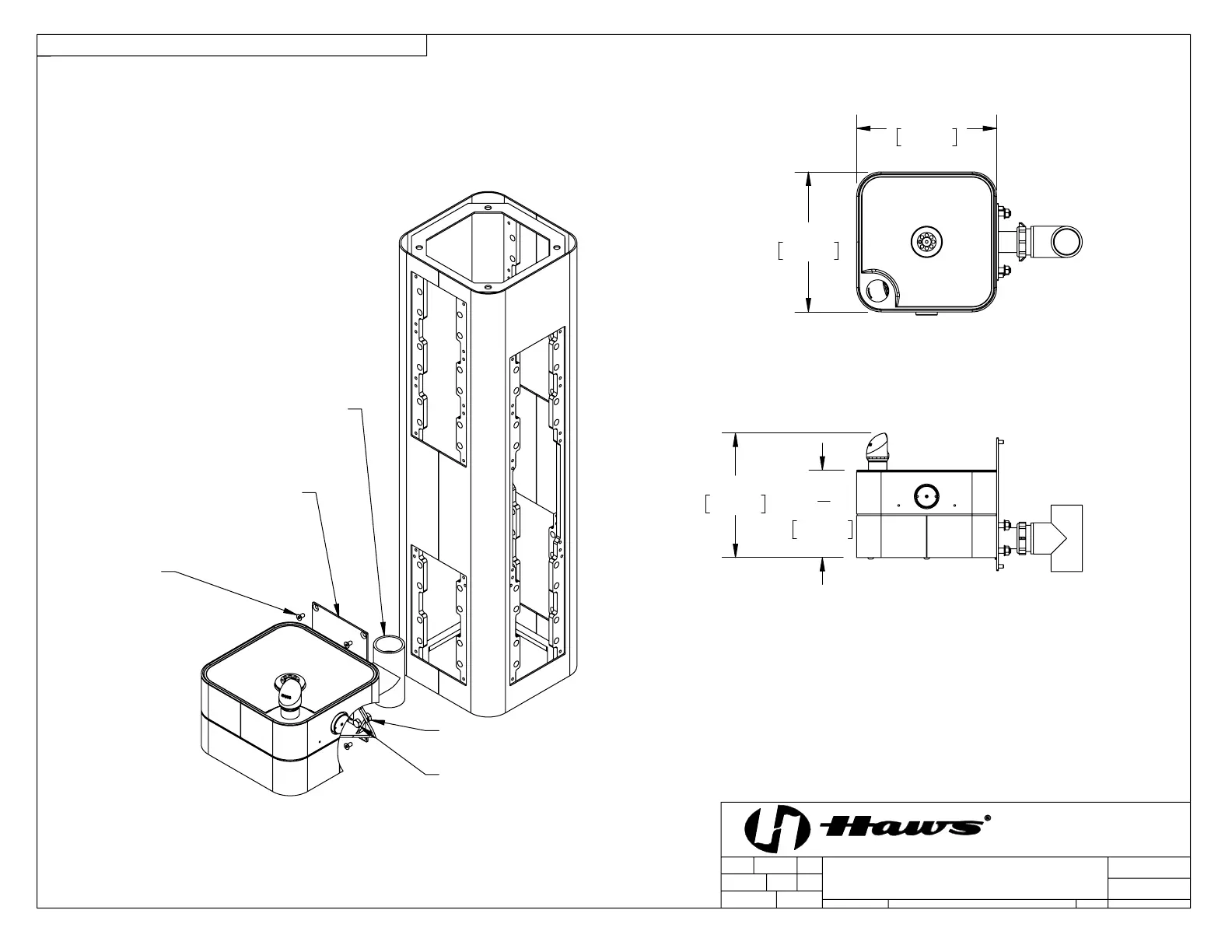

NOTE: STANDARD CONFIGURATION FOR MODEL 3670 ON A PEDESTAL IS SHOWN. IT IS
RECOMMENDED THAT THE ASSEMBLY IS PLACED AT THE LOWEST OPENING ON THE
PEDESTAL. THE MOUNTING PLATE CAN BE ROTATED SO THE DOG BOWL CAN BE IN A
"HIGH" OR "LOW" POSITION. IT IS RECOMMENDED TO USE THE "LOW" POSITION AS
SHOWN.
NOTES
1. WHEN INSTALLING THIS UNIT, LOCAL, STATE, OR FEDERAL CODES SHOULD BE ADHERED TO.
FOR INSTALLATION HEIGHTS OTHER THAN SHOWN, DIMENSIONS MARKED (*) MUST BE
ADJUSTED ACCORDINGLY. INSTALL A TRAP IN THE WASTE LINE AND A SCREWDRIVER STOP
IN THE SUPPLY LINE IF REQUIRED.
2. IF NECESSARY FOR INSTALLATION, BOWL CAN BE REMOVED BY REMOVING THE SCREW IN
THE CENTER OF THE BOWL.
PAGE 1 OF 2
PAGE 1 OF 2
© 2020 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT
IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
APPROVED:
DRAWN:
PART NUMBER
SCALE:
REVISION
MH
05/16/17
4
MODEL 3670 PET BOWL
ACCESSORY
1:8
IR
07/01/20
DRAWING TYPE:
SIZE: A
5226
BY:
DHP
INSTALLATION
DATE:
DATE:
REV. ECN:
5543
CHK'D.:
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
TM
ECN:
SHEET 1 OF 2
0510000703.D
