Hager Electro Pty. Ltd. - Unit 1/170 Power Street Glendenning NSW 2761 - Tel. 1300 850 253 - Fax. 1300 424 372 - www.hagerelectro.com.au

WIS0020C10

117

25

77

26

21

Specifications:

WBHC - 2 x Separate circuits, 10A, 250V AC

2 x looping terminals

WBHC2XX - 2 x Separate circuits, 10A, 250V AC

2 x looping terminals

2 x 16AX mechanisms

Note:

This keycard switch is fitted with a neon indicator

which is lit when the keycard is not inserted into

the switch. Should you wish to use this function,

circuit 1 must be connected to power.

C12

C12

A-Line

Neutral

Load

A-Line

Load

Neutral

WBHC2

Keycard inserted

WBHC2

Keycard inserted

WIS0020C10

WBHC2/WBHC2XX

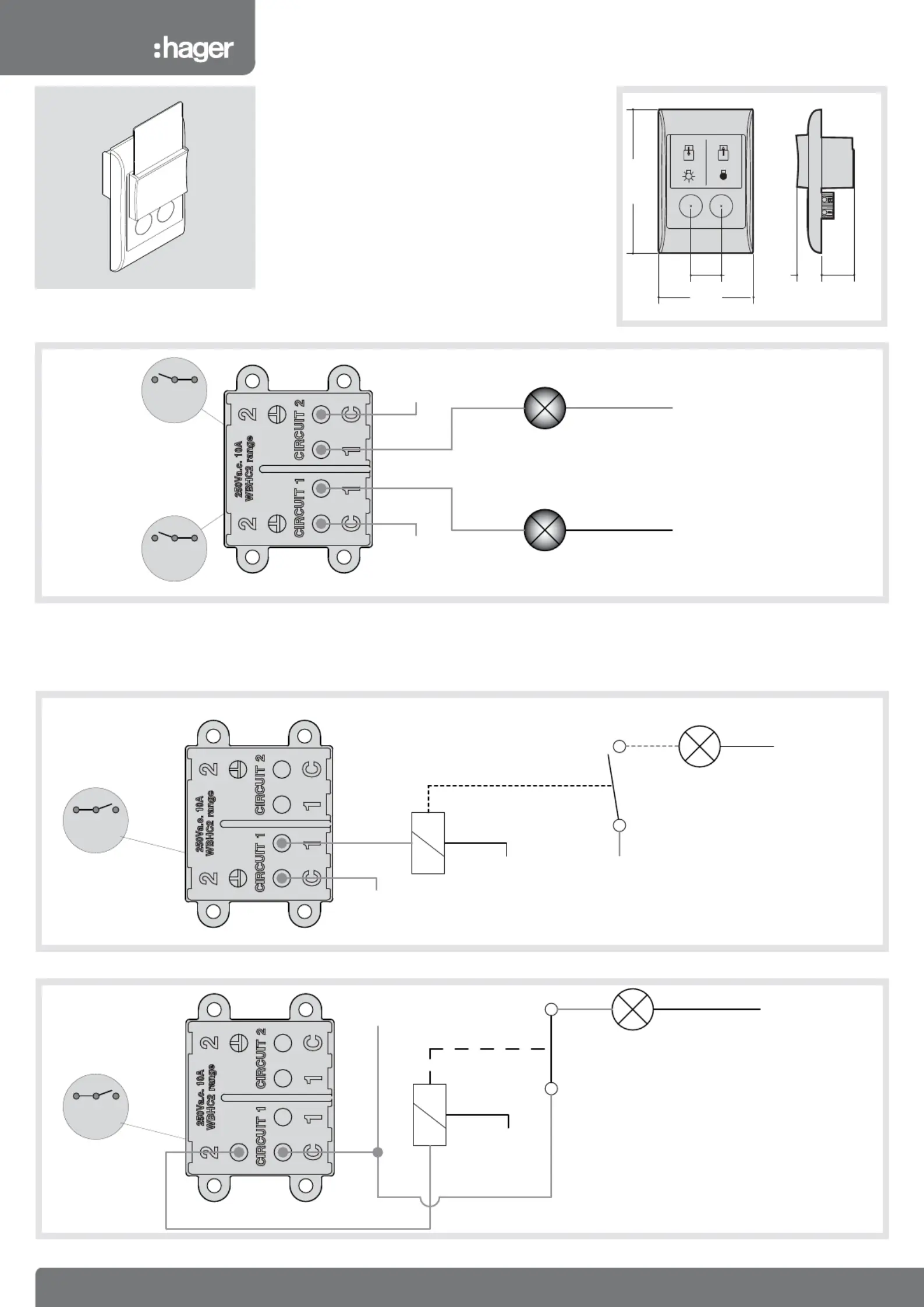

Wiring diagram

to connect

2 x 10A circuits

Wiring diagram for use with

normally closed contactor.

To be used where noiseless

contactor operation is critical,

e.g. bedrooms

A-Line

N.C Contactor

Neutral

Load

Neutral

Normally

Closed

W

BHC2

C12

Keycard not inserted

W

BHC2

Wiring diagram when using

a normally open contactor

A-Line

A-Line

N.O Contactor

Neutral

Load

Neutral

Normally

Open

C12

Keycard not inserted
