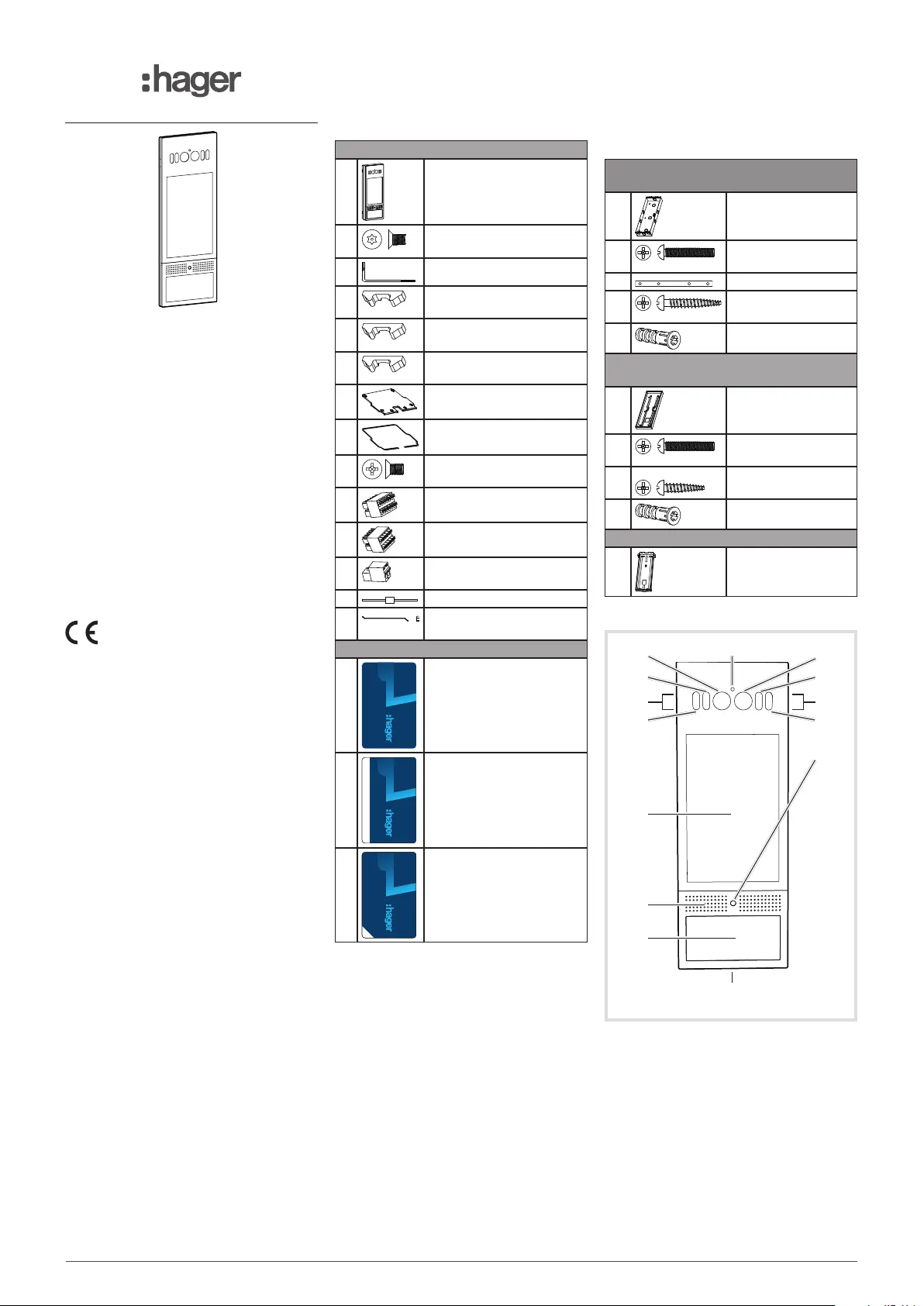

01

Safety instructions

Electrical devices may only be installed

and assembled by a qualied electrician in

accordance with the relevant installation

standards, guidelines, regulations, direc-

tives, safety and accident prevention regu-

lations of the country.

When installing and routing cables, al-

ways comply with the applicable regula-

tions and standards for SELV electrical

circuits.

These instructions are an integral compo-

nent of the product and must be retained

by the end user.

Scope of delivery

Outdoor unit

1x

Outdoor unit

1x

Torx TR10 xing screw

M3x6 mm

1x

Torx TR10 wrench

2x

Cable entry

seal, self-adhesive, small

2x

Cable entry

seal, self-adhesive, medium

2x

Cable entry

seal, self-adhesive, large

1x

Connection compartment

cover plate

1x

Connection compartment

seal

6x

PH2 cross-head screw

M3x4 mm for cover plate

1x

Connection terminal block

2 x 6 PIN

1x

Connection terminal block

2 x 5 PIN

1x

Connection terminal block

2 PIN

3x

Diode

1x

Connection terminal block

removal aid tool

RFID card

1x

RFID user card

For reordering:

RTH303X (3 pcs)

RTH310X (10 pcs)

1x

RFID registration card

1x

RFID conguration card

Optional accessories, scope of

delivery

Flush-mounted installation housing,

RTW021X

1x

Flush-mounted instal-

lation housing

4 x

PH2 cross-head

screw M4x40 mm

2x

Plaster masks

4 x

PH2 cross-head

screw 4x35 mm

4 x

Anchor Ø 6 mm

Surface-mounted installation housing,

RTW121X

1x

Surface-mounted

installation housing

2x

PH2 cross-head

screw M4x30 mm

4 x

PH2 cross-head

screw 4x20 mm

4 x

Anchor Ø 6 mm

Hollow wall installation housing, RTW022X

1x

Hollow wall installa-

tion housing

Design and layout of the device

(11)

(8)

(7)

(4)

(5)

(3)

(1)

(4)

(5)

(6)

(6)

(9)

(10)

(2)

Fig. 1: Front side, outdoor station

(1) Main camera

(2) Twilight sensor for the connection of the

IR-LED

(3) Camera for facial recognition

(4) IR-LED to support facial recognition

(5) Microphone

(6) White light LED for night vision

(7) Touchscreen

(8) Loudspeaker

(9) RFID card reader

(10) Safety screw of the outdoor station

(11) Motion sensor

z

RTQ520X, RTQ521X

Elcom motion

6LE008973A
