Pagina 1/5
2. Power terminal connections
Use terminal lugs, rigid or exible busbars.
125A160A200A250A400A630A
Minimum Cu
cable section
at Ith
(mm
2
)3550951852 x 120
Minimum Cu
busbar section
at Ith
(mm
2
)-2x40x5
Maximum Cu
cable section
(mm
2
)50951201502402 x 300
Maximum Cu
busbar width
(mm)253250
Type of screw
M8M10M12
Recommended
tightening
torque
(N.m)8,32040
Maximum
tightening
torque
(N.m)132645
6LE007739Aa

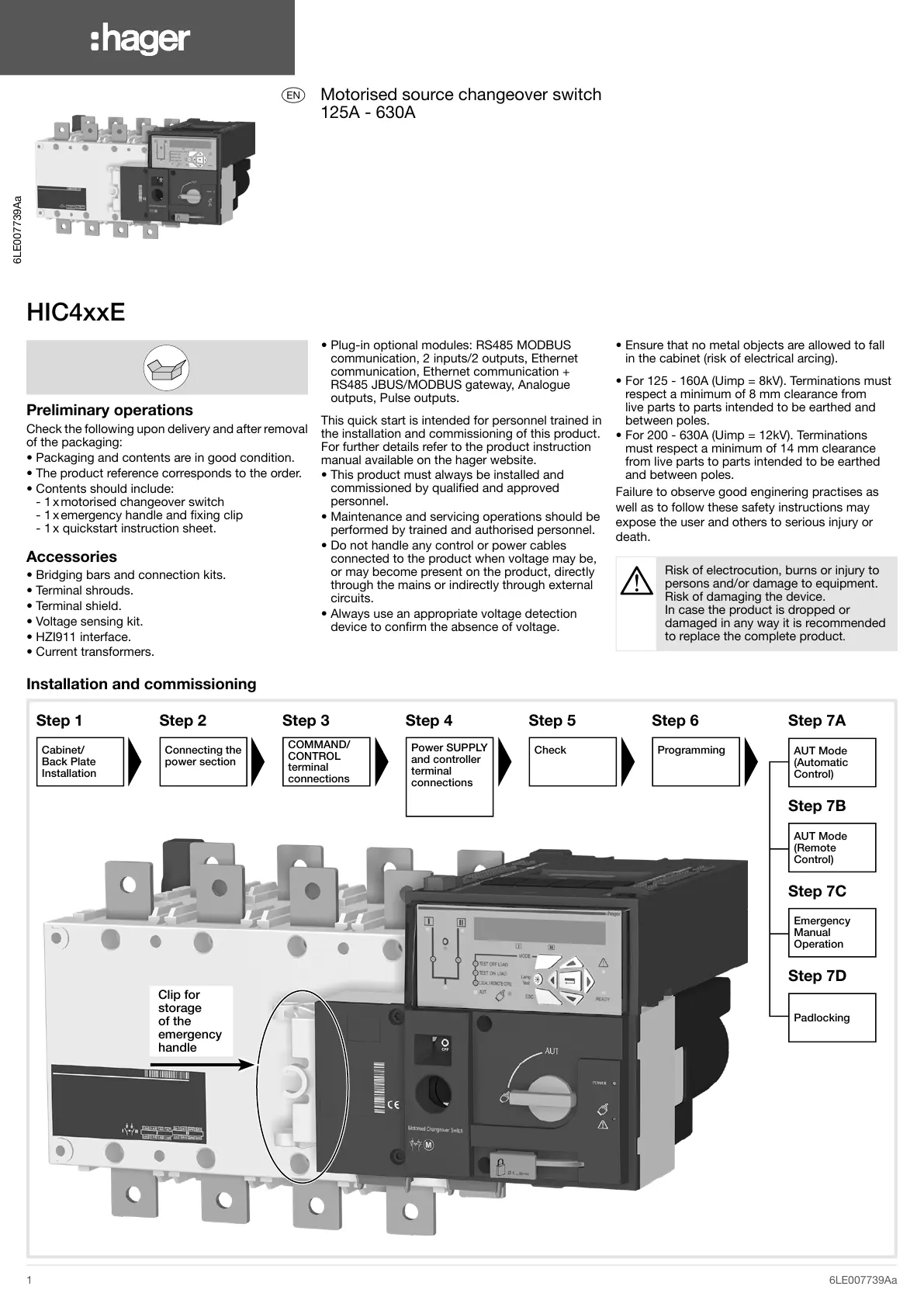

HIC4xxE
Preliminary operations
Check the following upon delivery and after removal
of the packaging:
• Packaging and contents are in good condition.
• The product reference corresponds to the order.
• Contents should include:
- 1 x motorised changeover switch
- 1 x emergency handle and xing clip
- 1 x quickstart instruction sheet.
Accessories
• Bridging bars and connection kits.
• Terminal shrouds.
• Terminal shield.
• Voltage sensing kit.
• HZI911 interface.
• Current transformers.
• Plug-in optional modules: RS485 MODBUS
communication, 2 inputs/2 outputs, Ethernet
communication, Ethernet communication +
RS485 JBUS/MODBUS gateway, Analogue
outputs, Pulse outputs.
This quick start is intended for personnel trained in
the installation and commissioning of this product.
For further details refer to the product instruction
manual available on the hager website.
• This product must always be installed and
commissioned by qualied and approved
personnel.
• Maintenance and servicing operations should be
performed by trained and authorised personnel.
• Do not handle any control or power cables
connected to the product when voltage may be,
or may become present on the product, directly
through the mains or indirectly through external
circuits.
• Always use an appropriate voltage detection
device to conrm the absence of voltage.
• Ensure that no metal objects are allowed to fall
in the cabinet (risk of electrical arcing).
• For 125 - 160A (Uimp = 8kV). Terminations must
respect a minimum of 8 mm clearance from
live parts to parts intended to be earthed and
between poles.
• For 200 - 630A (Uimp = 12kV). Terminations
must respect a minimum of 14 mm clearance
from live parts to parts intended to be earthed
and between poles.
Failure to observe good enginering practises as
well as to follow these safety instructions may
expose the user and others to serious injury or
death.
Installation and commissioning
Clip for
storage
of the
emergency
handle
Risk of electrocution, burns or injury to
persons and/or damage to equipment.
Risk of damaging the device.
In case the product is dropped or
damaged in any way it is recommended
to replace the complete product
.
Step 1
Cabinet/
Back Plate
Installation
Step 2
Connecting the
power section
Step 3
COMMAND/
CONTROL
terminal
connections
Step 4
Power SUPPLY
and controller
terminal
connections
Step 5
Check
Step 6
Programming
Step 7A
AUT Mode
(Automatic
Control)
Step 7B
AUT Mode
(Remote
Control)
Step 7C
Emergency
Manual
Operation
Step 7D
Padlocking
z
Motorised source changeover switch
125A - 630A
1
Preferred source
2
Alternate source
&Position 0 order
éPosition 1 order
" Position 2 order
' Zero position priority order
(Remote control enable (priority over auto)
§Product available output (Motor)
èPosition II aux contact
!Position I aux contact
çPosition 0 aux contact
aO/P to HZI911 remote display
zProgrammable output contact, by default set
to ATS product available - Normally open
e to yprogrammable inputs 1-4
u and iprogrammable inputs 5-6
oAux. supply (207/210) to be used with
optional I/O modules
pContact “Start/Stop Genset”: if S1 is not
available the NC contact (71-72) is closed
qContact “Start/Stop Genset”: if S1 is not
available the NO contact (71-74) is open
sOption module slots 1 to 4
dCurrent Transformer incoming cable
connections
fVoltage sensing inputs
gPower supply inputs
Example: control wiring for a 400 VAC application having a 3 phase and neutral supply
3. CONTROL/COMMAND terminals
Ensure that the product is in Manual Mode.
ff
gg
HZI911
4. Power supply, sensing and control wiring
Use cables with 1,5 to 2,5 mm
2
section.Screw M3Tightening torque: min.: 0.5 Nm - max.: 0.6 Nm
+=,
%%
3RZHU9a
3RZHU9a
ATS Power supply input II
Power supply II - L
Power supply II - N
208-277 VAC ±20% : 50/60 Hz
ATS Voltage sensing input
Source supply II
S II - Phase 1
S II - Phase 2
S II - Phase 3
575 VAC (ph-ph) maxi
S II - Neutral
332 VAC (ph-n) maxi
Programmable inputs
To option module (-)/Common
Progr. inputs (208-209)
To option module (+)
Genset Start/stop
NC
Common
NO
ATS Power supply input I
Power supply I - L
Power supply I - N
208-277 VAC ±20% : 50/60 Hz
ATS Voltage sensing input
Source supply I
S I - Phase 1
S I - Phase 2
S I - Phase 3
575 VAC (ph-ph) maxi
S I - Neutral
332 VAC (ph-n) maxi
ATS Module control inputs
(programmable)
ATS Module output control
(programmable)
Remote interface
RJ45 to HZI911
Current transformer incoming
cable connections
Slot for optional modules
5. Check
Whilst in manual mode,
check the wiring
and if ok power up
the product.
LED Green =
“Power”: ON
LED Red =
“Manuel/Defaut”: ON
6LE007739Aa16LE007739Aa26LE007739Aa3
XT
M
F
C
Fix.187,5
21
229,5
16,2
16,2
8,6
8,6
U
CA
12,5
7,5
W
a
a
b
c
c
b
Dimensions in mm
125A160A200A250A400A630A
4P
F317378437
M150210270
T365065
C244321
U20253545
W91113
CA101520
X223337,5
1. Installation
4.
3.
Door cut-out for front panel
50.5
20
138
165
Orientation
RecommendedOKOKNO
Ensure that the product is
installed on a at rigid surface.
1
M8 Type ZM8
2
3
630A125A to 400A
Mounting
Removing covers
Max.
0.51 in.
13 mm.
