6LE001012D

ok

–

+

ok

–

+

ok

–

+

z

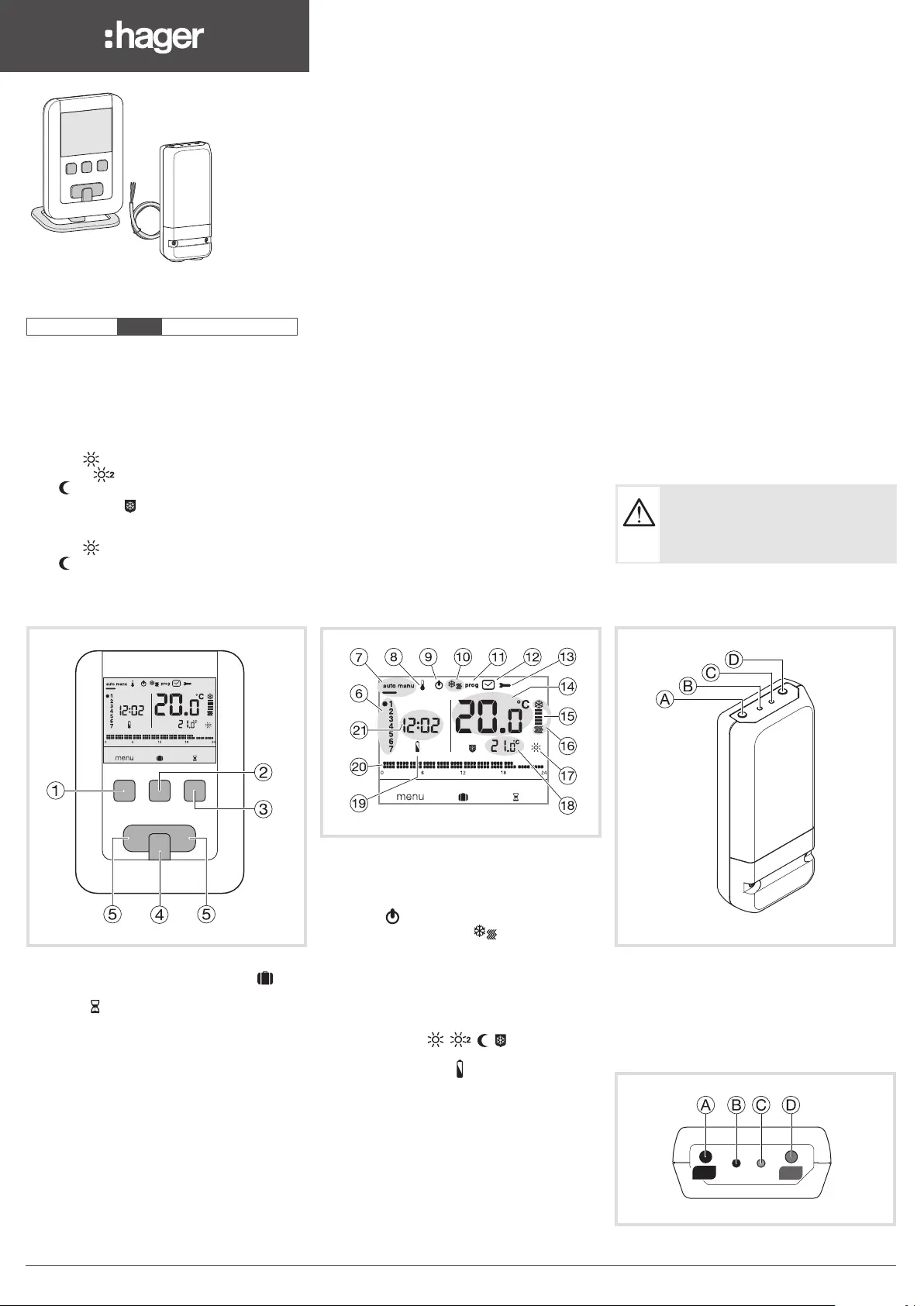

Digital, radio-operated,

programmable ambient thermostat

kit, weekly with wall-mounted

receiver

Thermostat description

This programmable ambient thermostat has been designed to bring you comfort and energy economy.

It is easy to install in your accommodation, where it regulates the ambient temperature in response to

its programs and sends run/stop commands to the wall-mounted receiver installed next to the boiler or

other heat source that is to be controlled.

It enables your heating installation to be programmedand regulated at four temperature levels:

- Comfort

: this is the temperature you desire during the hours you are present.

- Comfort 2

: 2nd temperature level that you desire during the time you are present.

- Eco

: this is the temperature you desire during short absences or at night.

- Frost protection

: this is the guaranteed minimum temperature during your prolonged absences.

It protects your accommodation against the dangers of frost.

It also enables you to program and regulate your air conditioning at 2 temperature levels:

- Comfort

: this is the temperature you desire during the hours you are present.

- Eco

: this is the temperature you desire during short absences or at night.

Thermostat description

ok

–

+

ok

–

+

ok

–

+

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

21

17

18

19

20

1Context key for menu access

2 Context key for mode access holidays

3 Context key for access to the temporary

override

4Confirmation key OK

5Adjustment keys + and -

6 Indicator for days of the week

7Automatic mode/manual mode (thermostat

without program)

8 Temperature settings adjustment

9 Standby

A Heating/Air-con selector

Z Programming/program selection

E Adjustment of the time and date

R Adjustment of settings

T Ambient temperature

Y Heating or air conditioning indicator

U Current mode (heating or air conditioning)

I Current setting (

, , , )

O Temperature of current setting

P Battery use indicator

Q Profile of today’s program

S Current time

Description of the wall-mounted

receiver

The wall-mounted receiver is easily and discreetly

installed close to the boiler.

It receives run/stop commands from the ambient

thermostat EK560 and transmits these to the boiler

via a wired output.

Wall-mounted receiver description

vue 30-30°

APush-button operation T

BOperating indicator.

This lamp is illuminated when the receiver

output contact is closed = ON.

CCoding indicator. This lamp flashes during

coding operations.

DBouton configuration R

fct

cfg

fct

LED

cfg

LED

LED

fct

cfg

fctcfg

EK560

16LE001012D

The transmitter + receiver assembly is

paired in the factory and is, therefore,

immediately ready to use.

It is not useful to reconfigure

the radio links.
