talento 111 SK01.28.1001.1

talento 211 SK02.28.1001.1

Service address/Hotline

Service address

Grässlin

Zeitschalttechnik GmbH

Leopoldstraße 1

78112 St. Georgen

GERMANY

Tel. +49 7724 933-0

Fax +49 7724 933-240

[email protected]

Hotline

Tel. + 49 7724 933-500

[email protected]

www.graesslin.de

ENGLISH

307643

1

C1

23LN

N

L

L

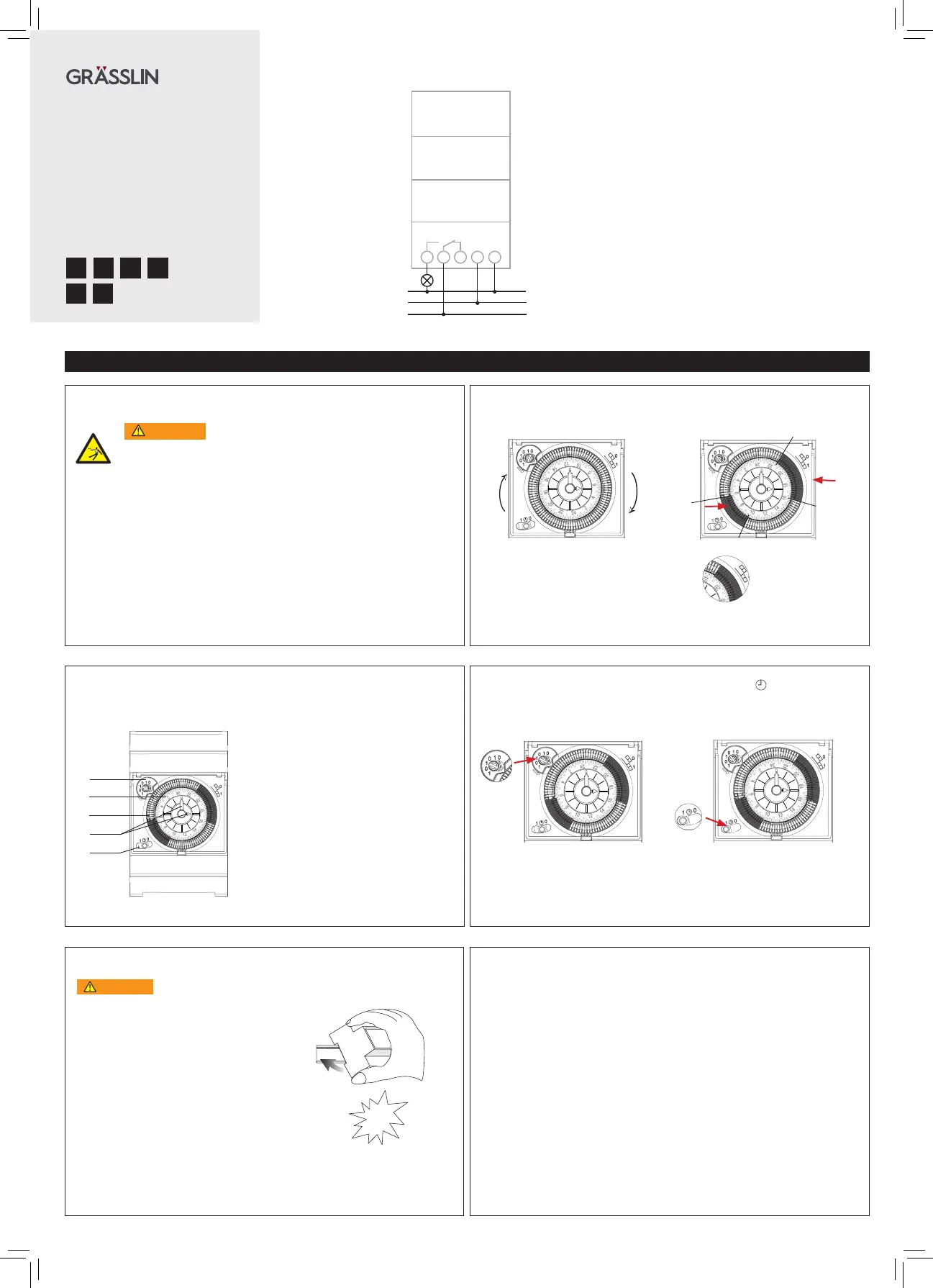

Basic safety instructions

Designated use

• The time switch can be used for lighting, ventilation, fountains,

advertising hoardings etc.

• Only for use in closed, dry rooms

• Installation on DIN top hat rail

• The switching of any external wire is permitted, switching of SELV is not

permitted.

Disposal

Dispose of device in environmentally sound manner

Danger of death through electric shock or fire!

 Installation should only be carried out by a qualified electrician!

WARNING

e.g. 6:15–9:45; 16:15–21:15 ON

Set timeSet switching times

Description

Switching pre-selection/manual

setting

Program timing disc

Switching segments (1 = 15 mins)

Hand for setting time (hours and

minutes) can be adjusted anti-

clockwise and clockwise; turn

minute hand firmly to left

Three way switch:

Permanent ON – AUTO –

Permanent OFF

in advance 3:00 ON (= 1)

Set manual operation/

switching pre-selection

Set 1 – – 0 permanent

switching

1 = Permanent ON

0 = Permanent OFF

9:45

6:15

16:15

21:15

(1 = 15 min)

= 1

1

!Do not turn at the switching disc!

Set the times only with the clock

hand!

Connection/installation

Warning, danger of death through electric

shock!

 Must be installed by qualified electrician!

 Disconnect power source!

 Cover or shield any adjacent live com-

ponents.

 Ensure device cannot be switched on!

 Check power supply is connected!

 Earth and bypass!

for talento 211 SK only

 Quarz movement only starts in a few

minutes after power is switched on.

 Full power reserve is achieved after approx.

5 days.

WARNING

talento 111 SK talento 211 SK

Operating voltage: 230 V~, +10 %/-15 % 50 Hz 110–230 V~, 50–60 Hz

Power consumption: max. 1 VA max. 1 VA

Contact: two-way switch two-way switch

Switching capacity:16 A, 250 V~, cos ϕ = 1 16 A, 250 V~, cos ϕ = 1

8 A, 250 V~, cos ϕ = 0,6 8 A, 250 V~, cos ϕ = 0,6

Switching capacity min.: 24 V/100 mA AC 24 V/100 mA AC

Incandescent lamp load:1100 W 1100 W

LED lamps: < 2 W: 20 W < 2 W: 20 W

> 2 W: 180 W > 2 W: 180 W

Perm. ambient temperature: –20 °C –20 °C

Protection class: II in acc. with EN 60730-1 for II in acc. with EN 60730-1 for

designated installation designated installation

Protection rating: IP 20 in accordance with EN 60529IP 20 in acc. with EN 60529

Time accuracy: synchronised with mains ≤ ±1 s/s day at +20 °C

Power reserve: – – R 3 d (230 V), R 1,5 d (110 V)

Pollution degree: 2 2

Rated impulse voltage: 4 kV 4 kV

Type: 1 BRTU 1 BSTU

Technical Data

click

TH 35-7,5

(DIN EN 60715)











Analog-Zeitschaltuhr 24 h

Analogue time switch 24 h

Minuterie analogique 24 h

Interruttore orario analogico 24 h

Reloj programador analógico 24 h

Analoge schakelklok 24 h

ENDEFRIT

ESNL
