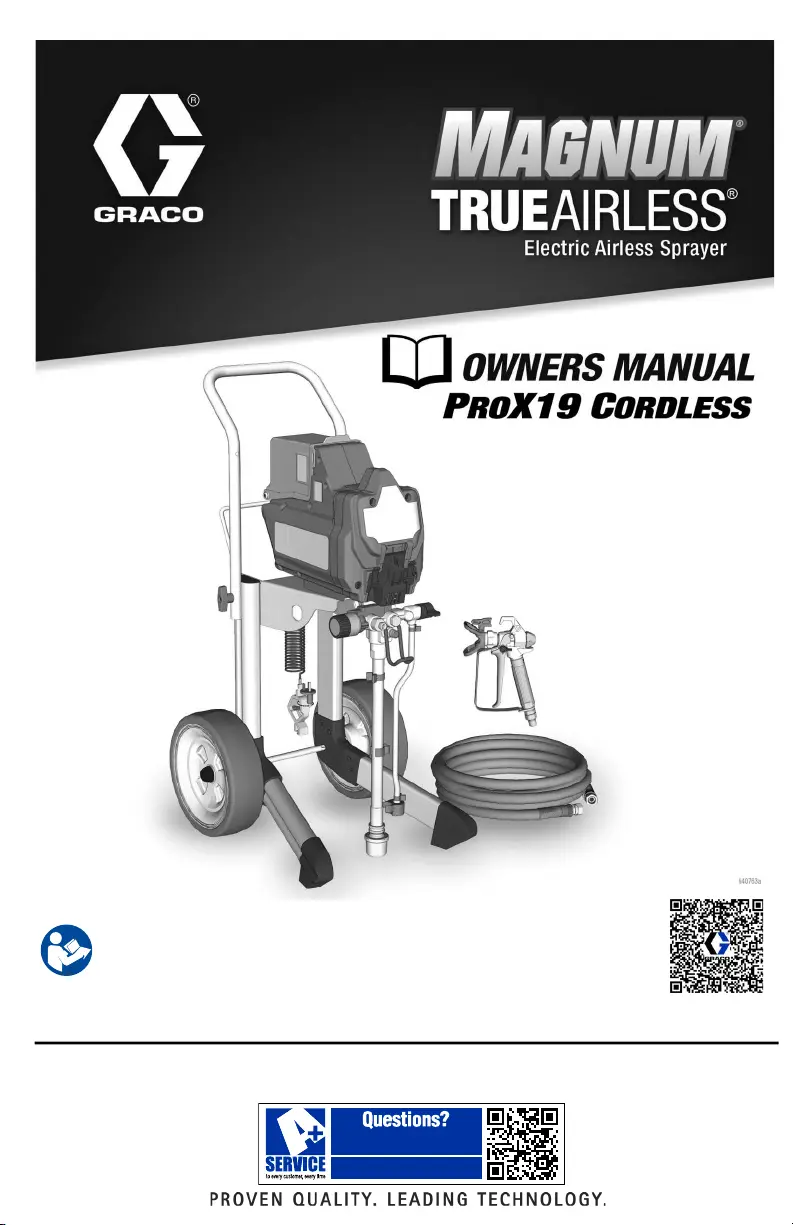

3A9019C EN
Important Safety Instructions
Read all warnings and instructions in this manual, related manuals, and on the
unit, before using the equipment. Be familiar with the controls and the proper
usage of the equipment. Save these instructions.
888-541-9788
http://magnum.graco.com/magop/
Magnum Products Operational Videos
http://magnum.graco.com/magop/
For portable spray applications of architectural paints and coatings only.
Not approved for use in explosive atmospheres or hazardous (classified) locations.
Before You Spray
2 3A9019C EN
Before You Spray
Review Warnings for Important Safety Information
Important! Read carefully and practice good safety habits.
Related Manuals
Models
3000 psi (207 bar, 20.7 MPa) Maximum Working Pressure
Online Resources
TheProX19 is compatible with the following DEWALT
® FLEXVOLT 60V batteries:
•DCB606 - 60V/2ah (20V/6ah)
•DCB609 - 60V/3ah (20V/9ah)
•DCB612 - 60V/4ah (20V/12ah)
Related DEWALT Manuals
312830 SG Spray Guns
3A3172 ProXChangeâ„¢ Pump
Charger Voltage
(VAC) Model Cart
120 ProX19
25U478
CAN478
110474
Certified to
CAN/CSA C22.2
No. 68
Conforms to
UL 1450
Visit Our Website: magnum.graco.com
Operational Videos: magnum.graco.com/magop/
Manuals: magnum.graco.com/support/#manuals
Parts Online: magnum.graco.com/partsonline/
Manual Description Region
N463494 DEWALT DCB118 Fast Charger Manual USA/CA
Magnum Products Operational Videos
http://magnum.graco.com/magop/
Contents
3A9019C EN 3
Contents
Before You Spray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Grounding Information . . . . . . . . . . . . . . . . . . . . . . . 4
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Know Your Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ProX19 Cart Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Know Your Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Grounding Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
(Oil-Based or Flammable Materials) . . . . . . . . . . . . . . . . . . . 10
Pails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Battery Installation and Removal . . . . . . . . . . . . . . . . . . . . . 13
Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Flush Storage Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Strain the Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fill Pump (Prime Pump) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fill Gun and Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Refill Paint Pail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Blockages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Spraying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Adjust Pressure Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Spray Pattern Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Spray Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Trigger the Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Aim Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Align Spray Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Spray Tip and Pressure Selection . . . . . . . . . . . . . . . . . . . . . 22
Clear Spray Tip Clog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Spray Tip Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cleanup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Clean from a Pail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cleanup with Power Flush Valve . . . . . . . . . . . . . . . . . . . . . . 27
Clean InstaClean Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Clean the Gun and Gun Filter . . . . . . . . . . . . . . . . . . . . . . . . 29
