Pagina 1/4

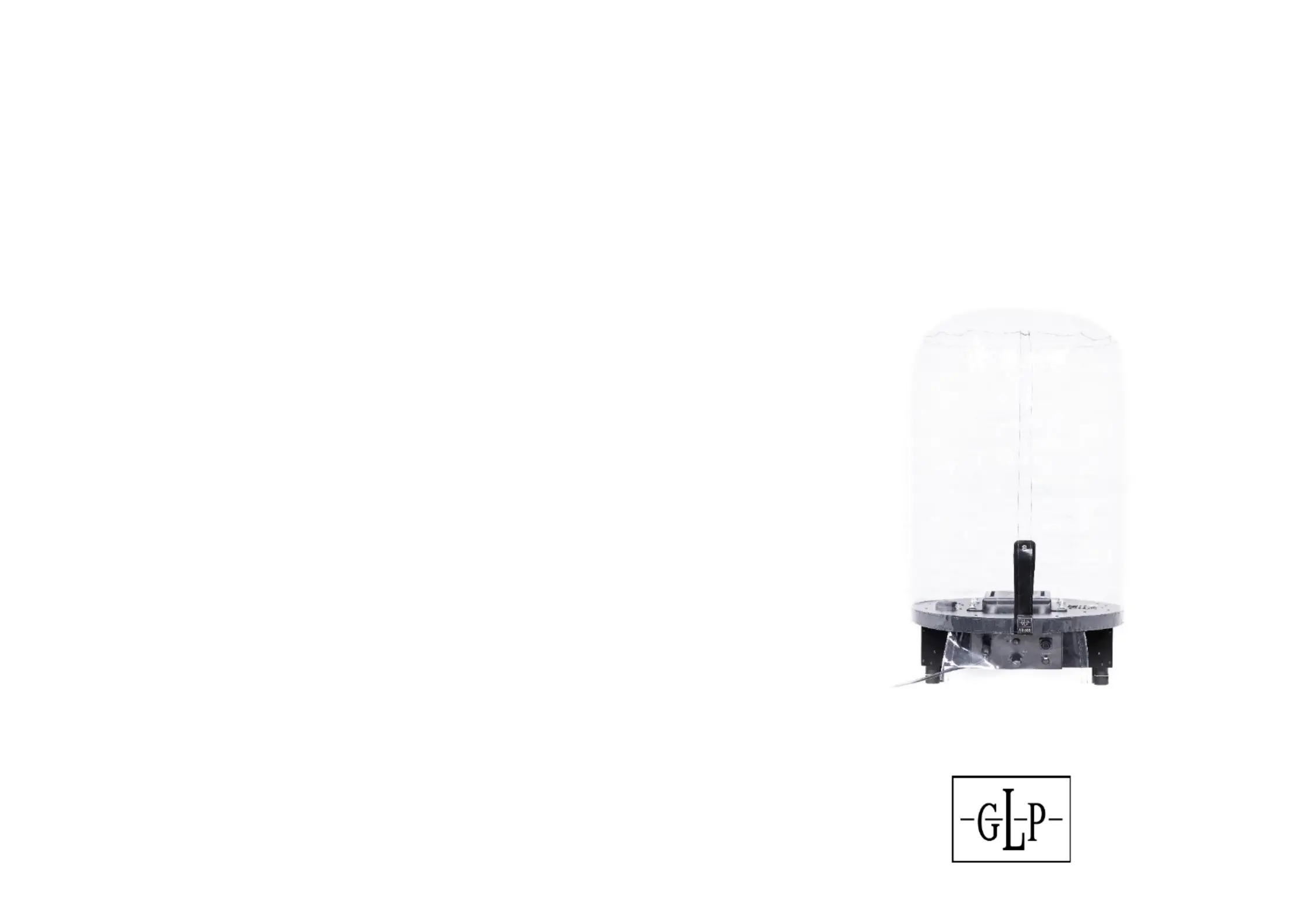

GLP® AirDome User Manual
© 2024 German Light Products GmbH. All rights reserved.
The marks ‘GLP’ and ‘German Light Products’ are trademarks registered as the
property of German Light Products GmbH in Germany, in the United States of
America and in other countries.
The information contained in this document is subject to change without notice.
German Light Products GmbH and all affiliated companies disclaim liability for any
injury, damage, direct or indirect loss, consequential or economic loss or any other
loss occasioned by the use of, inability to use or reliance on the information
contained in this document.
GLP German Light Products GmbH
Industriestr. 2, 76307 Karlsbad
Tel: +49 (0)72 48 / 927 19 0 –
E-Mail: info@glp.de
Internet: www.glp.de
AD 600
BASIC
Revision 20241122-1
U s e r a n d S a f e t y M a n u a l
Service & Support USA:
GLP USA, 16170 Stagg Street,
91406 Van Nuys, California
Tel (USA): +1 818 767 8899
Email support (US):
info@germanlightproducts.com
www.germanlightproducts.com
Service & Support EMEA:
GLP, Industriestrasse 2,
76307 Karlsbad, Germany
Tel. (Germany): +49 7248 9271955
Email: support@glp.de
www.glp.de
AD Basic Plus Revision 20241122-1 AD Basic Plus Revision 20241122-1 600 600
GLP German Light Products GmbH, Industriestr. 2, 76307 Karlsbad GLP German Light Products GmbH, Industriestr. 2, 76307 Karlsbad
Important Information
• Carefully read all documentation before use.
• Use the equipment strictly as instructed in this manual.
• Pay close attention to all notes and symbols on the product.
• Retain this documentation for future reference.
• Provide the documentation to any subsequent users of the equipment.
• Ensure the documentation always remains readily accessible near the
system.
• Follow the instructions in the documentation for any additional
components used.
Electrical Safety Warning
CAUTION!
• Connect the equipment only to a properly grounded safety socket.
• Ensure the corresponding fuse is appropriately sized for the equipment's
requirements.
• Always disconnect the equipment from the power supply completely
before performing installation, cleaning, maintenance, or repairs.
• Do not clean the equipment using running water or by submerging it in
liquid.
Maintenance and Repair
• Do not attempt to repair the equipment yourself. Contact customer
service or your retailer for assistance.
5 Technical data / Dimensions (mm):
IP Rating (without rain cover) IP 20
ith rain cover) 3 (w IP4
5pin XLR wiring (+) = pin 3; (-) = pin 2; (Ground) = pin 1
Weight 12 kg
Maximum load kg 50
Voltage Range 100- VAC, 50/60 240 Hz
Power consumption (W) max. 45 W
General safety information
AD Basic Plus Revision 20241122-1 AD Basic Plus Revision 20241122-1 600 600
GLP German Light Products GmbH, Industriestr. 2, 76307 Karlsbad GLP German Light Products GmbH, Industriestr. 2, 76307 Karlsbad
3 Control panel
1 2 3 4
5 6 7
1. powerCON TRUE1 Input
2. LED control status
3. Service mode switch: I - pressure sensor is on
(red LED flashes)
- pressure sensor is off 0
4. powerCON TRUE1 Output
5. 5pin XLR DMX Input
6. Fan Adjustment regulator
7. 5pin XLR DMX Output
4 Instructions and mounting options
1
1. Keep the air filter (model FE120FI30) clean as needed!
2. 4x Pads for fixing the device on surface or ground
Hot Surfaces
CAUTION!
• Certain parts of the equipment may become hot during operation.
• Ensure children are kept at a safe distance until the equipment has fully
cooled down.
d
Proper Handling
• Modifying the equipment in any way is strictly prohibited.
• Avoid dropping the equipment or subjecting it to significant mechanical
pressure, as this may cause severe damage.
• Conduct regular inspections of the equipment for signs of damage.
o If damage is detected, immediately power off the equipment and
disconnect it completely from the power supply.
o Contact customer service or your retailer for assistance.
Proper Use Guidelines
This equipment is designed exclusively for commercial use. Personal or private
use is strictly prohibited.
Operating Conditions:
• This equipment is suitable for both indoor and outdoor use.
• Do not operate the equipment in extreme weather conditions, including
heavy rain or storms.
Air Totem Usage:
• Maximum permissible height: 5 meters (16 feet).
• Always use fixing pads to ensure stability, especially in windy or rainy
conditions.
Important Notice:
• When operating outdoors, the included rain cover must be used.
• The IP43 protection rating is only guaranteed when the rain cover is
properly installed.
