Advantium
®
Built-In Accessory
Storage Drawer
UXB903SNSS
31-7000068 Rev.0
05-19 GEA
INSTALLATION
INSTRUCTIONS
Español
For a Spanish version of this manual, visit
our Website at cafeappliances.com.
Para consultar una version en español de este manual de instrucciones,
visite nuestro sitio de internet cafeappliances.com.
231-2000356 Rev. 0
Installation Instructions
BEFORE YOU BEGIN
Read these instructions completely and
carefully. Read the Installation Instructions for
the Advantium oven completely and carefully for
cutout dimensions and step-by-step instructions.
IMPORTANT
—
Save these instructions
for local inspector’s use.
IMPORTANT
—
Observe all governing codes and
ordinances.
• Note to Installer
—
Be sure to leave these
instructions with the Consumer.
• Note to Consumer
—
Keep these instructions
with your Advantium Oven Owner’s Manual for
future reference.
• Skill Level — Installation of this appliance
requires basic mechanical and electrical skills.
• Completion Time
—
1 hour with the installation of
an Advantium Oven.
• Proper installation is the responsibility
of the installer. Product failure due to improper
installation is not covered under the warranty.
See Owner’s Manual for warranty information.
•
Proper installation is the responsibility of the
installer.
• Product failure due to improper installation
is not covered under Warranty. See the
Advantium 120V or 240V Oven Owner’s
Manual for warranty information.

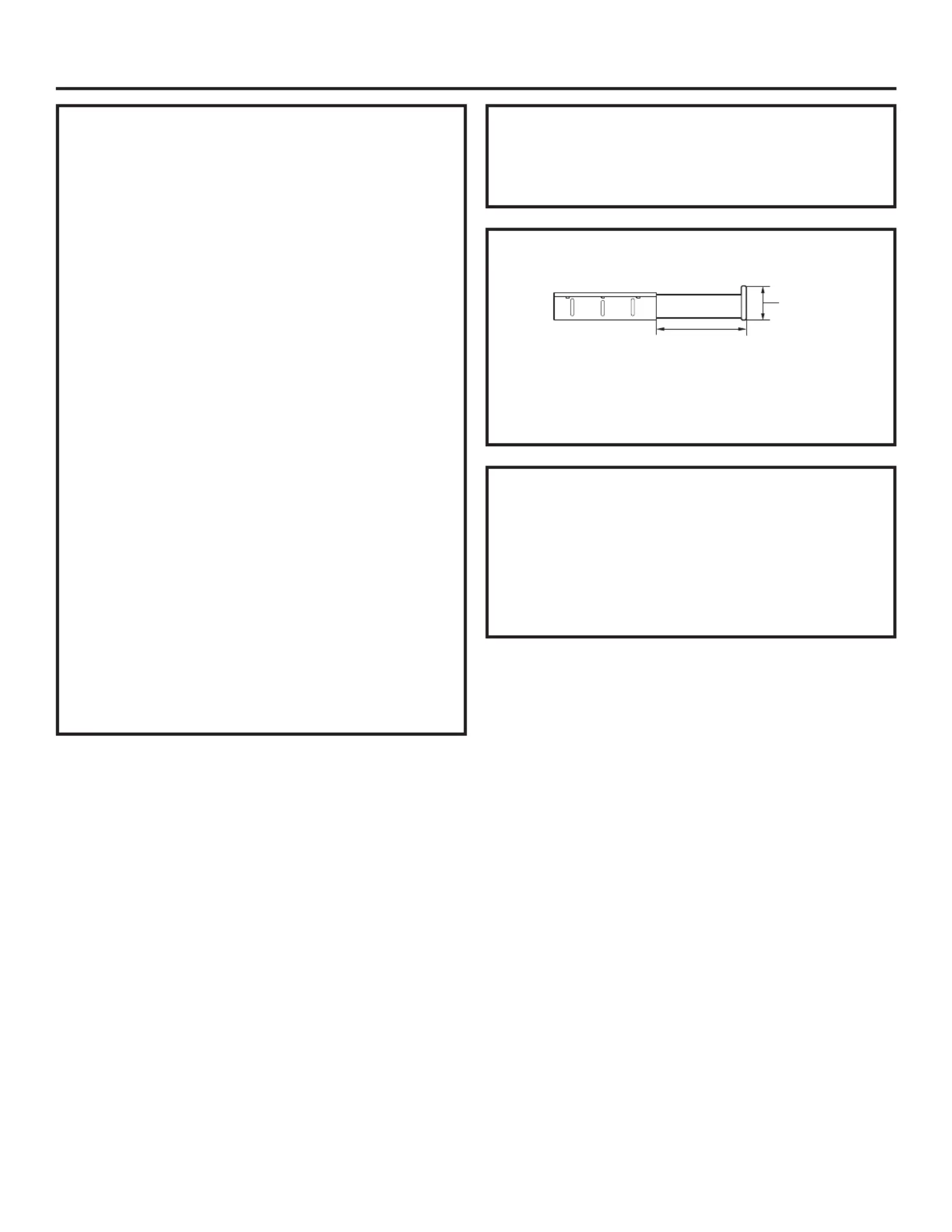

PRODUCT DIMENSIONS AND CLEARANCES
NOTE: Appearance will vary by model
MODELS AVAILABLE
Models:
UXB903SNSS
TOOLS REQUIRED
• #2 Phililips screwdriver
PARTS SUPPLIED
• Side supports (2)
• Screws
• Color-matched screws (5)
5”
Allow 14” Clearance
When Fully Open
31-2000356 Rev.0 3
Installation Instructions
1

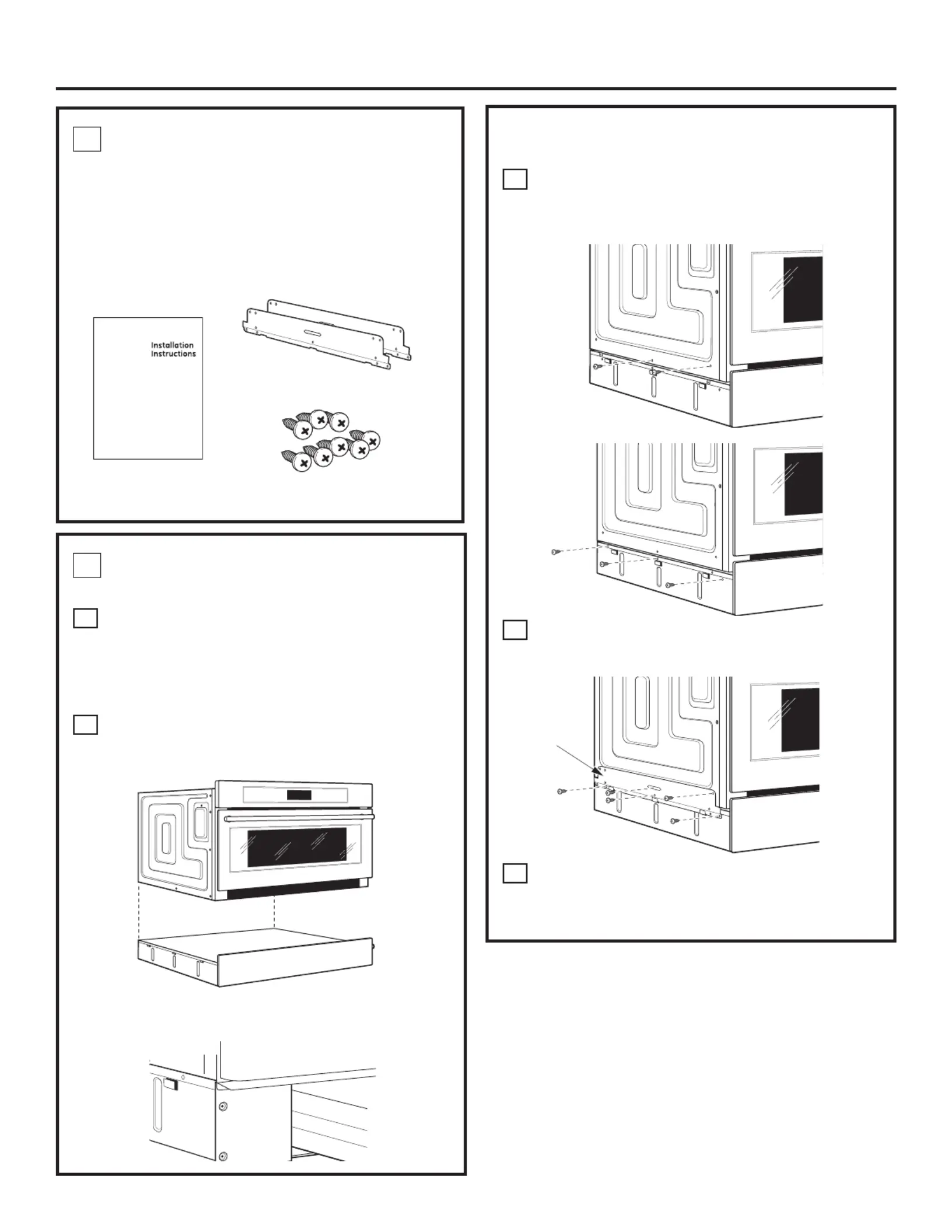

REMOVE PACKAGING AND
PARTS
• Remove the drawer from the carton.
• Remove all packing material and tape.
• Remove screws, which hold the side supports on
top (do not secure again).
• Open the drawer and remove any parts inside.
• Locate parts.
Side Supports (2)
2
ASSEMBLING THE OVEN TO
DRAWER
A
Place storage drawer on a surface with the front
of drawer hanging over the edge of the surface.
Not placing the front edge of drawer over the
edge of the surface may result in damage to the
drawer since the front edge of drawer hangs
below the bottom of drawer.
B
Place the oven on top of the storage drawer.
Make sure that the back and sides of the oven
align with the back and sides of drawer.
NOTE: If necessary, slide the oven forward to
line up flush with the front face of the drawer.
ASSEMBLING THE OVEN TO
DRAWER (cont.)
C
Remove the front bottom screw and center
bottom screw on each side of the oven, and
remove the top front, top center, and top back
screw on each side of the storage drawer
D
Place the side supports into the tabs on the
drawer and secure using the screws supplied
and the screws removed in Step C.
The oven and storage drawer assembly is now
ready to be installed. Return to the Advantium
Built-In Wall Oven Installation Instructions to
complete the installation.
Side
Support
Installation
Instructions
Screws (2 sets)
E
