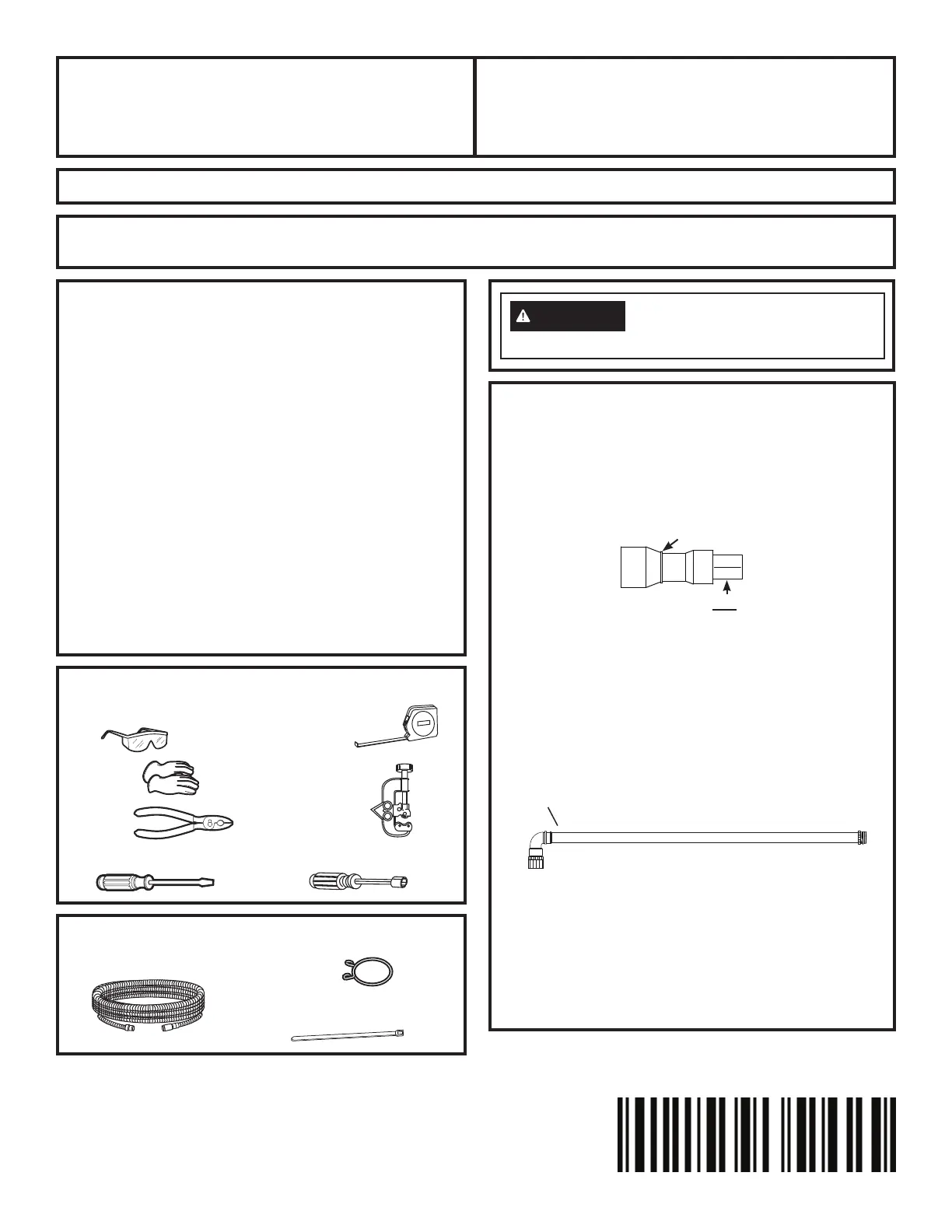

TOOLS YOU WILL NEED

Ŷ

Ŷ

Gloves

Ŷ

Ŷ

Safety Glasses

Ŷ

Ŷ

Tubing Cutter

Ŷ

Ŷ

Measuring Tape

Ŷ

Ŷ

6' Drain Hose

CONTENTS

Ŷ

Ŷ

Pliers

Ŷ

Ŷ

Drain Hose Hangers

Ŷ

Ŷ

Hose

Clamps

CONNECT DRAIN LINE

TOTAL DRAIN HOSE LENGTH MUST NOT EXCEED

16’ FROM THE REAR OF THE DISHWASHER FOR

PROPER DRAIN OPERATION.

Ŷ

The molded end of the drain hose will fit 5/8” through

1” diameter inlet ports on the air gap or waste tee.

Ŷ

Determine size of inlet port. If required, cut drain

hose connector on the marked line, to fit the inlet

port.

Ŷ

Replace the provided uni-couple drain hose with the

6’ long hose which can be connected directly to the

waste tee or to the high drain loop attached to the

waste tee.

NOTE: Air gap must be used if waste tee or disposer

connection is less than 18” above floor to prevent

siphoning unless the unit is above the connection to

the waste tee or disposer connection.

Ŷ

Complete the installation by following the Installation

Instructions that came with your dishwasher.

1”

5/8”

IMPORTANT: Do not cut

this portion of hose.

Cutting Line

Dishwasher

Connection

House

Drain Hose on

Dishwasher

Ŷ

Ŷ

Flat-blade screwdriver

Ŷ

Ŷ

Nutdriver and 1/4" Socket

012050721631-4000302 Rev 105-25

Disconnect power before

installing. Failure to do so could

result in serious injury or death.

WARNING

Questions? Call 833-4BODEWELL (833-426-3393) or visit our Website at: GEAppliances.com

In Canada, call 1.800.561.3344 or visit our Website at: GEAppliances.ca

Drain Hose Kit

PCDDR01KIT

Installation

Instructions

ENGLISH / FRANÇAIS / ESPAÑOL

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•IMPORTANT– Save these instructions for

local electrical inspector’s use.

•IMPORTANT – Observe all governing

codes and ordinances.

•IMPORTANT – This kit is intended to

be used only with PZF560 Series Profile Compact

Dishwashers - See the Owner’s Manual for details.

• Note to Installer – Be sure to leave these

instructions with the Consumer.

• Note to Consumer – Keep these instructions for

future reference.

• Installation must be performed by a qualified installer.

• Proper installation is the responsibility of the installer.
