Pagina 1/16
www.furuno.com
All brand and product names are trademarks, registered trademarks or service marks of their respective holders.
Installation Manual
NETWORK FISH FINDER
Model DFF3-UHD
A Word to the Owner of the DFF3-UHD
Congratulations on your choice of the FURUNO DFF3-UHD Network Fish Finder. The DFF3-UHD is a net-
work fish finder designed for use with the NavNet TZtouch3 (TZT9F/12F/16F/19F, Ver. 3.01 or higher) and
NavNet TZtouch2 (TZT2BB only, Ver.9.01 or higher). Please carefully read and follow the recommended
procedures for installation and maintenance. Thank you for considering and purchasing FURUNO.
Operational Cautions
• A separate power supply is required. Take the power from the ship's mains via the ship's switchboard.
• The DFF3-UHD is not turned off when the multi function display is powered off. The DFF3-UHD's standby
power is 6.2 W, so turn it off from the ship’s switchboard when it is not in use.
• DFF3-UHD does not support the Bottom Discrimination, RezBoost, or ACCU-FISH.
• Do not transmit with the transducer out of water, to prevent damage to the transducer.
• Use the multi function display program version of the poweto change the r amp. Contact FURUNO for
information on how to upgrade program version.
• When using two types of transducers, set them from [Fishfinder]-[Transducer Setup]-[Transducer Setup]-
[Type] of the NavNet TZtouch3 and NavNet TZtouch2. Because the equipment has only one TDID port,
two TDIDs cannot be read.
• The following concern acts as our importer in Europe, as defined in DECISION No 768/2008/EC.
- Name: FURUNO EUROPE B.V.
- Address: Ridderhaven 19B, 2984 BT Ridderkerk, The Netherlands
• The following concern acts as our importer in UK, as defined in SI 2016/1025 as amended SI 2019/470.
- Name: FURUNO (UK) LTD.
- Address: West Building Penner Road Havant Hampshire PO9 1QY, U.K.
Safety Instructions
The installer must read the safety instructions before attempting to install the equipment.
CAUTION
Observe the following compass safe
distance to prevent interference to a
magnetic compass:
Standard compass Steering compass
0.35 m 0.3 m
Do not disassemble or modify the
equipment.
Fire, electrical shock or serious injury
can result.
Use the proper fuse.
Use of a wrong fuse can damage the
equipment and may cause fire.
WARNING
WARNING
Warning, Caution
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided,
could result in minor or moderate injury.
CAUTION
Prohibitive Action
Mandatory Action
12VDC 24VDC
7.5 A 7.5 A
ᩥ䛾ഛせ㡿᭩ 䠄㻵㻹㻶㻙㻞㻜㻠㻝㻜㻙㻖䠅
䜢ᙜ♫ 㻴㻼 䛷බ㛤䛧䛶䛔䜎䛩䚹 ᕥグ䛾
ḟඖ䝁䞊䝗䛛䜙䜰䜽䝉䝇䛧䛶䛟䛰䛥䛔䚹
2
Equipment List
Option
CE/UKCA Declaration
With regards to CE/UKCA declarations, please refer to our website (www.furuno.com) for further informa-
tion about RoHS conformity declarations.
Disclosure of Information about China RoHS
With regards to China RoHS information for our products, please refer to our website
(www.furuno.com).
Installation
Select the mounting location considering the following points.
• Locate the unit away from areas subject to water splash.
• Select a location that is well ventilated.
• Observe the compass safe distances shown on page 1.
• Leave the sufficient service clearance around the unit.
Name Type Code No. Qty Remark
Network Fish Finder DFF3-UHD - 1
Installation Materials CP02-09900 000-038-530 1 - FRU-3P-FF-A002M-001
(Cable assembly, 001-197-
092-10)
- MOD-Z071-050+ (LAN ca-
ble, 001-167-890-10)
- CP02-09901 (EMI core
and Self-tapping screw,
001-621-550)
Name Type Code No. Qty Remark
Extension Cable C425 30M 001-679-410 1 For tank w/transducer
(CM265LH, CM265LM,
CM599LH, CM599LM,
PM111LH, PM111LM,
CM275LH-W)
C425 50M 001-679-420 1
C334 30M 000-190-456 1 For thru-hull transducer.
LAN Cable MOD-Z072-020+ 000-167-175 1 2 m
MOD-Z072-100+ 000-167-177 1 10 m
Transducer PM111LHG 000-027-404 1 2 kW 38-75/130-210 kHz
CM599LHG 000-027-406 1 2 kW 28-60/130-210 kHz
Thru-Hull Pipe TFB-7000(1) 000-022-532 1
AC/DC Power Supply Unit PR-241 - 1
Ferrite Core OP86-11 001-594-450 1 For PR-241
3

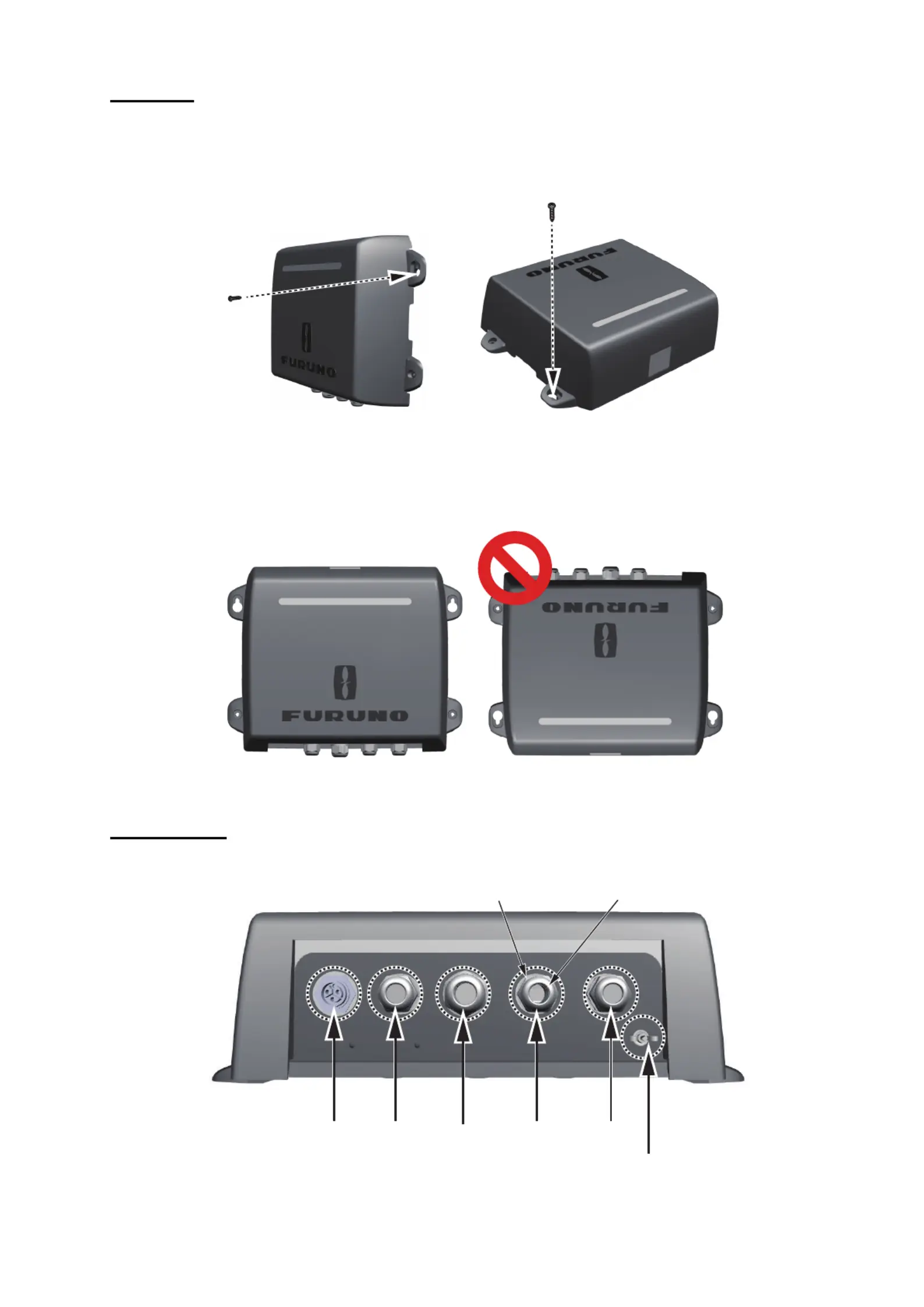

Procedure
1. Drill four pilot holes in the bulkhead (or tabletop) for the self-tapping screws.
2. Screw two self-tapping screws (φ5x20) into the pilot holes for upper, leave 5 mm protruding.
3. Set unit onto the screws and fasten them.
4. Tightly fasten the other two screws to fix the unit in place.
Note: For mounting on a bulkhead, the connectors must face downward.
Wiring
Wiring Outline
The figure below shows the inserting position of each cables for the DFF3-UHD. Refer to the interconnection
diagram for details.
Inserting position of cables
Tabletop mount
Bulkhead mount
OK
NO
POWER
EXT-KP
NETWORK
Transducer
Grounding terminal
Transducer
Seal nut
Super gland
