Pagina 1/10

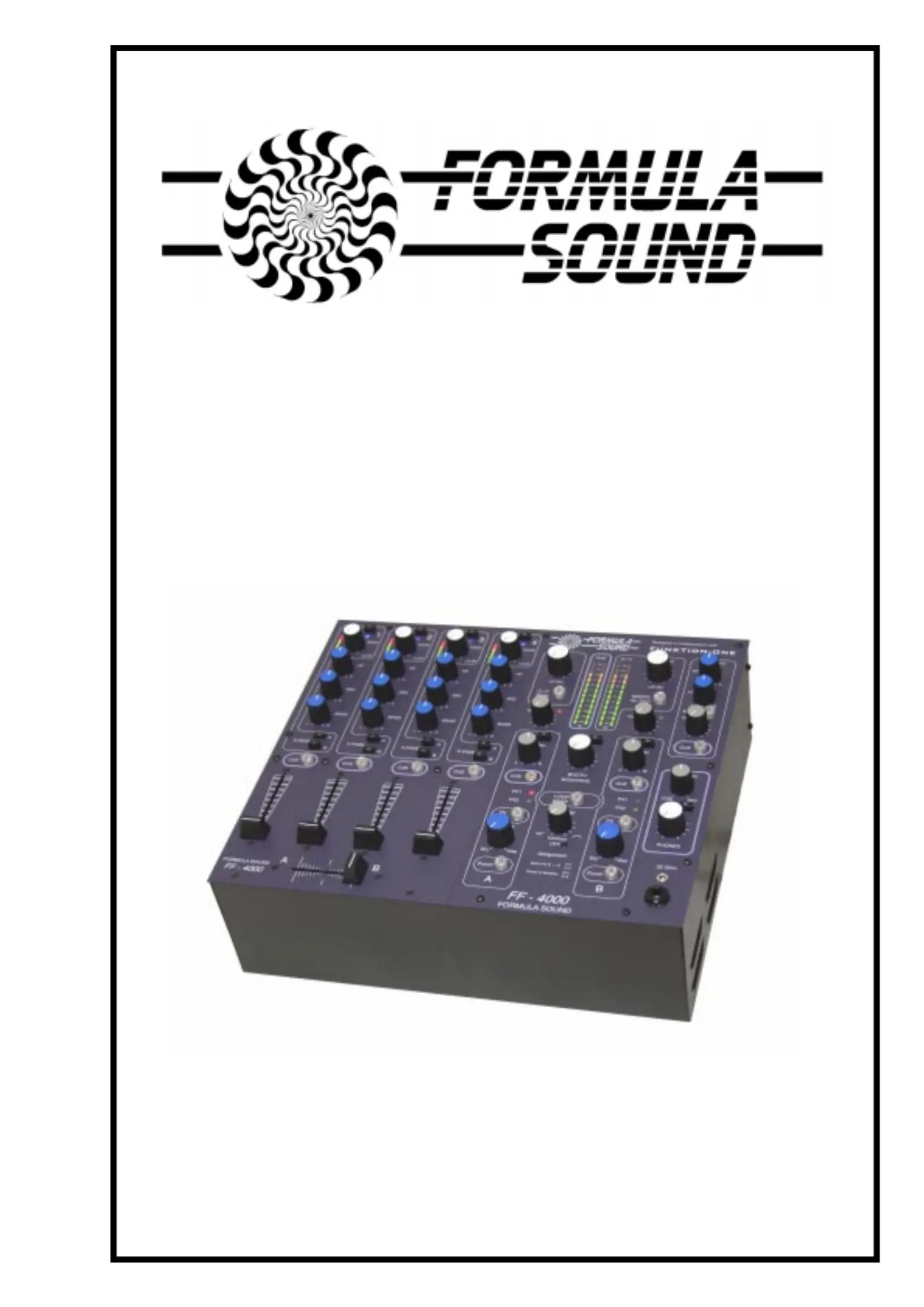

FF - 4000
DUAL FORMAT DJ MIXER
USERS MANUAL
FF - 4000 INTRODUCTION
The features and layout of the FF-4000 were determined in collaboration with leading
loudspeaker manufacturers Funktion One, who canvassed many DJs world wide on their
requirements. The result is a mixer which is not only of the highest sound quality, as you
would expect from Formula Sound, but also incorporates the features and layout which DJs
have asked for.
Although the FF-4000 is a fixed format design the use of individual circuit cards per channel,
PTH circuit boards, and all rotary controls securely mounted to the front panel, improve reliability
and aid servicing should the need arise.
A rear printed polycarbonate overlay to the top panel ensures that this mixer will still look good
after many years of use and notation will never rub off.
The FF-4000 is essentially a five channel mixer. Four of these channels are laid out to the left of
the master section and the fifth is a dedicated microphone channel labelled ‘Console Mic’
positioned to the right of the master section
The four channels are each switchable to two input sources. Channels 1 and 2 are switchable
between low impedance microphone and a stereo line input. Phantom power is available for
microphones (internal selection).
Channels 2 to 4 are switchable between a stereo line input and a phono (RIAA) or line input.
(Phono/line selection is via a concealed push switch accessible through a hole in the rear panel).
These 4 input channels are fully assignable to the crossfader, and feature specially designed
three band equalisation with a range of +5dB to -23dB.
Gain trims are provided for all inputs accessible through the rear panel, as well as a front panel
gain control. An adjacent 5 segment led meter and clip warning indicator provide signal present
indication and overload warning. Illuminated push switches control input selection, channel routing
and cue, etc. Different shapes and sizes of push buttons along with colour coded illumination
help to easily identify control functions .
Removable Fader Panel
The fader panel mounted beneath the 4 input channels is removable and available with either
linear or rotary faders. This provides for easy removal and replacement of all faders which are
all connected by gold plated connectors. A screwdriver is the only tool required to replace a fader
or change the mixer from a linear to rotary fader operation.
Smooth feel Alps 60mm faders which are arranged to eliminate the ingress of dirt are used for
the linear fader option and superior quality rotary faders are used for the rotary option.
1
Master Section Overview
Main and Zone outputs are available in stereo, along with a separate mono output. All these
outputs are balanced on XLR connectors. Booth monitors output is available in stereo or
switchable to mono and again these outputs are balanced on XLR connectors.
A recording output is provided on gold plated phono sockets.
There are 3 insert loops provided. 1 & 2 are selected via the X-fade assign buttons and feature
latching and punch selector buttons along with wet / dry mixing control and gain trims. Mono and
cue switches are fitted to both sections. There is also an illuminated loop swap button that allows
the connected effects processors to be swapped over to the other channel.
The third effects loop is connected to the main output chain. This is selected by an illuminated
push button.
All effects loop connectors are pairs of 3 pole jacks, each socket providing send and return
paths.
Visual metering is by 2 twin 12 segment led VU meters; one for cue signals and one for output
signals.
Comprehensive headphones monitoring is provided featuring a powerful stereo headphones
amplifier.
6.5mm and 3.5mm stereo jacks are provided.
A split cue switch and monitor balance control are fitted.
The Console Microphone channel is located above the phones section and features two band
equalisation, volume control, illuminated on-off switch and cue button.
Dimensions (Exc. Knobs & connectors):
Width 350mm (13.78) Height 312mm (12.25") Depth 110mm (4.33")
Power Supply
The Mixer has a fully regulated internal power supply that is designed to operate on
220-240Vac or 110-120Vac. Selection is by an internal switch that is accessed by removing the
fader panel.
DAMAGE MAY RESULT IF THE UNIT IS CONNECTED TO THE WRONG
SUPPLY VOLTAGE.
Fuses
Mains fuse sizes are 800mA anti-surge for 220-240Vac and 1.5A anti-surge for 110-120Vac
operation.
It is important for safety reasons that the correct fuse sizes are always
used.
2
