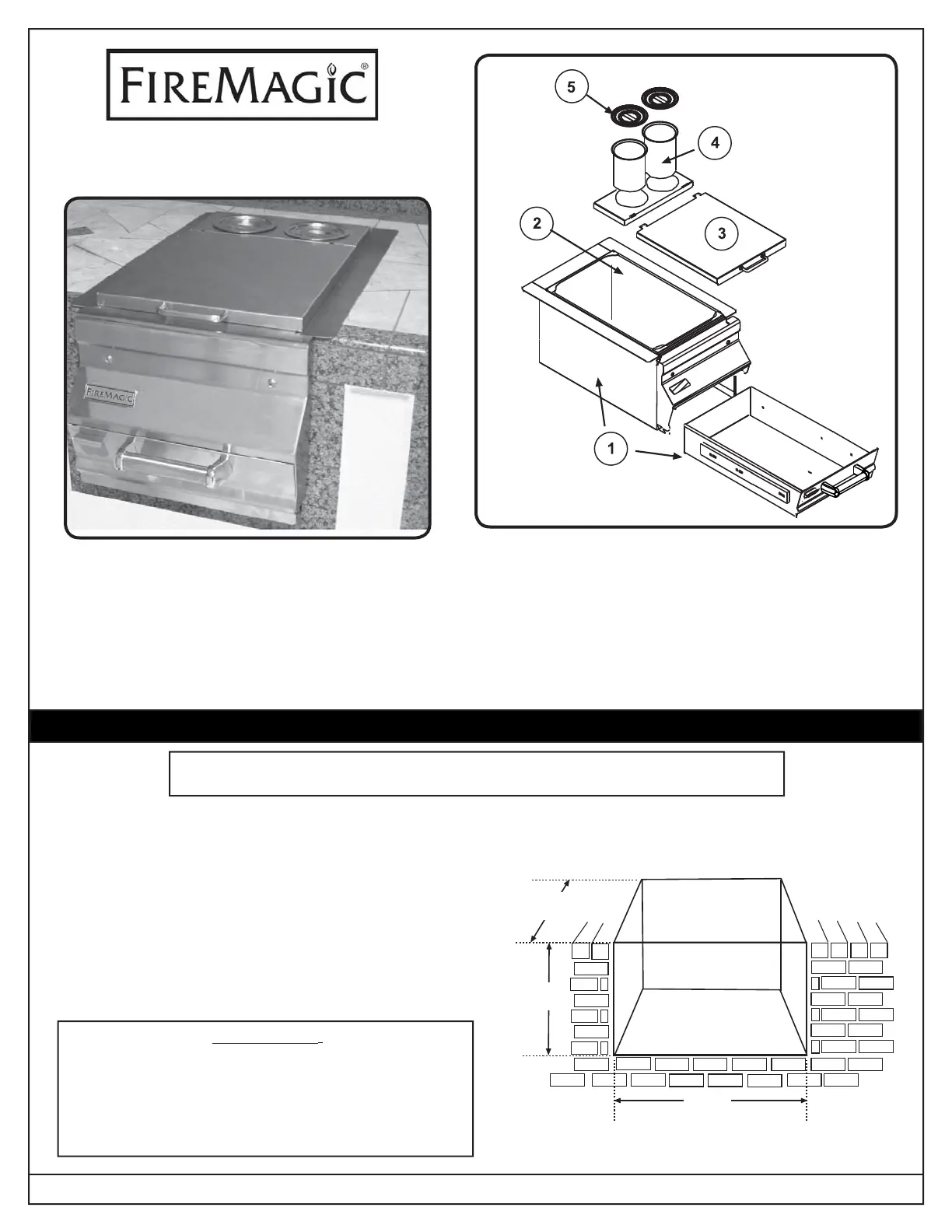

BAR CADDY

INSTALLATION INSTRUCTIONS

Robert H. Peterson Co. • 14724 East Proctor Avenue, • City of Industry, CA 91746

INSTALLATION OPENING:

Front to Back Depth 22-3/4 "

Width 14-1/4", Height 12"

SLIDE-IN MODEL #1D-S0

Shown with cover in place and

optional trim kit (part #3807)

1. 1D-S-05 Drawer (1)

2. 1D-S-09 Splash pan 21"x 13"x 6" (1)

3. 1D-S-06 Cover (1)

4. 1D-S-03 Condiment/bottle holder (with cap) (2)

5. 1D-S-08 Condiment/bottle holder cap (2)

6. 1D-S-04 Insulation (not shown) (5)

BEFORE INSTALLATION, CHECK

THAT YOU HAVE ALL OF THE

PARTS AS LISTED TO THE RIGHT.

Before installation, ensure the opening dimensions

are correct (Fig. 1). Then simply slide the bar caddy

assembly into place in the cut-out area. Place the 5

pieces of insulation inside the caddy, on the bottom

and against the sides. Place the splash pan inside

the caddy, and put the caddy top and cover in place.

Insert the holder pans and their pan lids.

It is now ready for use.

TO USE AS A FOOD WARMER, SEE REVERSE.

Fig. 1.

Cut out dimensions for bar caddy

NOTICE TO INSTALLER: Please leave these instructions with the consumer.

NOTICE TO CONSUMER: Please retain for future reference.

Improper installation, adjustment, alteration, service

or maintenance can cause injury or property damage.

Refer to this manual. For assistance or additional

information consult a qualifi ed, professional installer

or service agency.

WARNING

14 1/4"

width

12"

height

22 3/4"

depth
