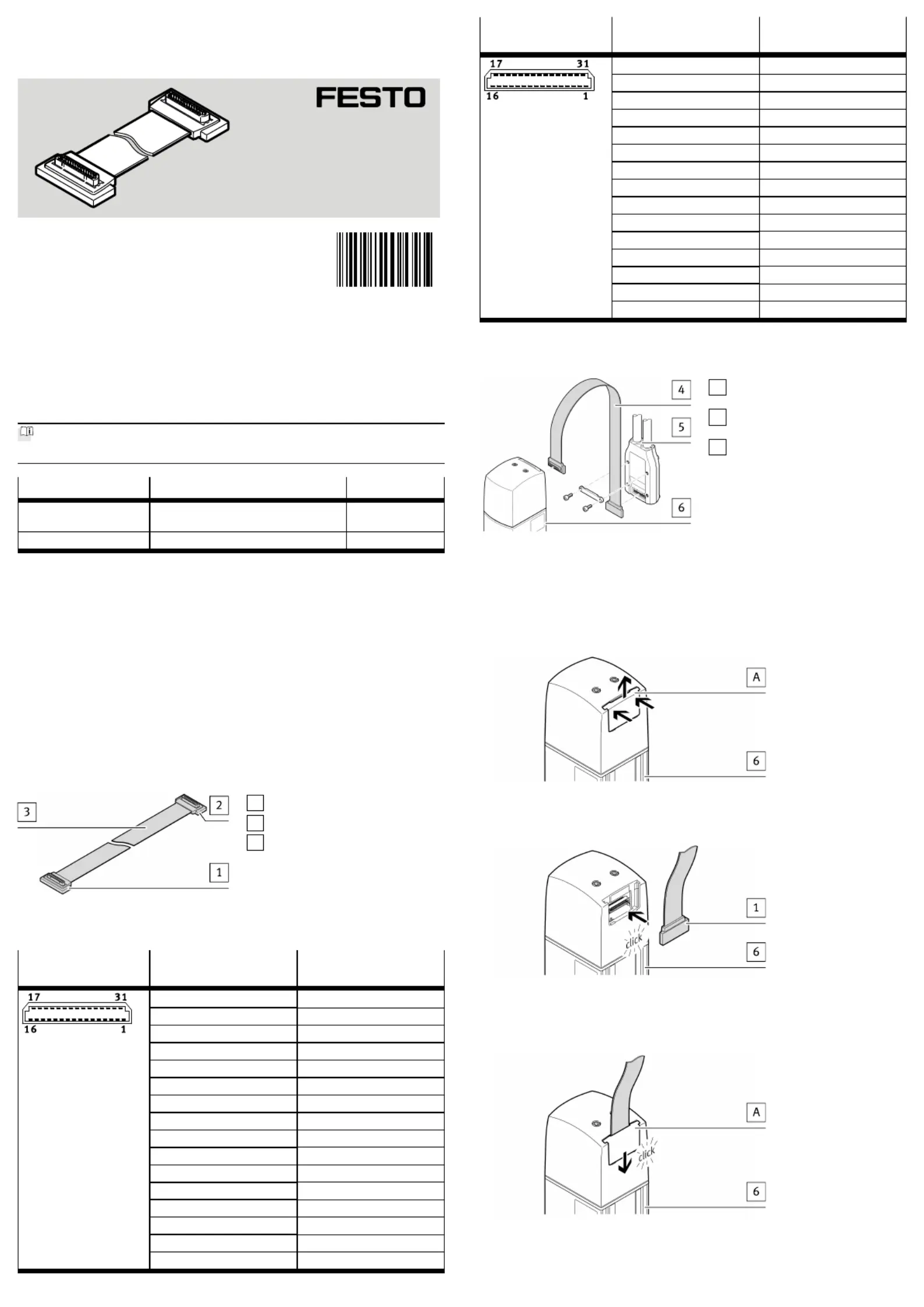

Translation of the original instructions
1 Applicable documents
All available documents for the product www.festo.com/pk.è
Document Product Contents
Instructions Motor cable
NEBM-SF1W31-EH-...-Q15...-LE...
Assembly
Instructions Rotary gripper module EHMD-40 Operating
Tab. 1
2 Safety
2.1 Safety instructions
– Do not connect or disconnect plug connector when powered.
– Only assemble the product on components that are in a condition to be safely
operated.
2.2 Intended use
Connection of the rotary gripper module EHMD-40 with a motor cable NEBM-
SF1W31-EH-...-Q15...-LE...
3 Product overview
3.1 Configuration
3.1.1 Product design
1Socket design F1
2Socket design F1
3Ribbon cable
Fig. 1
3.1.2 Contact assignment
Field device side/
Controller side
Electrical connection1
Pin
Electrical connection2
Pin
1 16
2 15
3 14
4 13
5 12
6 11
7 10
8 9
9 8
10 7
11 6
12 5
13 4
14 3
15 2
16 1
Field device side/
Controller side
Electrical connection1
Pin
Electrical connection2
Pin
17 31
18 30
19 29
20 28
21 27
22 26
23 25
24 24
25 23
26 22
27 21
28 20
29 19
30 18
31 17
Tab. 2 Contact assignment
3.2 Function
4Motor cable
NEBM-F1W31-XC-...-DF1W31
5Motor cable
NEBM-SF1W31-EH-...-Q15...-LE...
6Rotary gripper module EHMD-40
Fig. 2
The motor cable is flexible and offsets the movements of the Z-axis of the4
rotary gripper module .6
4 Mounting
4.1 Assembly, field device side
Fig. 3 Remove cover
• Remove cover[A] Instruction manual for rotary gripper module .è6
Fig. 4 Connect motor cable
• Connect the socket to the plug on the rotary gripper module .1 6
ÄConnector lock clicks into place.
Fig. 5 Relieve strain on the push-in connector
• Put on the cover[A] and lock into place Instruction manual for rotary grip-è
per module .6
8103358
NEBM-F1W31-XC-...-DF1W31
Motor cable
8103358
2018-11a
[8103360]
Instructions|Assembly
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com

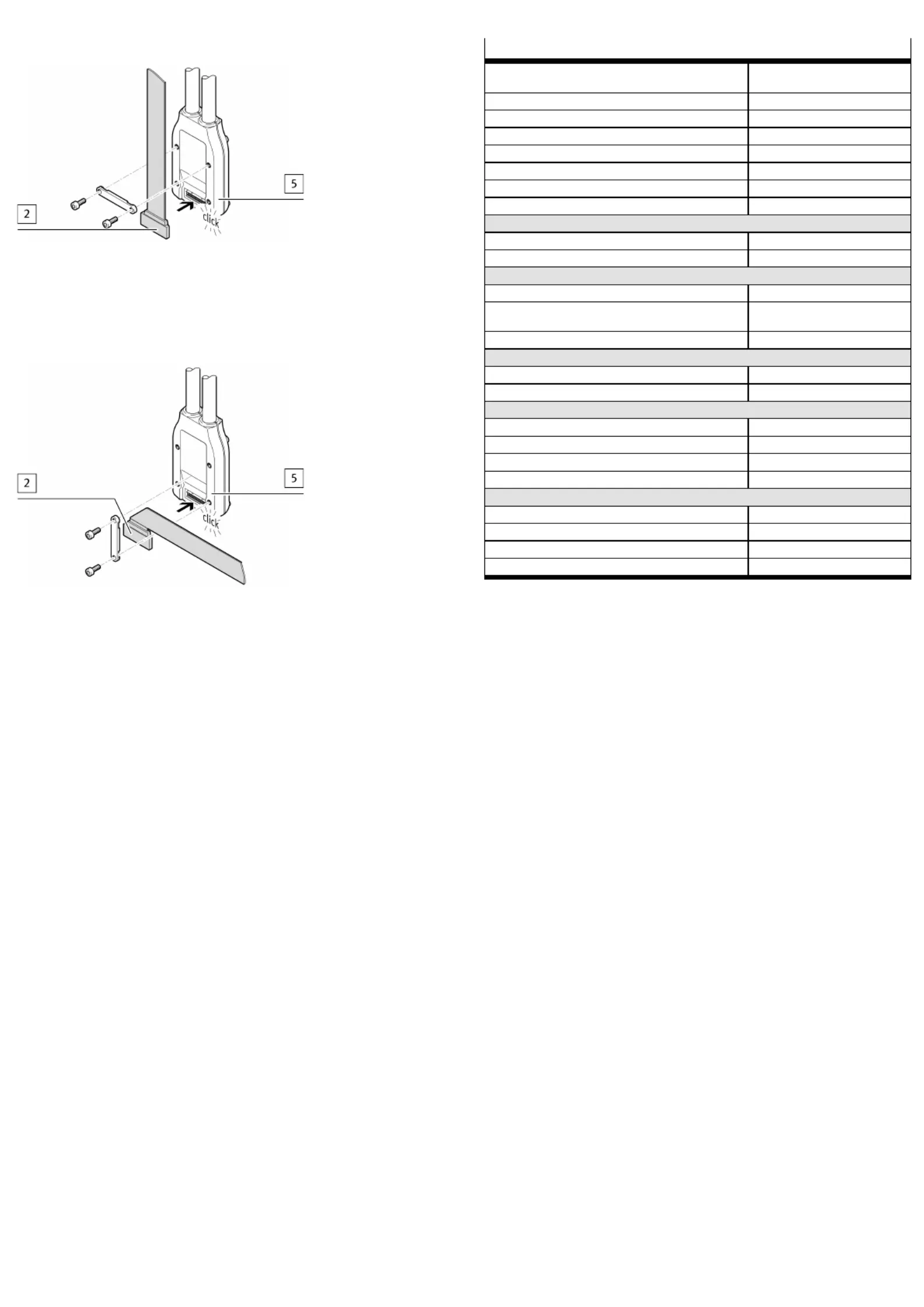

4.2 Assembly, controller side
With an upward cable outlet
Fig. 6 Upward cable outlet
1. Connect the socket to the plug for the motor cable . 2 5
ÄConnector lock clicks into place.
2. Relieve the strain on the push-in connector Instruction manual for theè
motor cable .5
With cable outlet on the side
Fig. 7 Cable outlet on the side
1. Bend the ribbon cable once at the required location for a cable outlet on the
side.
2. Connect the socket to the plug for the motor cable . 2 5
ÄConnector lock clicks into place.
3. Relieve the strain on the push-in connector Instruction manual for theè
motor cable .5
5 Disassembly
• Lever out the socket from the plug on the rotary gripper module using1 6
a flat tool. Tool: e.g. screwdriver.
6 Technical data
NEBM-F1W31-XC-...-DF1W31
Cable characteristic Highly flexible, for dynamic applica-
tions
Cable design Foil cable
Cable composition 31x (0.035mm x 0.3mm)
Cable diameter D [mm] 16x0.15
Current rating at 40°C [A] 0.5
Surge resistance [kV] 0.25
Operating voltage range DC UB[V] 0…24
Material Cable sheath PET
Degree of protection
Degree of protection IP20
Note on degree of protection In assembled state
Bending radius
Fixed cable installation R [mm] 0
Note on bending radius, fixed cable installa-
tion
Can be bended once
Flexible cable installation R [mm] ³25
Ambient temperature
Fixed cable installation [°C] –20…+75
Flexible cable installation [°C] –5…+70
Electrical connection1
Function Field device side
Connection type Socket
Connection technology Plug pattern F1
Type of mounting Snap-locking
Electrical connection2
Function Controller side
Connection type Socket
Connection technology Plug pattern F1
Type of mounting Snap-locking
Tab. 3 Technical data
