DADP-SP-G9-...-F

Stop kit

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com

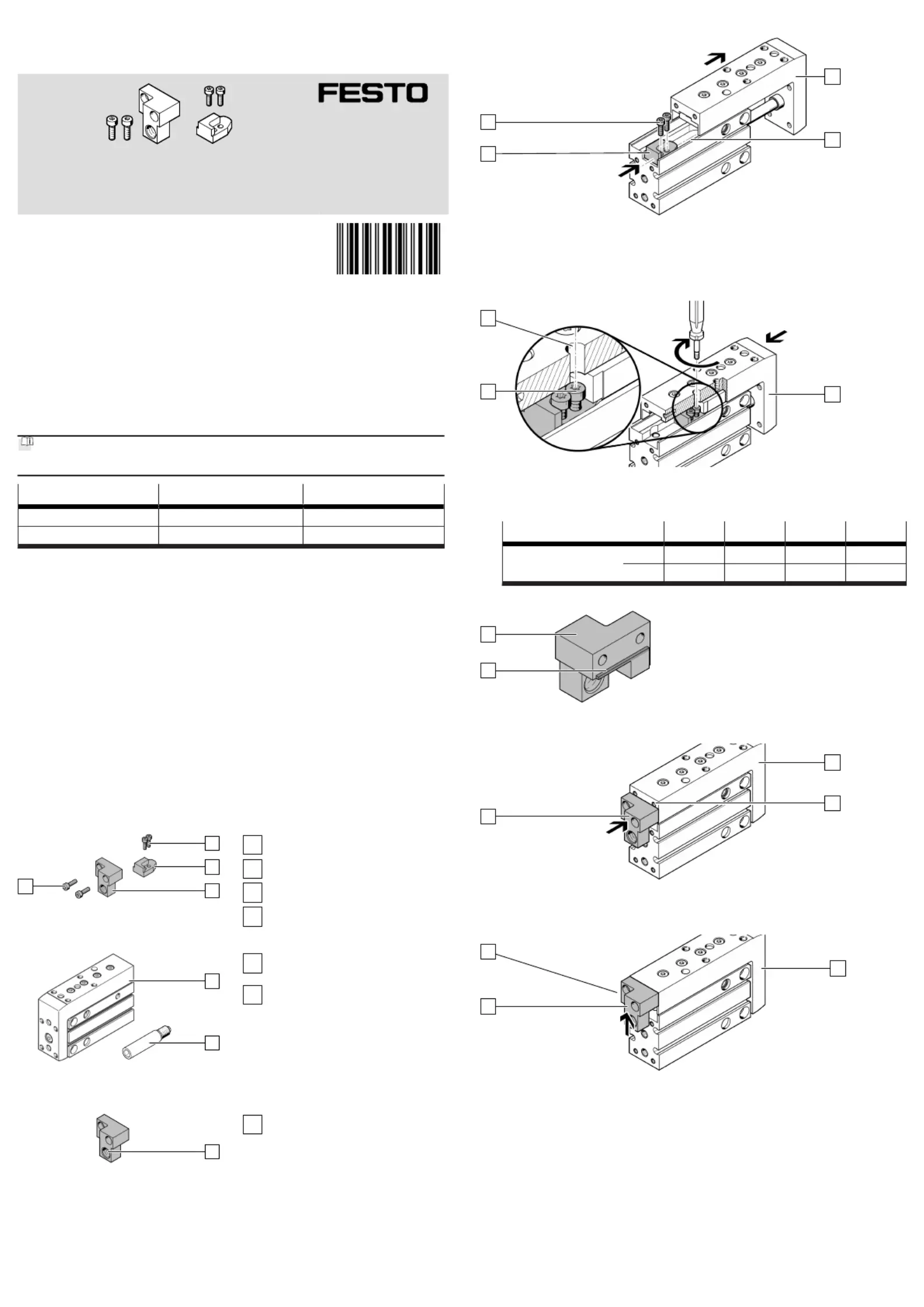

Assembly instructions

8195146

2023-07a

[8195148]

8195146

Translation of the original instructions

© 2023 all rights reserved to Festo SE & Co. KG

1

Applicable documents

All available documents for the product

è

www.festo.com/sp.

DocumentProductContents

Operating instructionMini slide DGSS–

Operating instructionShock absorber DYEF, DYSS–

Tab. 1:

Applicable documents

2Safety

2.1

Safety instructions

–Only mount the product on components that are in a condition to be safely

operated.

2.2Intended use

The stop kit in combination with a shock absorber on the mini slide DGSS cush-

ions its extended end position.

3Additional information

–

Contact the regional Festo contact if you have technical problems

è

www.festo.com.

–

Accessories

è

www.festo.com/catalogue.

4Product Range Overview

4.1

Scope of delivery

1

2

3

4

Fig.1

1

Screw (2x)

2

Stop (1x)

3

Stop element (1x)

4

Screw (2x)

4.2

Not in scope of delivery

5

6

Fig.2

5

Mini slide (1x)

DGSS

6

Shock absorber (1x)

DYEF-G8/DYSS-G8

5

Product design

Z

Fig. 3:

Product design

Z

Thread for shock absorber

6Assembly

1

A

B

2

Fig. 4:Pushing in stop

1.Extend the slide[A] manually.

2.Slide the stop into the slot[B].2

3.Insert the screws into the holes of the stop.12

4.Slide the stop to the end of the slot[B].2

A

C

1

Fig. 5:Mounting stop

1.

Position the slide[A] so hole[C] is aligned with a screw.1

2.

Tighten the screw. Observe the tightening torque.1

DADP-SP-G9-6-10-16-20

ScrewM2 x 6M2.5 x 8M2.5 x 8M3 x 12

[Nm]0.3 ±15%0.5 ±15%0.7 ±15%0.9 ±15%

3.

Repeat this process for the second screw.1

C

3

Fig. 6:

Note the stop bar

•

When installing the stop element, note the position of the stop bar[C].3

3

D

A

Fig. 7:

Aligning stop element

1.

Retract the slide[A] manually.

2.Position the upper edge of the stop element at the level of the thread[D].3

3

A

C

Fig. 8:

Attaching stop bar

1.Push the stop element upwards to the stop.3

Ä

The stop bar[C] is in contact with the slide[A].

2.Hold this position.
