Pagina 1/2
Michael Koch GmbH, Zum Grenzgraben 28, 76698 Ubstadt , Tel.: +49 7251 9626200-Weiher, Germany
mail@bremsenergie.de, www.bremsenergie.de, mail@brakeenergy.com, www.brakeenergy.com
Dbl- -BWD600014K06LIP65FE_deu engl_20210723.docx
Brake resistor - BWD600014K06LIP65FE
CACR- - -W KL2 21 3600
*Sc
Description:
Short protecting- - -circuit proof, self
1)
resistor unit for operation on converters (brake transistors) consisting of
6 resistor modules in anodized aluminium casings. Protection class according to IP65
2)
, interconnected by
spring- type terminals. For detailed measurements, see technical drawing (on request).
Nominal capacity (W)
Dimensions LxWxH (mm)
Resistance values (Ohm)
1440 (3600 at ED = 35%, ϑ
A
= 20°C)
355 x 216 x 113,5
21
Technical data:
Parameters
Symbol
Value
Unit
Conditions
Tolerance
± 5
%
Room temperature
Weight
m
approx 8
kg
Connction data terminal
Conductor cross- section
6 Max. mm
2
Depending on the design of the cable
cross- section
Storing temperature
ϑ
S
- 25 ... +85
°C
Limit values (ϑ
A
)= 20°C, if nothing else is stated :
Parameters
Symbol
Value
Unit
Conditions
Max. permissible operating
voltage
U
B
≤
700 AC
≤ 1000 DC
V
considering “self protection”
1)
U
B
≤
600 AC
#
*
≤ 8 50 DC*
V
considering CSA
#
and UL*
Energy consumption
E
13
26
kJ
with 1,2s (1% ED)
with 7,2s (6% ED)
Insulation voltage
U
ISO
≥ 40 00
V
AC; f = 50 Hz; t = 1 s
Max. permissible casing
temperature
ϑ
C
≤
250
°C
free convection
Temperature coefficient
TK
20 ... 100
10
-6
/K
Insulation resistance
R
ISO
≥ 100
M Ω
U
MEAS
= 1000 VDC
Inductance
L
≤ 30
µH
f = 300 kHz, U
MEAS
= 50 mV
Capacity against housing
C
≤ 300
pF
f = 300 kHz, U
MEAS
= 50 mV
Thermic time factor
τ
Approx 600
sec
Casing BWD600xxx
Max. permissible wire temperature
ϑ
hot
max. + 600
°C
Approbation
cCSAus (CSA file# 210040)
cURus (UL file# E233422)
(both based on CSA-C22.2
and UL 508)
1):
Self protection: At four time type capacity and free convection : Warning
1. No short circuit Mounted in areas without
2. No fault to frame free air change surface
3. Self-extinguishing – no fire temperatures up to
3 4. No melting of casing 50 degrees Celsius can
be reached.
2):
Test conditions: Water jet from nozzle 6,3mm inside diameter, flow rate 12,5l/min +/- 5%, water pressure according to volume flow,
distance 2,5-3m, test duration 3min
*Sc = single components
CACR-KL2-21-W3600 | 8195552 2023-04 [8195554]
Michael Koch GmbH, Zum Grenzgraben 28, 76698 Ubstadt , Tel.: +49 7251 9626200-Weiher, Germany
mail@bremsenergie.de, www.bremsenergie.de, mail@brakeenergy.com, www.brakeenergy.com
Dbl- -BWD600014K06LIP65FE_deu engl_20210723.docx

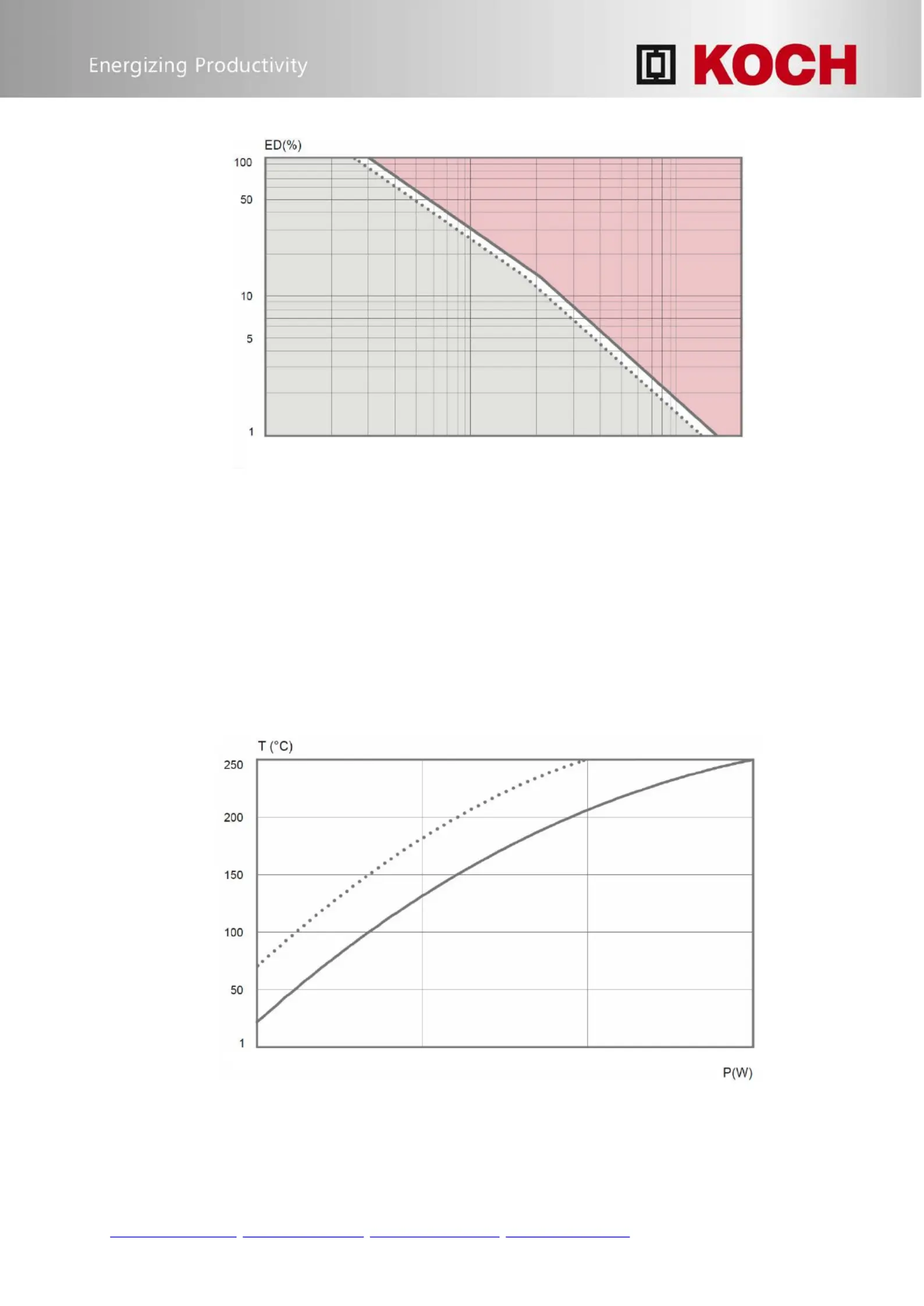

Pulse carrying capacity BWD600014K06LIP65FE
(without limitation the endurance)
This brake resistors cover any operation requirement in the range below the curve.
General set up:
1. Fundamentally the usual cycle time is 120 seconds.
2. performance on the includedThe casing temperature can be determined applying the average
temperature diagram. The average performance can be determined as follows: Pm = P[W] x ED[%] /100.
If you add 5K to the respective value in the temperature diagram you will have the casing temperature in
respect to the pulse capacity.
Housing temperature BWD600014K06LIP65FE
(At an ON period ED = 100%, Maximum temperature = 250°C)
6 00 1200 3000 6000 12000 30000 60000 120000
P (W)
Ambient temperature
20°C
Ambient temperature
70°C
0 600 1200 1800
Ambient temperature
70°C
Ambient temperature
20°C
CACR-KL2-21-W3600 | 8195552 2023-04 [8195554]
