1

DA2 HD 8K AE and DA2 HD 8K AI • Setup Guide

IMPORTANT NOTE:

Go to www.extron.com for the complete user guide, installation instructions, and specications before connecting

the product to the power source.

DA2 HD 8K AE / DA2 8K AI

The Extron DA2HD8K AE and DA2HD 8K AI distribution ampliers distribute one HDMI input signal to two outputs simultaneously at

resolutions up to 8K @ 30 Hz 4:4:4 or 8K @ 60 Hz 4:2:0, and comply with HDMI 2.1 and HDCP 2.2. The DA2s also features EDID Minder

Plus and remote control and monitoring via USB.

The DA2HD 8K AE extracts LPCM 2-channel audio from the HDMI signal, converts it to analog, and outputs it as balanced or unbalanced

analog audio. The DA2HD 8K AI accepts stereo balanced or unbalanced analog audio, convert it to 2-Channel 16-bit LPCM audio at

48 KHz, and embed it onto the HDMI signal.

This setup guide provides basic instructions for installation by an experienced installer. For complete instructions, see the

DA2 HD AI User Guide8K AE and DA2HD8K at www.extron.com.

Mounting

The DA2HD8K AE and DA2HD 8K AI distribution ampliers can be placed on a desktop or tabletop using the included rubber feet, or

mounted to a rack or furniture (see the DA2 HD AI User Guide8K AE and DA2HD8K at www.extron.com, for mounting options and

instructions).

Rear Panel Cabling

DA2 HD 8K AE DA2 HD 8K AI

--A MAX

12V

+

+

+

+

+

_

_

_

_

_

POWER

INPUTOUTPUTSAUDIO

ANALOG OUT

LR

12

A

A

A

A

A

AB

B

B

B

B

BD

D

D

D

D

DC

C

C

C

CC

--A MAX

12V

+

+

+

+

+

_

_

_

_

_

POWER

INPUTOUTPUTSAUDIO

ANALOG IN

LR

12

A

A

A

A

AAB

B

B

B

BBC

C

C

C

CCE

E

E

E

EE

Figure 1. DA2 HD 8K AE and DA2 HD 8K AI Rear Panels

A

Power input — Connect the provided 12 VDC, 1.5 A power supply to this 2-pole 3.5 mm captive screw port.

SECTION A–A

Ridges

Smooth

A

A

3/16"

(5 mm) Max.

POWER

12V

--A MAX

Figure 2. Wiring the Power Connector

B

HDMI input — Connect a source device to this female

HDMI type A input.

ATTENTION:

•Do not connect the power supply before reading

the Attention in the Power Supply section of the

DA2 HD AI User Guide8K AE and DA2HD8K .

•Ne branchez pas la source d’alimentation externes avant

d’avoir lu les mises en garde dans la section « Power Supply »

du DA2HD8K .DA2 HD8K AE and AI User Guide

C

HDMI outputs — Connect up to two display devices to these female HDMI type A outputs.

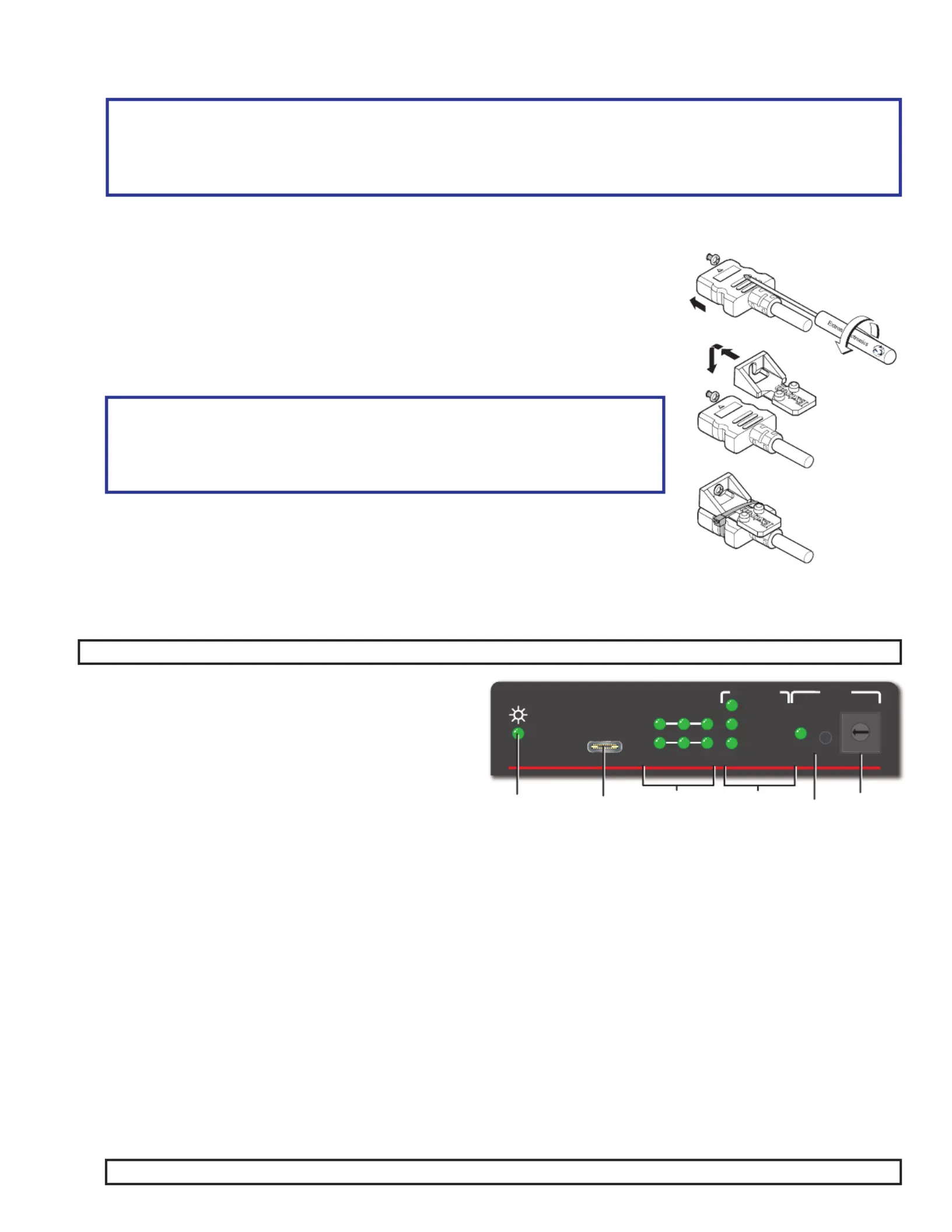

NOTE:Use the provided LockIt

®

HDMI cable lacing brackets to secure the HDMI connectors (see Installing the LockIt Bracket

on page 2).

D

Analog audio output (DA2 HD 8K AE model only)—

Connect an audio output device to this 5-pole, 3.5 mm

captive screw port. This port outputs 2-channel LPCM audio

(converted to analog) that is extracted from the HDMI input

signal.

E

Analog audio input (DA2 HD 8K AI model only) — Connect

an analog audio device to this 5-pole 3.5 mm captive

screw port. This port accepts 2-channel stereo balanced or

unbalanced audio.

NOTE:By default, the DA2 HD 8K AI is congured to

always embed analog audio. This can be congured

using Extron PCS software or SIS commands.

Unbalanced Stereo OutputBalanced Stereo Output

Do not tin the wires!

Tip

No Ground Here

No Ground Here

Tip

LR

Sleesve

Tip

Ring

Tip

Ring

LR

Sleesve

Figure 3. Wiring the Audio Output Connector

Unbalanced Stereo Input

Balanced Stereo Input

Tip

Ring

Tip

Ring

LR

Sleesve

Tip

Sleeve

Sleeve

Tip

LR

Figure 4. Wiring the Audio Input Connector
