Mit dem EX13020HMV können Sie Notebook, Desktop Rechner oder Server im 19Zoll Rack --

über den USB 3.2 Gen 1 CAnschluss in ein 10/100/1000Mbps Netzwerk einbinden. Der EX--

13020HMV kann gleichzeitig zu einer bestehender Netzwerkkarte installiert werden. Die Instal-

lation ist sehr einfach ohne, dass die Systeme geöffnet werden müssen. Die Bauform des EX-

13020HMV ist sehr kompakt und robust und bietet somit einen optimalen Einsatz in rauen

Umgebungen. Zusätzlich ist es möglich das UBS 3.2 Gen 1 Kabel mit dem EX13020HMV zu -

verschrauben. Mit dem EX13020HMV wir ein DINRail Kit mitgeliefert, für die Installation in ein --

19- Zoll Rack.

Kompatibilität:USB 1.1, 2.0, 3.2 Gen 1 / TCP/IP 10/100/1000

Betriebssysteme:Windows XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx / Linux / Mac OS

Anschlüsse:1x USB 3.2 Gen 1 CBuchse, 1x RJ45 Gigabit Ethernet Anschluss-

Lieferumfang:13020HMV, USB 3.2 Gen 1 Kabel (verschraubbar), EX-

-Wandmontagehalterung, DINRail Kit, Anleitung

BESCHREIBUNG & TECHNISCHE DATEN

AUFBAU

ANSCHLUSS & STATUS LsED

RJ45 Anschluss:

RJ45 Anschluss

PinSignalPinSignalPinSignal

1BI_DA+4BI_DC+7BI_DD+

2BI_DA5BI_DC8BI_DD- - -

3BI_DB+6BI_DB -

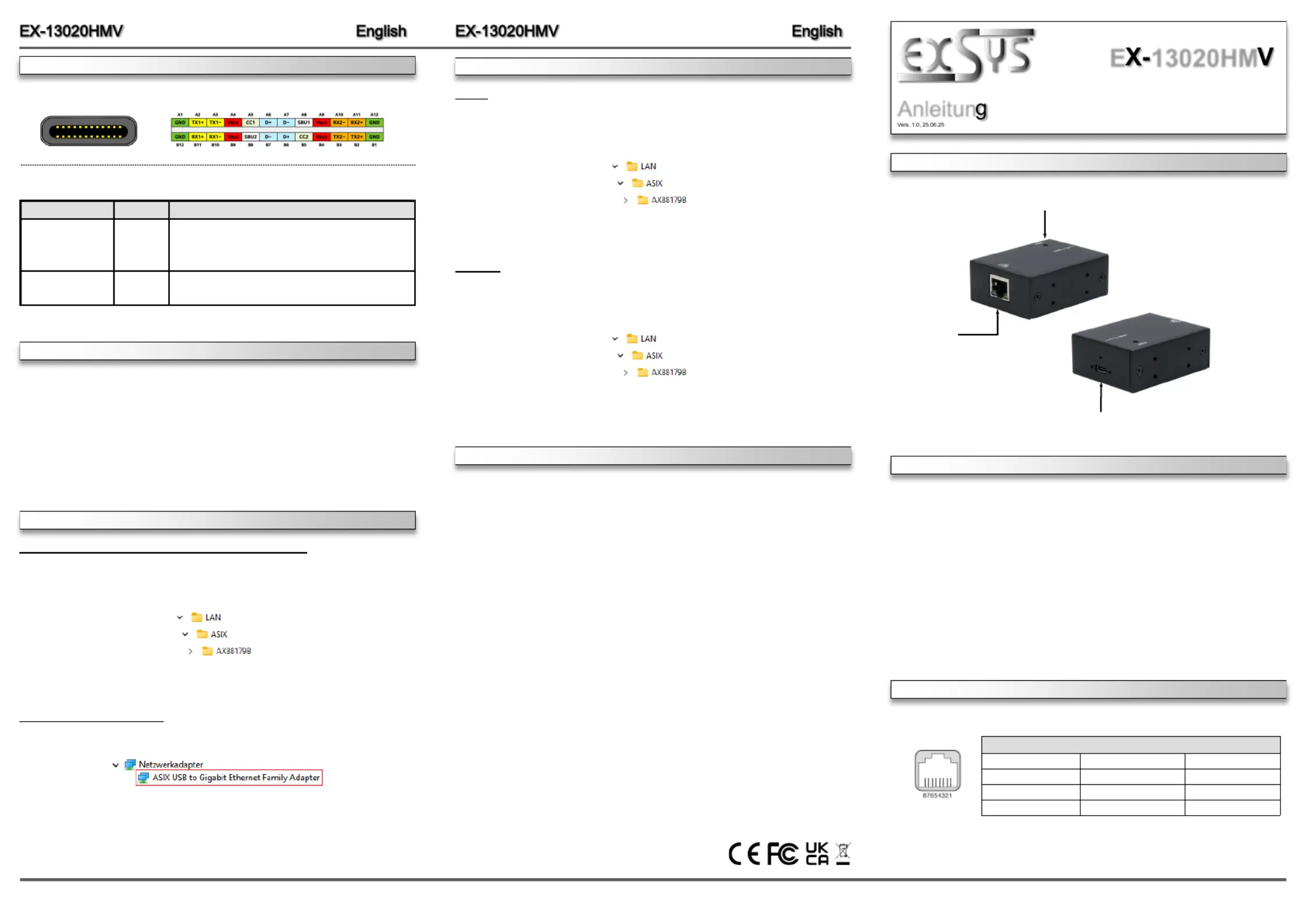

Anleitun

E13020HM

Switzerland:

EXSYS Vertriebs GmbH

Dübendorfstrasse 17

8602 Wangen

www.exsys.ch

Germany:

EXSYS Vertriebs GmbH

Industriestrasse 8

61449 Steinbach

www.exsys.de

Italy:

EXSYS Italia Srl

Via Belvedere, 45/B

I22100 Como -

www.exsys.it

USB 3.2 Gen 1 CBuchse (verschraubbar) -

zum Anschluss an den PC

Betriebs LED

RJ45 Anschluss

HARDWAREINSTALLATION

DRIVER INSTALLATION

Because there are large differences between PCs, we can give you only a general installation ’

guide for the EX13020HMV. Please refer your computers reference manual whenever in -’

doubt.

1.Connect the supplied USB 3.2 Gen 1 cable to the USB CPort of the EX13020HMV.--

2.-Now connect the other end of the supplied USB 3.2 Gen 1 cable to a USB CPort on your

PC.

3.Now you can connect a network cable at the EX-13020HMV.

CLEANING

Windows XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx

Once the hardware installation is complete, the operating system automatically recognizes the

EX-13020HMV and installs it. If the drivers are not installed automatically, you can download

the drivers from our website (www.exsys.de or www.exsys.ch) under Downloadsfor your “”

product.

Now open the folder of your operating system and start the application located there. „“setup

Now follow the installation instructions and complete the installation.

CHECK INSTALLED DRIVER

Open the . Now you should see at >Device manager<„Ethernet Adapter“ the following new

entry:

If you see this or a similar information the device is installed correctly.

For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In

the area of the connectors please make sure that no fibres from the cloth remain in the connect-

ors. Attention! Never use a moist or wet cloth for cleaning!

CONNECTOR & STATUS LsED

Status LED‘s:

LED Name

Color

LED Function

Link/Act

Green

Continuously on: The Connection on the Ethernet port

is built and Active

Flash: Transmit Data

Off: Network connection is disconnected

Speed

Yellow

Off: 10/100Mbps Mode

Continuously on: Gigabit (1000Mbps) Mode

DRIVER INSTALLATION

Linux

Once the hardware installation is complete, the operating system automatically recognizes the

EX-13020HMV and installs it. If the drivers are not installed automatically, you can download

the drivers from our website (www.exsys.de or www.exsys.ch) under Downloadsfor your “”

product.

Now open the folder of your operating system and remove the drivers for installing the EX-

13020HMV.

Mac OS

Once the hardware installation is complete, the operating system automatically recognizes the

EX-13020HMV and installs it. If the drivers are not installed automatically, you can download

the drivers from our website (www.exsys.de or www.exsys.ch) under Downloadsfor your “”

product.

Now open the folder of your operating system and remove the drivers for installing the EX-

13020HMV.

USB 3.2 Gen 1 CPort:-
