Diopter Adjustment and Focusing

1. Adjust eyecups interpupillary distance as described in the previous sections.

2. Set the diopter adjustment ring to zero and view a distant object.

3. Keep both eyes open at all times.

4. Using a lens cover or your hand, cover the objective (front) lens of the same side

of the binocular that has the diopter adjustment ring. This is usually the right side.

5. Using the center focus wheel, focus on a distant object with fine detail (e.g., brick

wall, tree branches, etc.) until it appears as sharp as possible.

6. Uncover the objective lens on the diopter side, cover the other objective lens, the

left side, then view the same object.

7. Using the diopter adjustment ring, move the dipoter adjustment marker to the “” +

or “” till you reach focus.-

Caution should be used as over turning or forcing the diopter ring can cause

damage or cause the eyepiece to break away from the chassis.

8. Your binocular should now be adjusted for your eyesight. Focusing for any

distance can now be done simply by turning the center focus wheel. Make a note of

your diopter setting for future reference.

Neckstrap Attachment

To securely attach your binocular to the binocular strap:

1. Thread the end of the strap from the bottom up through the strap attachment

loop.

2. Hold the buckle and thread the end of the strap inside the buckle.

3. Adjust the overall length and pull the strap webbing tight so it is secure within the

buckle.

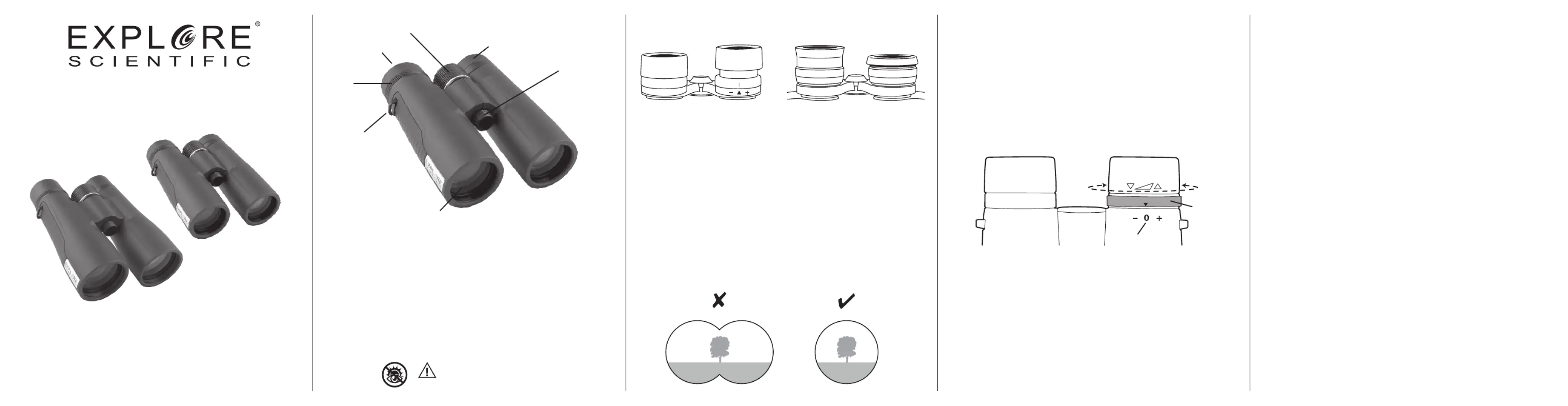

GS400 BINOCULARS

USER GUIDE

Parts

01. Ocular Lens

02. Center Focus

03. Rubber Eyecup

04. Diopter

05. Strap Attachment

06. Objective Lens

07. Tripod Adapter Socket

© Explore Scientic, LLC.

1010 S 48th Street, Springdale, AR 72762

explorescientic.com | 866.252.3811 | All rights reserved. Made in China.

CONTENTS AND COLORS MAY VARY

SUN HAZARD

— Never look directly at the sun with this device.

WARNING:

05

06

07

02

04

03

Eyecup Adjustment

Your Explore Scientific binocular is fitted with eyecups which can be rolled or

twisted up or down (depending on your model) to optimize the view for your eyes

and to exclude extraneous light. If you are not wearing eyeglasses or sunglasses,

keep the eyecups fully extended (“up” position). If you are wearing glasses, roll

down the eyecups or twist them to the down position. This will bring your eyes

closer to the binocular’s eyepiece (ocular) lens to ensure you can see the entire

image (full field of view with no “cutoff” or “tunnel vision”).

IPD (Interpupillary Distance) Adjustment

The distance or spacing between the center of the pupils, called “interpupillary

distance” (IPD) varies from person to person. To adjust the binocular to match your

eyes, follow these simple steps:

1. Hold your binocular in the normal viewing position. Grasp each barrel firmly.

2. Move the barrels closer together or further apart until you see a single circular

field (don’t worry about focus yet).

3. Always re-set your binocular to this position before using it.

Twisted EyecupRolled Eyecup

Waterproof / Fogproof Models

Explore Scientific binoculars are designed and built utilizing the latest waterproof

and fogproof technology (this will be noted on the product packaging). Waterproof

models are O-ring sealed for complete moisture protection. Fogproof protection is

achieved from dry nitrogen purging that removes all internal moisture.

Tripod Mounting (tripod and tripod adapter not included)

To attach the binocular to a tripod or mono-pod, unscrew (counter-clockwise) the

cap which covers the threaded socket at the far end of the center hinge, and set it

aside in a safe place. Use a compatible binocular tripod adapter accessory to attach

your binocular to any standard tripod in a horizontal position to provide a stable

image during prolonged viewing.

Care and Cleaning

Your Explore Scientific binocular will provide years of trouble-free service if it

receives the normal care you would give any fine optical instrument.

• Do not expose non-waterproof models to heavy rain or other excessive moisture.

• If your binocular has roll-down, flexible eyecups, store it with the eyecups up. This

avoids excessive stress and wear on the eyecups in the down position.

• Avoid sharp impacts. Use the included neckstrap to avoid accidentally dropping

the binoculars to prevent mis-alignment of the optics.

• When not using them, store your binoculars in the provided case in a cool, dry

place.

• Avoid storing the binoculars in hot places, such as the passenger compartment of

a vehicle on a hot day. The high temperature could adversely affect the lubricants

and sealants. Never leave the binocular where direct sunlight can enter either the

objective or the eyepiece lens. Damage may result from the concentration (burning

glass effect) of the sun’s rays.

• All moving parts of the binocular are permanently lubricated. Do not try to

lubricate them.

To Clean Your Binoculars Lenses

1. Blow away any dust or debris on the lens (or use a soft lens brush).

2. To remove fingerprints or other smears, clean with a soft cotton cloth rubbing in

a circular motion. A “microfiber”cleaning cloth (available from camera or computer

retailers) is ideal for the routine cleaning of your optics.

3. For a more thorough cleaning, photographic lens tissue and photographic-type

lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the

cleaning cloth – never directly on the lens.

For assistance or to return an item, contact Explore Scientific at 866.252.3811

or visitfor return procedures. explorescientific.supportsync.com

01

Drawing may not match binocular model.

Diopter

Adjustment

Ring

Diopter

Adjustment Marker

Diagram may vary.

MODELS:

#ES-10843

#ES-11043

#ES-11051
