Eurolite LED THA-120PC Handleiding

Eurolite Heater LED THA-120PC

Bekijk gratis de handleiding van Eurolite LED THA-120PC (28 pagina’s), behorend tot de categorie Heater. Deze gids werd als nuttig beoordeeld door 2 mensen en kreeg gemiddeld 5.0 sterren uit 1.5 reviews. Heb je een vraag over Eurolite LED THA-120PC of wil je andere gebruikers van dit product iets vragen? Stel een vraag

Download PDF

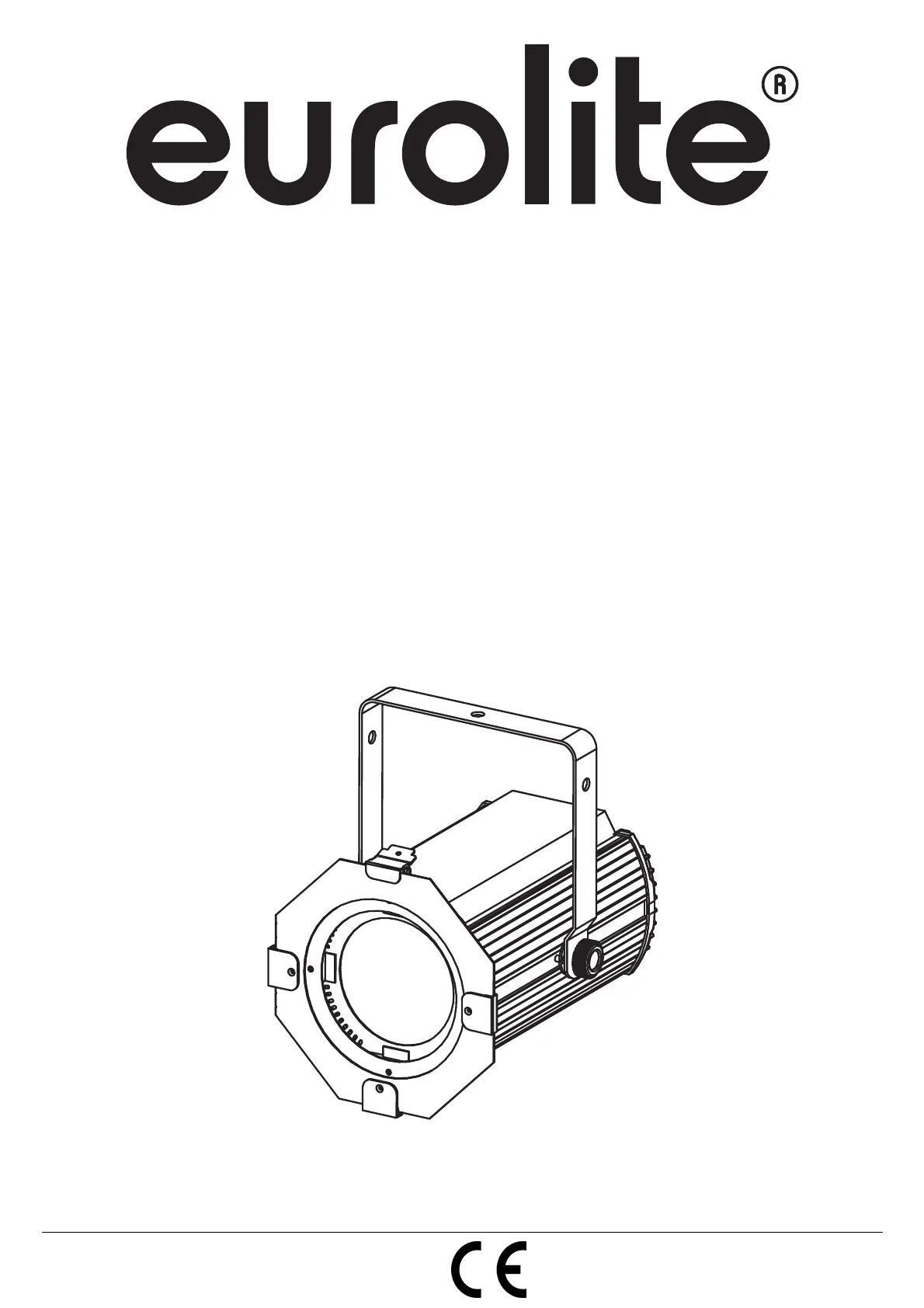

Pagina 1/28

Nachdruck verboten!

Reproduction prohibited!

Für weiteren Gebrauch aufbewahren!

Keep this manual for future needs!

BEDIENUNGSANLEITUNG

USER MANUAL

LED THA-120PC

Theater Spot

00099958.DOC, Version 1.0

2/28

Inhaltsverzeichnis

Table of contents

EINFÜHRUNG ................................................................................................................................................... 3

SICHERHEITSHINWEISE ................................................................................................................................. 3

BESTIMMUNGSGEMÄßE VERWENDUNG ..................................................................................................... 4

GERÄTEBESCHREIBUNG............................................................................................................................... 6

Features ......................................................................................................................................................... 6

Geräteübersicht .............................................................................................................................................. 6

INSTALLATION ................................................................................................................................................ 7

Überkopfmontage ........................................................................................................................................... 7

DMX-512 Ansteuerung................................................................................................................................... 9

Anschluss zwischen Geräten ......................................................................................................................... 9

Master/Slave-Betrieb .................................................................................................................................... 10

Anschluss ans Netz ...................................................................................................................................... 10

BEDIENUNG ................................................................................................................................................... 10

Standalone-Modus ....................................................................................................................................... 10

Control Board ............................................................................................................................................... 11

DMX-MODUS ............................................................................................................................................... 12

REINIGUNG UND WARTUNG ........................................................................................................................ 14

Sicherungswechsel ...................................................................................................................................... 14

TECHNISCHE DATEN .................................................................................................................................... 15

INTRODUCTION ............................................................................................................................................. 16

SAFETY INSTRUCTIONS............................................................................................................................... 16

OPERATING DETERMINATIONS .................................................................................................................. 18

DESCRIPTION ................................................................................................................................................ 19

Features ....................................................................................................................................................... 19

Overview ...................................................................................................................................................... 20

INSTALLATION .............................................................................................................................................. 21

Overhead rigging .......................................................................................................................................... 21

DMX-512 control .......................................................................................................................................... 22

Connection between devices ....................................................................................................................... 23

Master/Slave-operation ................................................................................................................................ 23

Connection with the mains ........................................................................................................................... 23

OPERATION ................................................................................................................................................... 24

Stand-alone mode ........................................................................................................................................ 24

Control Board ............................................................................................................................................... 24

DMX MODE ................................................................................................................................................. 25

CLEANING AND MAINTENANCE ................................................................................................................. 27

Replacing the fuse ....................................................................................................................................... 27

TECHNICAL SPECIFICATIONS ..................................................................................................................... 28

Diese Bedienungsanleitung gilt für die Artikelnummer: / This user manual is valid for the article number:

41602130

Das neueste Update dieser Bedienungsanleitung finden Sie im Internet unter:

You can find the latest update of this user manual in the Internet under:

www.eurolite.de

Product specificaties

Merk:	Eurolite
Categorie:	Heater
Model:	LED THA-120PC
Soort bediening:	Knoppen
Kleur van het product:	Zwart
Ingebouwd display:	Ja
Gewicht:	5850 g
Breedte:	256 mm
Diepte:	360 mm
Hoogte:	370 mm
Gewicht verpakking:	6600 g
Breedte verpakking:	495 mm
Diepte verpakking:	315 mm
Hoogte verpakking:	315 mm
Aantal lampen:	1 lampen
Soort lamp:	LED
Vermogen lamp:	120 W
Stroombron:	AC
Internationale veiligheidscode (IP):	IP20
Aantal kleuren:	4 kleuren
Ingangsspanning:	110 - 240 V
Opbergetui:	Ja
Aantal:	1
Kleur licht:	Blue, Green, Red, White
Frequentie:	50 - 60 Hz
Geschikt voor gebruik binnen:	Ja
Stralingshoek:	32 °
Stroomverbruik (typisch):	135 W
Type product:	Discostroboscoop
Type beeldscherm:	LCD
Verlichtingsmodi:	DMX, Stand-alone
Lichtregelingsprotocollen:	DMX
DMX-ingang:	Ja
DMX-uitgang:	Ja
Aantal pinnen:	5
Baldiameter:	- "
Aantal DMX-kanalen:	7 kanalen
Minimumhoeveelheid DMX-kanalen:	4 kanalen
