THANK YOU FOR CHOOSING ERICA

SYNTHS BLACK SERIES MODULE!

Erica Black Series include high-end,

unique functionality and superior

quality modules. Only the best,

highest quality components are used,

all inputs and outputs are protected

against undesired overvoltage. When

designing Black Series, we put design

and usability superior. Big knobs

are assigned to key functions of the

module, which makes Black Series

ideal for live performances. Enjoy!

Erica Synths Joystick Controller is a

manual command centre of your

modular setup. It generates several

sets of CVs and alters incoming

CV signal.

FEATURES:

Four unipolar 0-10V CV outputs

Two bipolar -5V - +5V CV outputs

Two inverted -5V - +5V CV outputs

Two CV inputs

“Dead zone” in the joystick centre

setting for 0V CV output

Ski friendly design

TECHNICAL SPECIFICATIONS:

E, W, N, S CV level ..................................0…10V

X-Y CV level .............................................-5V…+5V

CV IN level ..............................................-10V - +10V

Panel width .............................................12HP

Module depth ........................................30mm

Power consumption ..............................25mA@+12V, 25mA@-12V

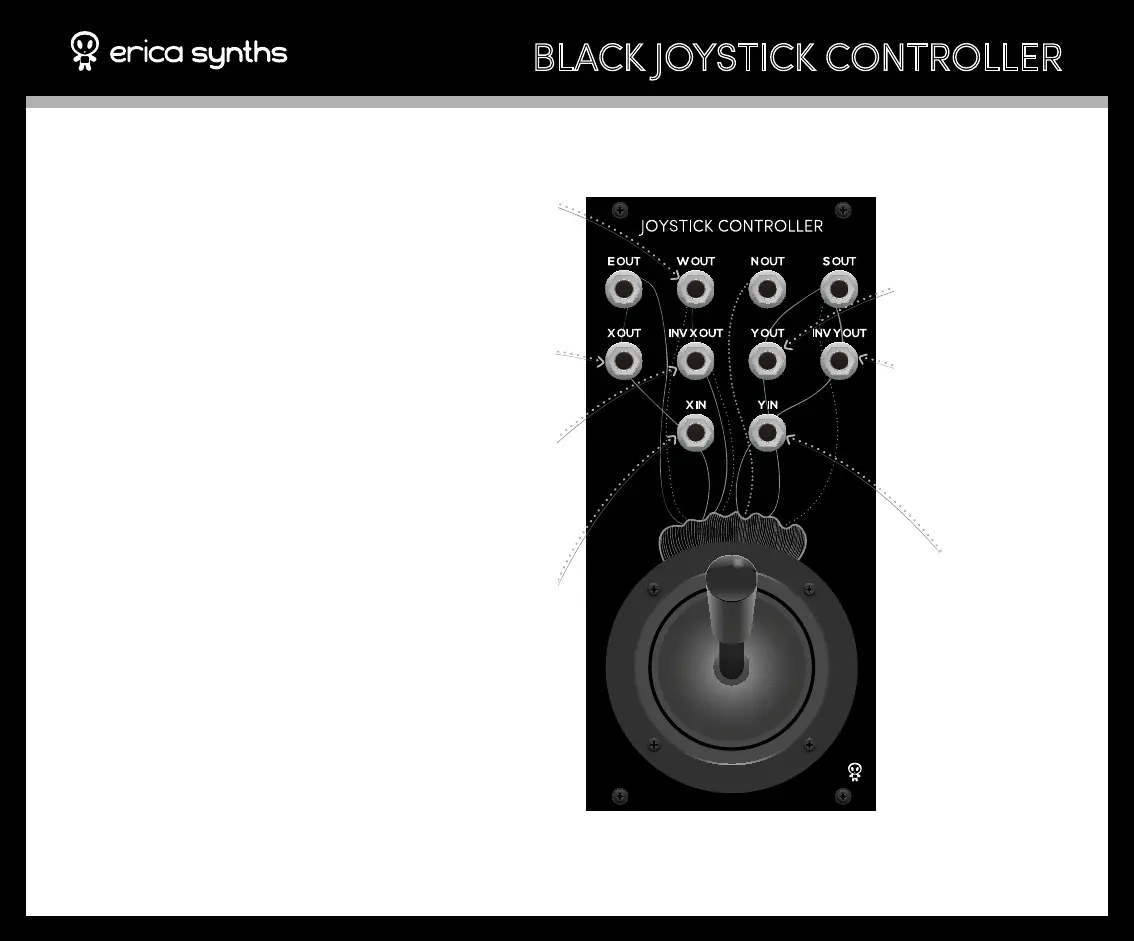

These are unipolar 0 to

+10V CV outputs. The centre

setting of the joystick gives

0V (there’s few degrees

of “dead zone” around

centre to ensure that you

can return to 0V easily),

and moving joystick any

direction (N=North, etc.)

increases output voltage

gradually to +10V

This is bipolar -5V to +5V

CV output which reacts on

motion over X axis

This X CV Input. This means

any CV applied here will

be added to X setting of

the joystick. Or in other

words – X motion will bias

incoming CV to positive or

negative side. -5V or +5V is

maximums bias incoming

CV will clip against

-5V or +5V

This is inverted X CV output

This is bipolar -5V to +5V

CV output which reacts on

motion over Y axis

This is inverted Y CV output

This is Y CV Input
