Pagina 1/4
Zido
®
Pole Cart
Product Part#
Zido Pole Cart ZD2166zz4
1 of 4
300-5404-00 rev. N • 09/19
www.ergotron.com | USA: 1-800-888-8458 | Europe: +31 (0)33-45 45 600 | China: 400-120-3051 | Japan: japansupport@ergotron.com
User's Guide
For the latest User Installation Guide please visit: www.ergotron.com

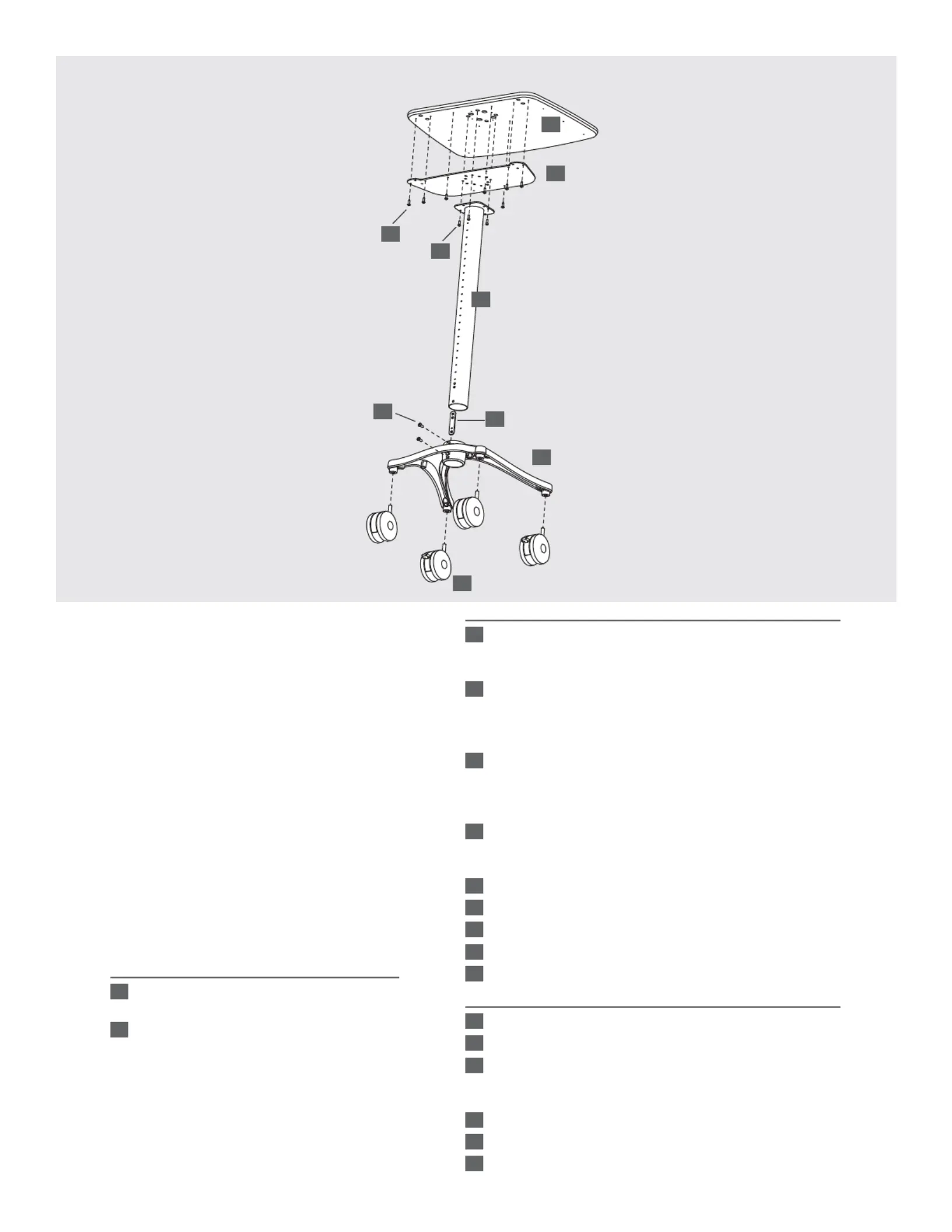

PA R T S L I S T
Before beginning assembly of your Zido
cart please review the parts list to verify
that your shipment is complete.
All Screw quantities listed here are the
minimum needed for your Zido assem-
bly. There may be a few extra Screws
included which are not counted in the
Parts List.
To make the assembly of your Zido even
easier, we have included the required
tools. The handy Hex Driver Bit can be
used in your electric drill in place of the
Hex Driver.
Zido Cart Quantity Part Number
01 Base
Small, 22" wide 1 250-5064-00
Large, 25" wide 1 250-5065-00
02 Tube
24" long (for 31” high cart) 1 500-1031-00
28" long (for 35” high cart) 1 500-1030-00
33" long (for 40” high cart) 1 500-1032-00
03 Cap Shelf
22” wide, no lip 1 101-1025-06-50
25” wide, no lip 1 101-1026-06-50
25" wide w/lip 1 101-1073-03-50
04 Casters
4” Locking 2 150-5011-03
4” Non-locking 2 150-5010-03
05 Tapped Strip 1 225-2621-00
06 Cap Shelf Bracket 1 225-2620-00
07 3/4" Flat Head Screw 2 325-5466-00
08 Wood Screws 8 325-5575-00
09 1/2" Socket Head Cap Screw 4 325-5455-00
Zido Pole Cart Quantity Part Number
01 Base 1 250-5065-00
02 Tube 1 125-4324-00
04 Casters
4” Locking 2 150-5011-03
4” Non-locking 2 150-5010-03
05 Tapped Strip 1 225-2621-00
3/4" Socket Head Cap Screw 325-5461-00(not shown) 2
End Cap (not shown) 1 175-5235-00
Product Quantity Part Number
Hex Driver 5/32” 1 375-5000-00
(not shown)
Hex Driver Bit 5/32” 1 375-5003-00
(not shown)
06
01
02
03
04
05
07
08
09
2 of 4
300-5404-00 rev. N • 09/19

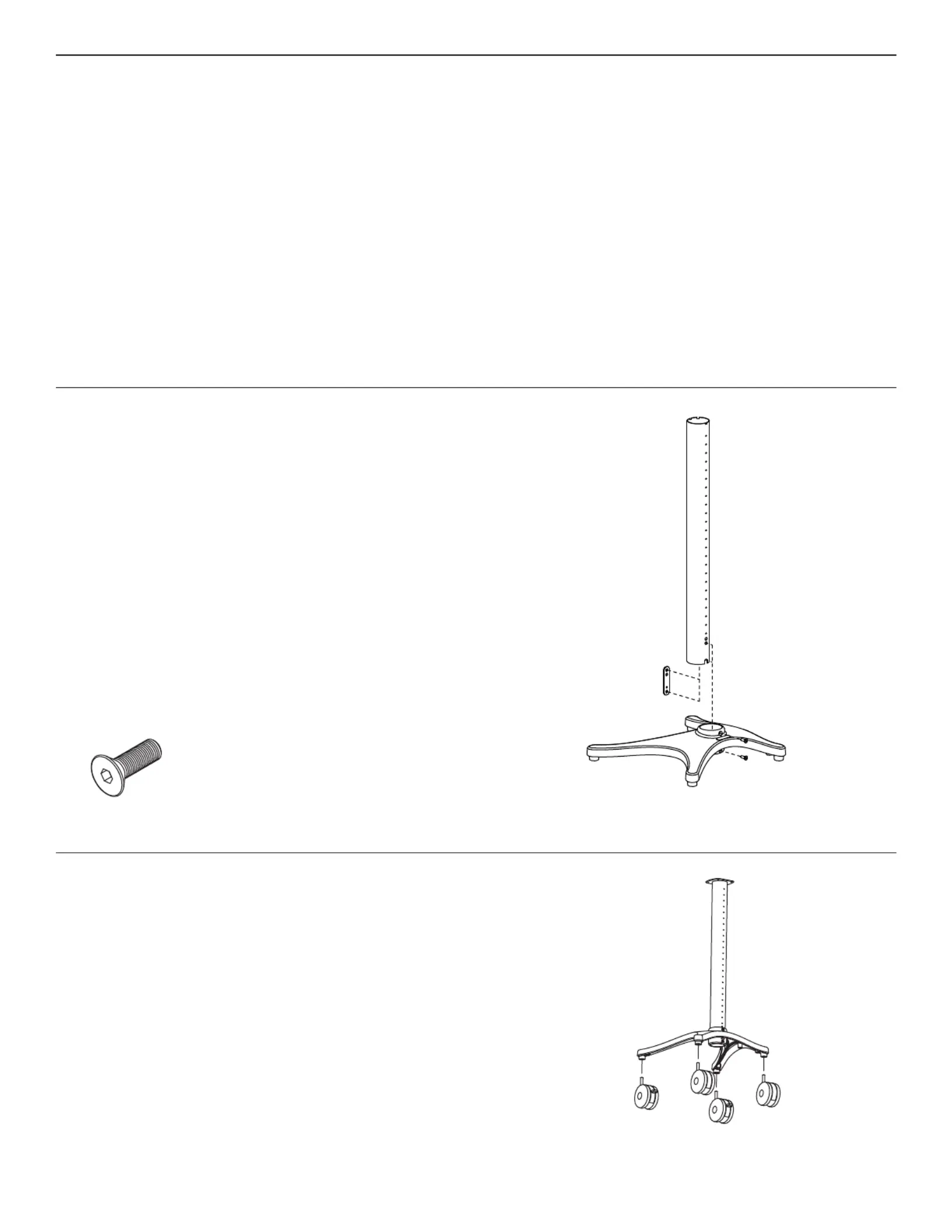

S T E P 2
Install the Casters
Add the locking casters (the ones with the brakes)
to the front of the base assembly.
Add the non-locking casters to the back of the
base assembly. If you have a Fixed-height Cart,
skip ahead to Step 3.
If you have a Zido Pole Cart, make sure that the
holes on the column line up with the holes on the
base and tighten the screws. Next, insert the End
Cap in the top of the Pole. Congratulations! Your
assembly is complete!
A S S E M B LY S E Q U E N C E
Plan out the assembly to make your installation easier. We suggest this sequence to reduce
interference between accessories.
1. Pre-drill the top for accessories (Mouse Holder, Side Bin, Gel Cup/Probe Holder, Extension Tube).
2. Assemble the cart.
3. Base Storage Shelf.
4. Drawer, Keyboard Drawer, Handle.
5. Additional Shelves, Equipment Shelves, Metal Bin, IV bracket.
6. Cable Bin, Glove Box Holder, Tank Holder.
7. Mouse Holder, Side Bin, Gel Cup & Probe Holder, Extension Tube.
8. Pole Cart Handle, Flat Panel Mounts.
S T E P 1
Connect the Base with the Tube
Slide the nut bar into the bottom of the base
assembly, smooth side against the inside of the
tube, with the two threaded holes on the top and
the single threaded hole at the bottom. Loosely
attach the nut bar to the tube with one 3/4" Flat
Head Screw.
Slide the tube into the base so that the notch
at the bottom of the tube goes over the screw.
Align the upper hole on the base with a threaded
hole on the nut bar. (For the 25w cart and the
Pole Cart, you'll use the top hole; for the 22w cart,
you'll use the second hole.) Loosely attach the
nut bar, tube, and base with the second 3/4" Flat
Head Screw.
3/4" Flat Hd Screw
325-5466-00
3 of 4
300-5404-00 rev. N • 09/19
