Pagina 1/4

Owner's Manual for

YES 40 Charging

Cart for Tablets

Part #YESTABGMPW4

Table of Contents

Getting Started 2 ..............

Safety Notices 2 ...............

Loading Devices 3 ............

Troubleshooting Guide 4 ..

Warranty 4 ........................

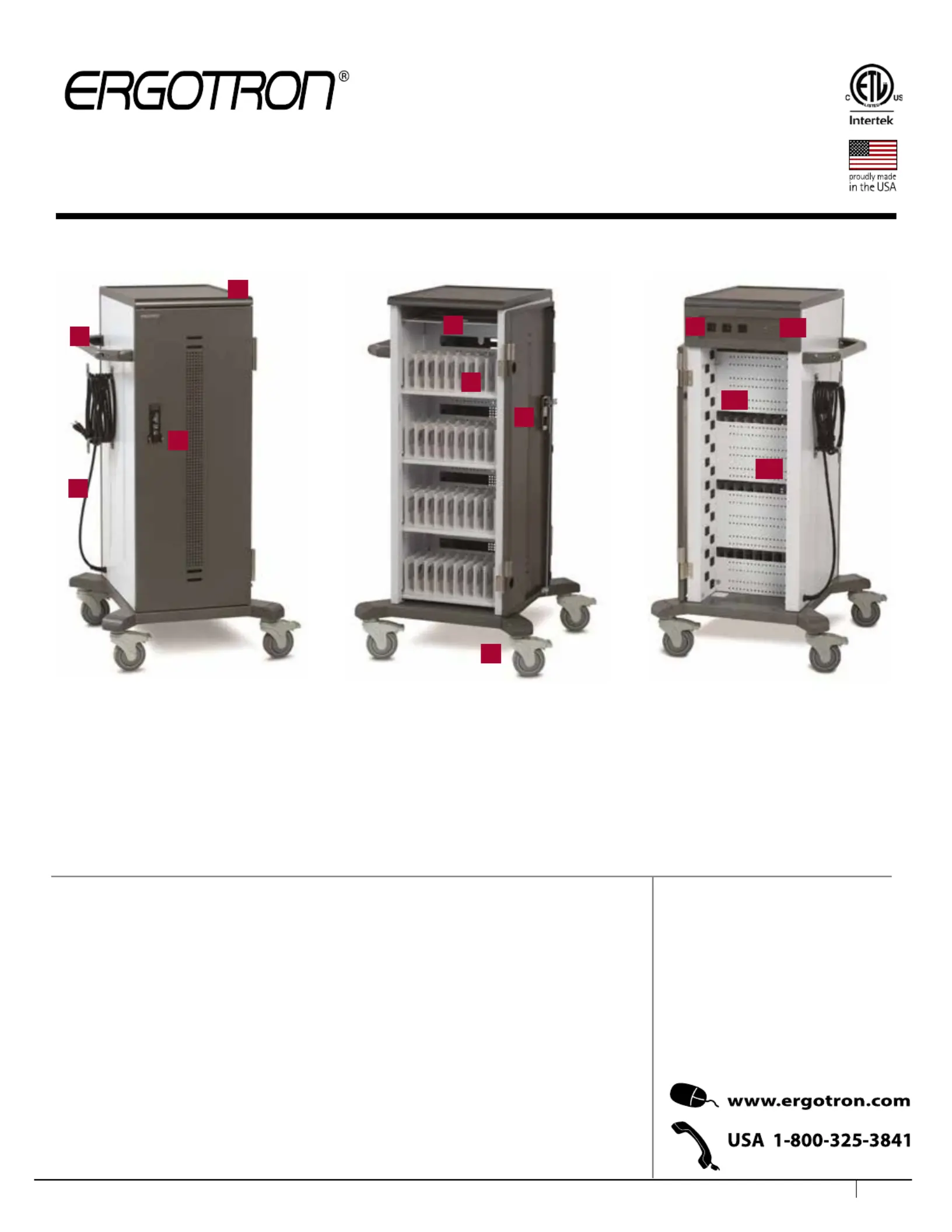

Components at a Glance

Front of Cart (closed)

1. Top shelf with 1/4"h lip

2. Handle

3. Locking door latch w/ padlock

bracket and two-point locking

system

4. Cord wrap w/power cord

Front of Cart (open)

5. Laptop storage cubby

6. Removable bay dividers w/

Cable Channels

7. Removable shelf

8. 4” total-lock casters

Back of Cart (open)

9. External power receptacles

10. Power switch w/ power

indicator light

11. Locking IT area w/ cable

management pegboard and

internal power receptacles

12. Cord pass-through slots

This cart is designed to automatically charge and store tablet, smart phone, and hand-

held devices safely and efciently. Adjustable shelves customize shelf height in 1"

increment to t a range of device heights; adjustable bays slide left to right to t even

the largest cases. The cart comes to you congured for 32 devices and supports 1-40!

Please review this manual before installing your equipment to learn how to use the cart

safely.

The cart is listed to UL Information Technology Equipment 60950-1 safety standard.

AC input: 120VAC 60 Hz. Max amps: 12A.

Built with Anthro-DNA™

300-5606-00 rev. E 11/16

1 of 4

For the latest User Installation Guide please visit: www.ergotron.com

Getting Started

Important Safeguards - We want you to be safe!

These carts are electrical devices. Use care with them and follow these

important safeguards:

• Electrical devices are not toys. Children are often unaware of

the hazards associated with electrical devices, so this unit must

always be used by adults or with adult supervision.

• Do not use this unit outdoors.

• Liquids should not be stored in, set on or placed inside this unit.

• Never unplug this product from the outlet when your hands are

wet.

• Set the power switch to the down OFF position before you

unplug the unit from the wall, plug the unit into the wall, or plug in

devices.

• Be careful with the power cord. Do not jam the power cord

against sharp edges. Do not use the unit if the cord appears to be

damaged or if the ground prong is missing. When the unit is not

plugged in, wrap the power cord around cord wraps.

• Do not use an extension cord with this unit.

• Inadequate repair can create signicant hazards to users and is

not covered by the warranty. Repairs should always be performed

by a qualied electrician.

• Special alerts for carts:

ºTo protect the carts’ contents and structural

integrity, make sure the doors are closed

and latched before moving the cart.

ºDo not use the power cord to pull the cart.

ºDo not roll the cart over the power cord.

ºAnthro does not accept any liability for damage if the unit is

misused, incorrectly operated or inadequately repaired. Under

these circumstances the warranty will be void.

• Any modications made to this device that are not approved, may

void the authority granted to the user by the FCC to operate this

equipment.

Electrical Testing

• Before using your new charging cart, have a qualied electrician

verify the current draw does not exceed the rating of the unit

when all the devices are installed.

• Test the contact integrity of the wall outlet using a receptacle

tension tester such as a Woodhead 1760 or a Safeplug 1700.

• Test the branch circuit for ground integrity and branch circuit

protection.

• Do not plug in the unit if the switch, receptacles, or power cord

have been damaged or if the ground prong is missing from the

plug. If repairs are ever needed, they should be performed by a

qualied electrician.

• Note: This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment

is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual,

may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to

correct the interference at his own expense.

External Power

The Yes Cart for Tablets comes with two power receptacles on the

back of the cart. When the power switch is in the up ON position, these

receptacles receive power and the indicator light is illuminated.

Doors and Locks

The doors on each cart feature a two-point keyed locking system to

protect your devices. To open a door, lift the bottom of the handle and

rotate it to the inside of the unit. Your unit shipped with 2 keys. Contact

Customer Care for replacements.

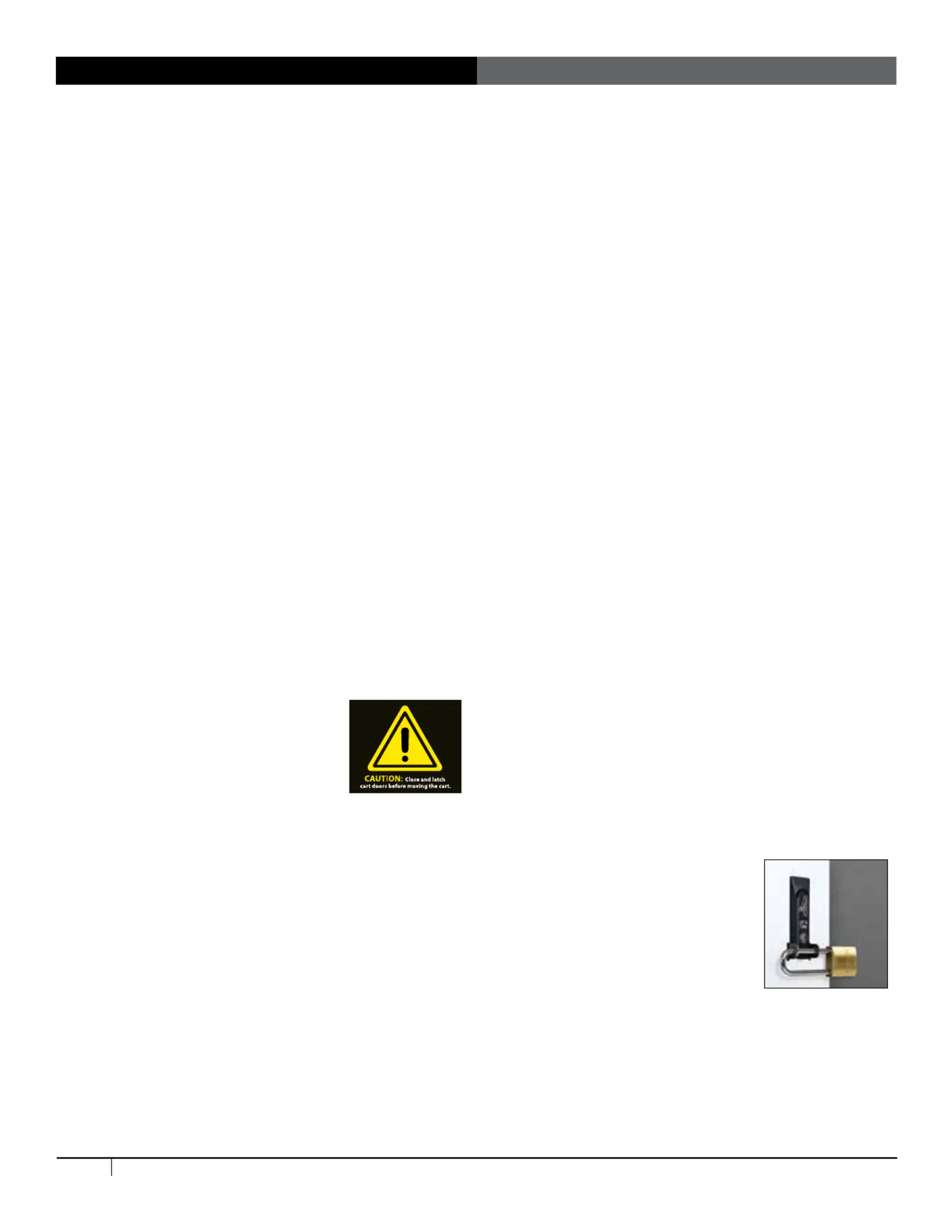

For added security, each front door features

hasps to hold your own padlock (maximum

shackle dia 7mm; minimum shackle height

51mm). When installed, your padlock restricts

access to the handle so the unit can’t be

opened.

To protect each carts’ contents and structural

integrety, latch cart doors before moving the cart.

2 of 4

300-5606-00 rev. E 11/16

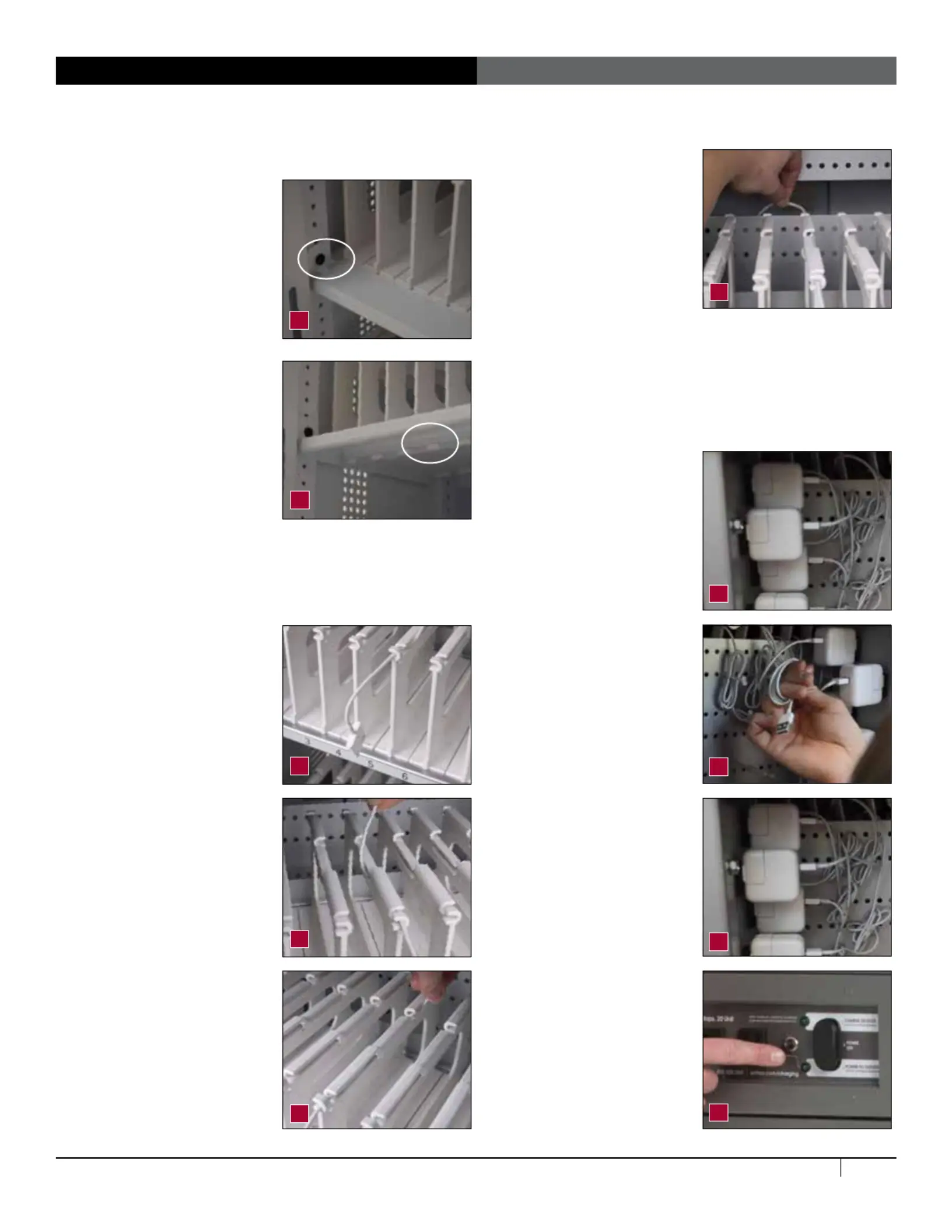

• Feed the rest of the cord into

the IT area. [Image F]

• Slide devices into bays so the

power inlet is convenient to

the front of the bay.

• Use the adhesive bay label

stickers to number each bay.

In the back IT area of the cart - READ QUICK GUIDE FIRST!

• Plug in each power adapter, then poke cable clips into the holes

in the pegboard divider – one cable clip per adapter should

do. You'll coil each cord and secure it into the cable clip before

plugging it into the adapter. [Image G]

• A great technique for coiling

cables is to wind them around

two ngers before securing

them in the cable clips.

[Image H] Be sure to leave

enough slack in your cord so

it can plug into the adapter.

• Plug the cord into the adapter.

[Image I]

• For devices with large power

adapters, rst bundle the

cord and adapter together to

save space, then plug in the

adapter. Finally, use cable

clips to secure the bundle to

the pegboard divider.

• Turn the power switch to the

OFF position before plugging

the cart into the wall.

[Image J]

Loading Devices, Cable Management

In the front User area of the cart

• Check that the vertical spacing

of the shelves ts your devices.

To adjust shelf height, the Anthro

driver to loosen (not remove)

the 2 screws that attach the left

side of the shelf. Lift the left side

off the screws and pull the shelf

to the left to free the tabs on

the right. Set aside the shelf.

Remove and reinstall the screws

and shelf at the desired height.

[Image A]

• Check that the horizontal

spacing of the bay dividers ts

your devices and cases. To

move the dividers and adjust

the bay width, press back on

the divider tab under the shelf

that connects the divider to the

shelf until the divider pops free. If your ngers don't t, try a at-head

screwdriver. To install the divider, angle the divider into a slot at the back

of the shelf, then tilt the divider into place at the front of the shelf. [Image

B] Number each bay with the provided labels.

• To route the cords, route one

charging cord along the top of

each divider. Make sure that

the cord end that goes into the

device is at the front of the bay

and the power end goes through

the center panel and into the IT

area.

• Leave enough slack in front

(approximately 4.5”; use

the height of the divider as

a measuring stick) so users

can plug in the device without

straining the cord. [Image C]

• Weave the cord around the

short hook at the front of the

divider, then back and forth

through the three long channels

along the top of the divider,

including the center channel

that’s lower than the others, and

nally through the short hook at

the back of the divider. [Image

D and E]

300-5606-00 rev. E 11/16 3 of 4
