Pagina 1/3
EMC56W / EMC58B
CAR / BOAT STEREO WEATHER SHIELD
INSTALLATIO / OWNER’S MANUALN
EMC56W / EMC58B
CAR / BOAT STEREO WEATHER SHIELD
INSTALLATIO / OWNER’S MANUALN
EMC56W / EMC58B
Front Gasket
stereo’s
mounting sleeve
Din Stereo
Weather Shield base
and lid assembly
Rear Gasket
INSTALLATION

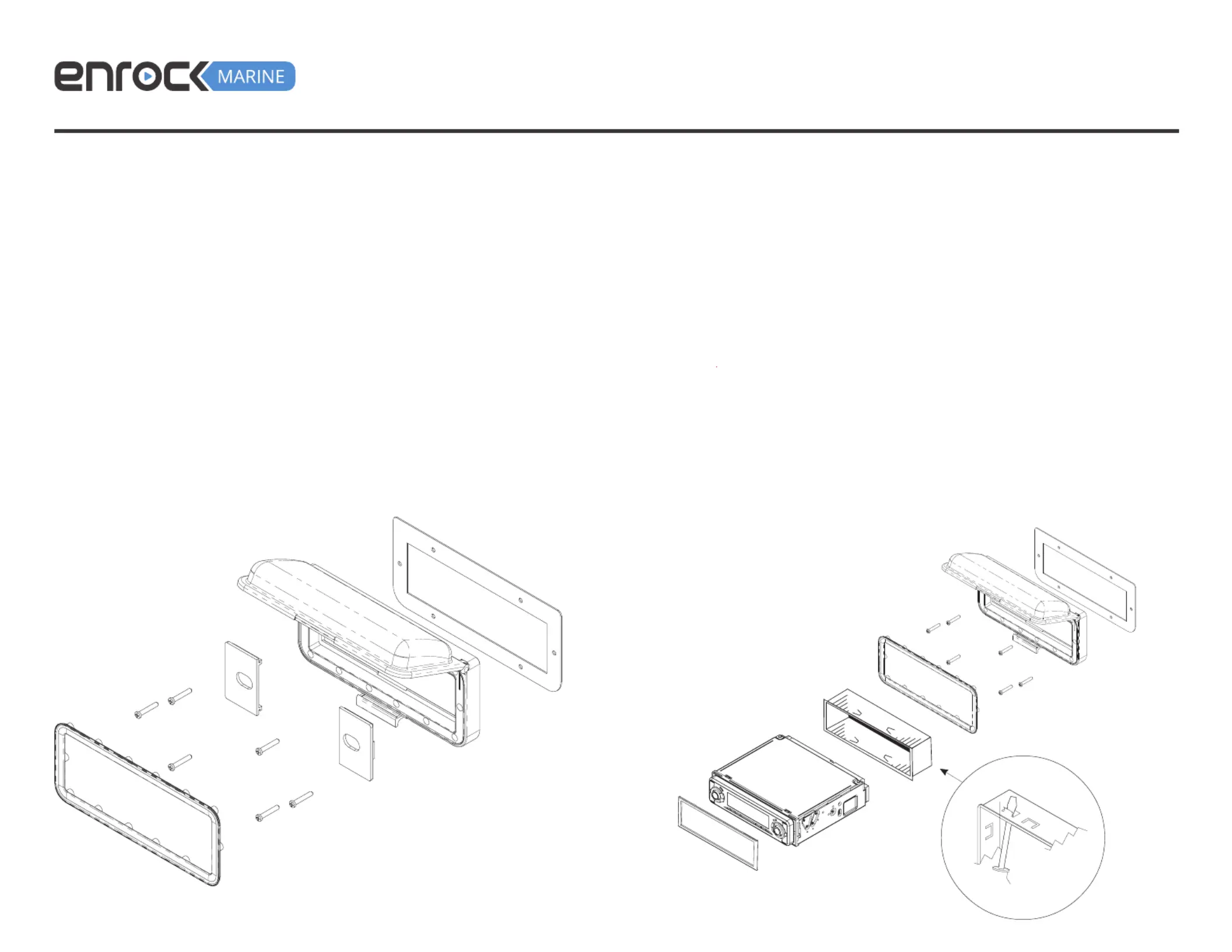

DIN UNIT INSTALLATION
1) Using the supplied drilling template, trace the opening and drilling
location outline onto the proper mounting location. Cut out and drill the
proper openings. Note: The mounting screws require a 3/32” drilled hole.
2) Position the rear gasket onto the backside of the Weather Shield, using
proper care to align the gasket.
3) Using the supplied Phillips head screws, attach the Weather Shield, using
proper care to align the gasket.
4) Press the front gasket into the front side of the Weather Shield, using
proper care to align the gasket.
5) Insert the stereo’s mounting sleeve in the opening of the base. Secure the
mounting sleeve to the mounting surface by bending the tabs outward
(see below) Note: The mounting sleeve is supplied with your stereo.
6) Connect the stereo wiring harness to the car/boat. Insert the stereo into
the sleeve, making sure the stereo locks into place properly.
INTRODUCTION

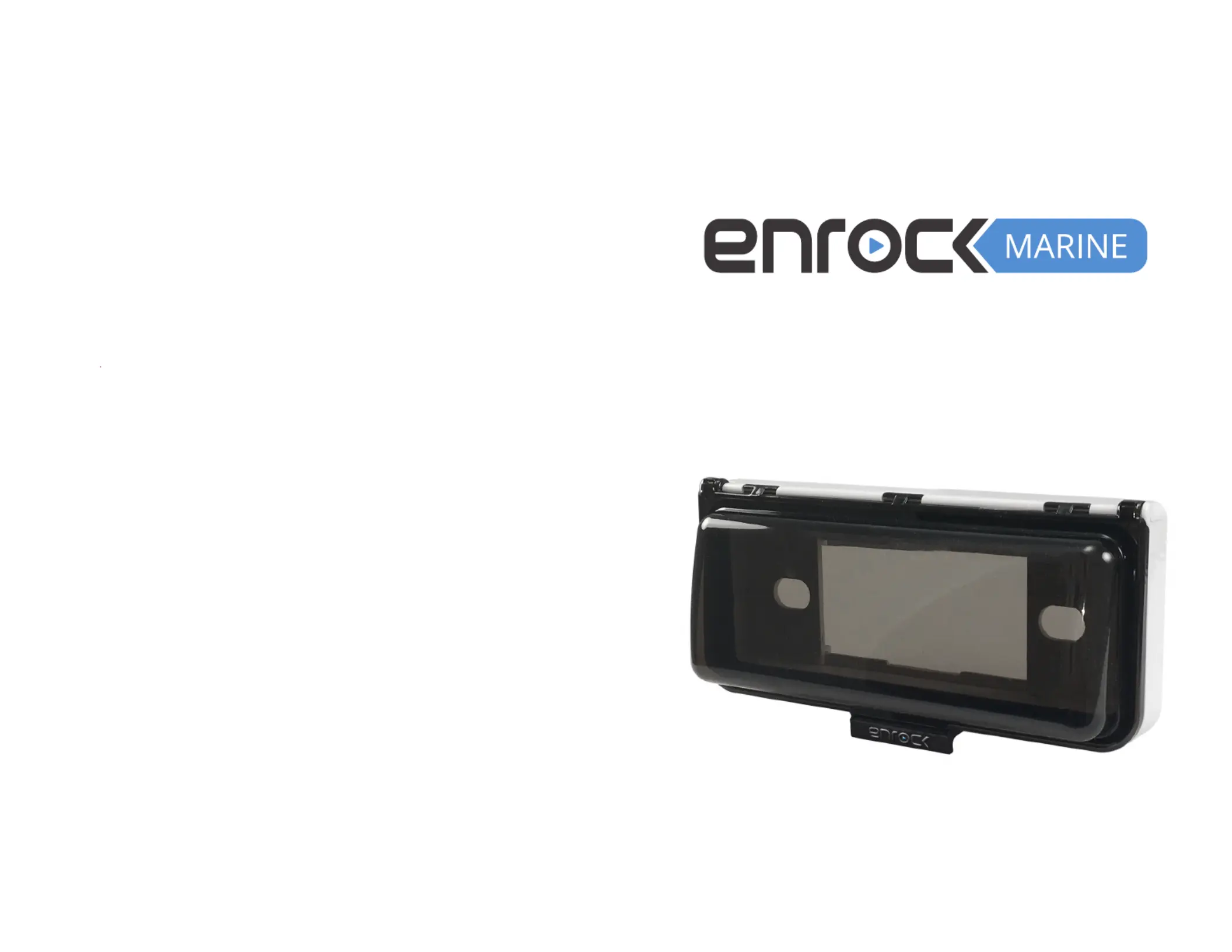

The Enrock Weather Shield has been designed for the marine environment.
When the cover is down and closed, it meets with special gaskets positioned
in the front and rear of the base plate, forming a seal to protect your stereo.
The cover provides quick and easy stereo accessibility.
The Enrock Weather Shield works with most shaft and din style radios.
PARTS LIST
Weather Shield base and lid assembly (1)
Shaft Tabs (2)
Front Gasket (1)
Rear Gasket (1)
1” Phillips head screws (6)
Drilling Template (1)
Instruction Manual (1)
Front Gasket
Shaft Tabs
Weather Shield base
and lid assembly
Rear Gasket
Shaft Tabs
EMC56W / EMC58B
INSTALLATION

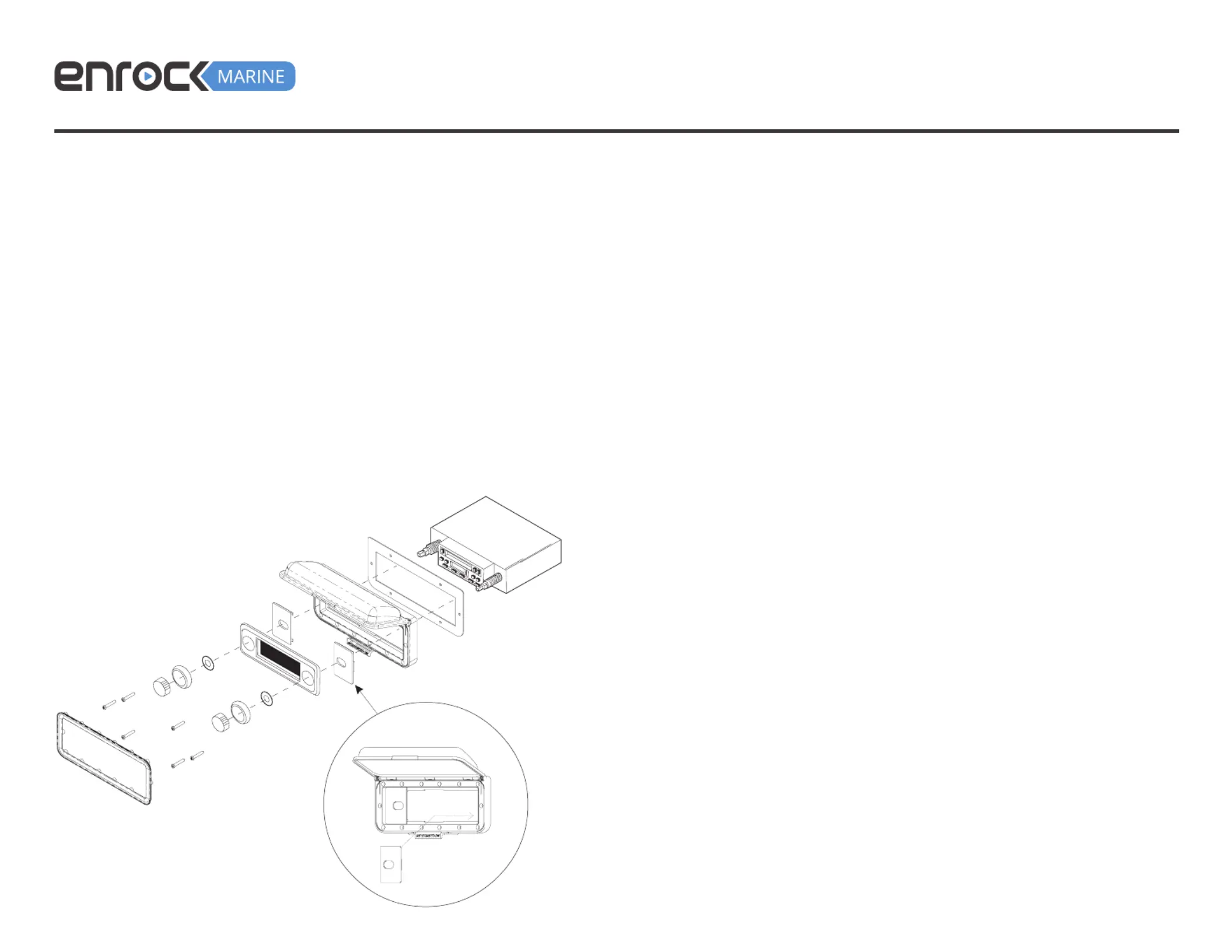

SHAFT UNIT INSTALLATION
1) Using the supplied drilling template, trace the opening and drilling
location outline onto the proper mounting location. Cut out and drill the
proper openings. Note: The mounting screws require a 3/32” drilled hole.
2) Insert the shaft tabs in the weather shield base (see below)
3) Mount the stereo to the base using the mounting shaft tabs.
4) Position the rear gasket onto the backside of the Weather Shield, using
proper care to align the gasket.
5) Connect the stereo wiring harness to the car/boat, and slide the stereo
and base into the pre-cut opening.
6) Using the supplied Phillips head screws, attach the weather shield base,
with the shaft stereo mounted to it, to the pre-cut opening.
7) Press the front gasket into the front side of the weather shield, using
proper care to align the gasket.
Front Gasket
Shaft Tabs
Shaft Tabs
Weather Shield base
and lid assembly
Rear Gasket
Shaft-Style
Stereo
LIMITED WARRANTY
Enrock warrants this product to be free from defects in material and
workmanship for a period of 90 days from purchase. The Enrock product is
sold with the understanding that the purchaser has independently
determined the suitability of this product. This warranty is offered to the
original purchaser of the product only. This warranty does not cover the
product if physically damaged, subject to negligence or misuse, abuse,
alteration, accident, or an act of GOD. This warranty does not apply to
product which has water or physically damaged by accident or which has
been misused, disassembled or altered.
The original dated sales slip or proof of purchase will establish warranty
eligibility. If the product should prove defective within the warranty period,
return the product with proof of purchase to Enrock. Enrock, at its option,
will replace or repair the product free of charge and return the product.
In no event shall Enrock be responsible for claims beyond the replacement
value of the defective products or in any way be liable or responsible for
consequential or incidental damages. No implied warranties, whether for
fitness or any particular use or otherwise, except as set forth above (which is
made expressly in lieu of all other warranties) shall apply to products sold by
Enrock. Enrock cannot be held responsible for
discrepancies/inconsistencies that may occur due to automotive
manufacturing changes or option.
Product specificaties
| Merk: | Enrock Marine |
| Categorie: | Niet gecategoriseerd |
| Model: | EMC56W |
