Pagina 1/2
Elkay 2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2005 Elkay
Rev. C (2/05) Part No. 74180001
www.elkayusa.com
®

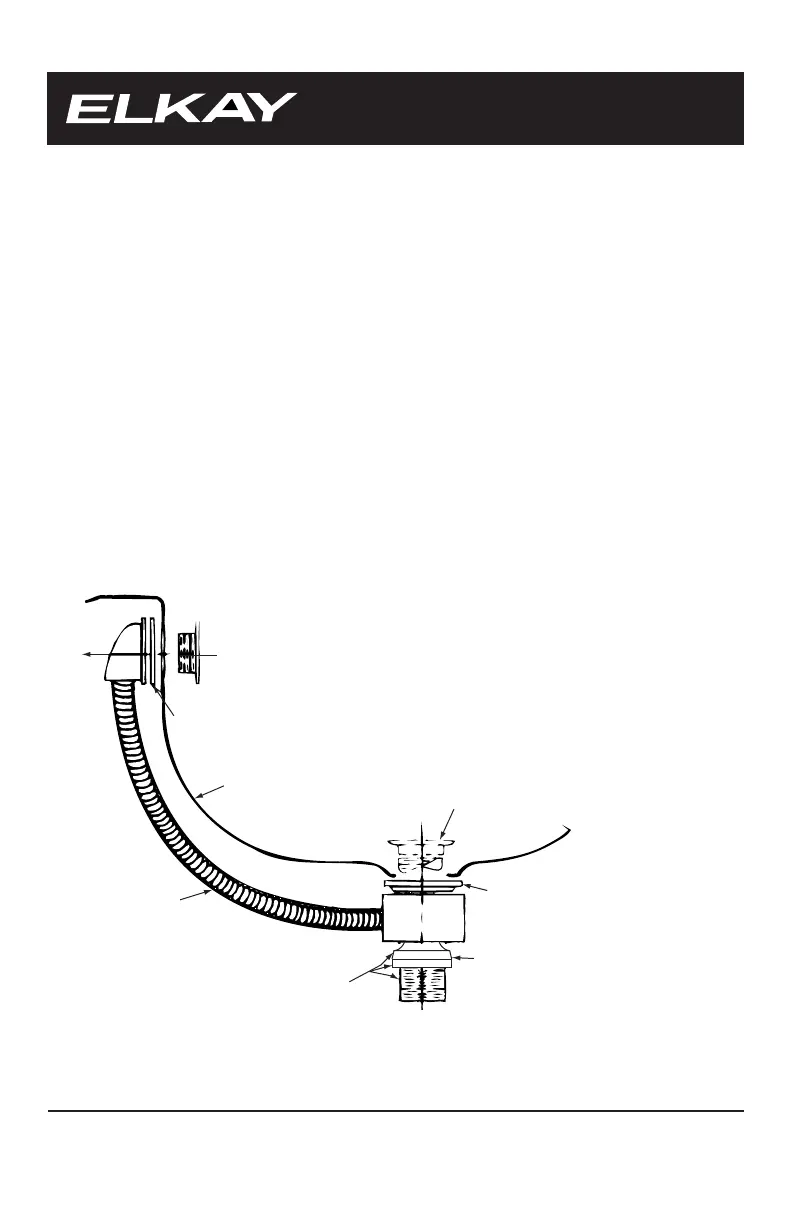

Lavatory Sink Overflow Assembly
NOTE: Install overflow before mounting lavatory sink into counter.
1. Remove overflow grill plug (A) from assembly, and mount thru hole in the
side of the sink.
NOTE: Rubber gasket to be against underside of lavatory sink as
illustrated.
2. Line up waste end (B) and waste opening. Insert waste fitting and install
following the manufacturer’s directions.
NOTE: Be sure rubber mack washer is positioned between lavatory
sink and overflow fitting as illustrated.
3. Tighten overflow grill plug.
4. Tighten waste fitting.
(A) OVERFLOW GRILL PLUG
RUBBER GASKET
LAVATORY
SINK
OVERFLOW
TUBING
RUBBER MACK WASHER
WASTE FITTING
(FURNISHED BY OTHERS)
RUBBER WASHER,
FRICTION WASHER
AND WASTE FITTING
(FURNISHED BY OTHERS)
(B) WASTE END OF OVERFLOW
Installation Instructions
Elkay 2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2005 Elkay
Rev. C (2/05) Part No. 74180001
www.elkayusa.com
®
Lavatory Sink Overflow Assembly
NOTE: Install overflow before mounting lavatory sink into counter.
1. Remove overflow grill plug (A) from assembly, and mount thru hole in the
side of the sink.
NOTE: Rubber gasket to be against underside of lavatory sink as
illustrated.
2. Line up waste end (B) and waste opening. Insert waste fitting and install
following the manufacturer’s directions.
NOTE: Be sure rubber mack washer is positioned between lavatory
sink and overflow fitting as illustrated.
3. Tighten overflow grill plug.
4. Tighten waste fitting.
(A) OVERFLOW GRILL PLUG
RUBBER GASKET
LAVATORY
SINK
OVERFLOW
TUBING
RUBBER MACK WASHER
WASTE FITTING
(FURNISHED BY OTHERS)
RUBBER WASHER,
FRICTION WASHER
AND WASTE FITTING
(FURNISHED BY OTHERS)
(B) WASTE END OF OVERFLOW
Installation Instructions
