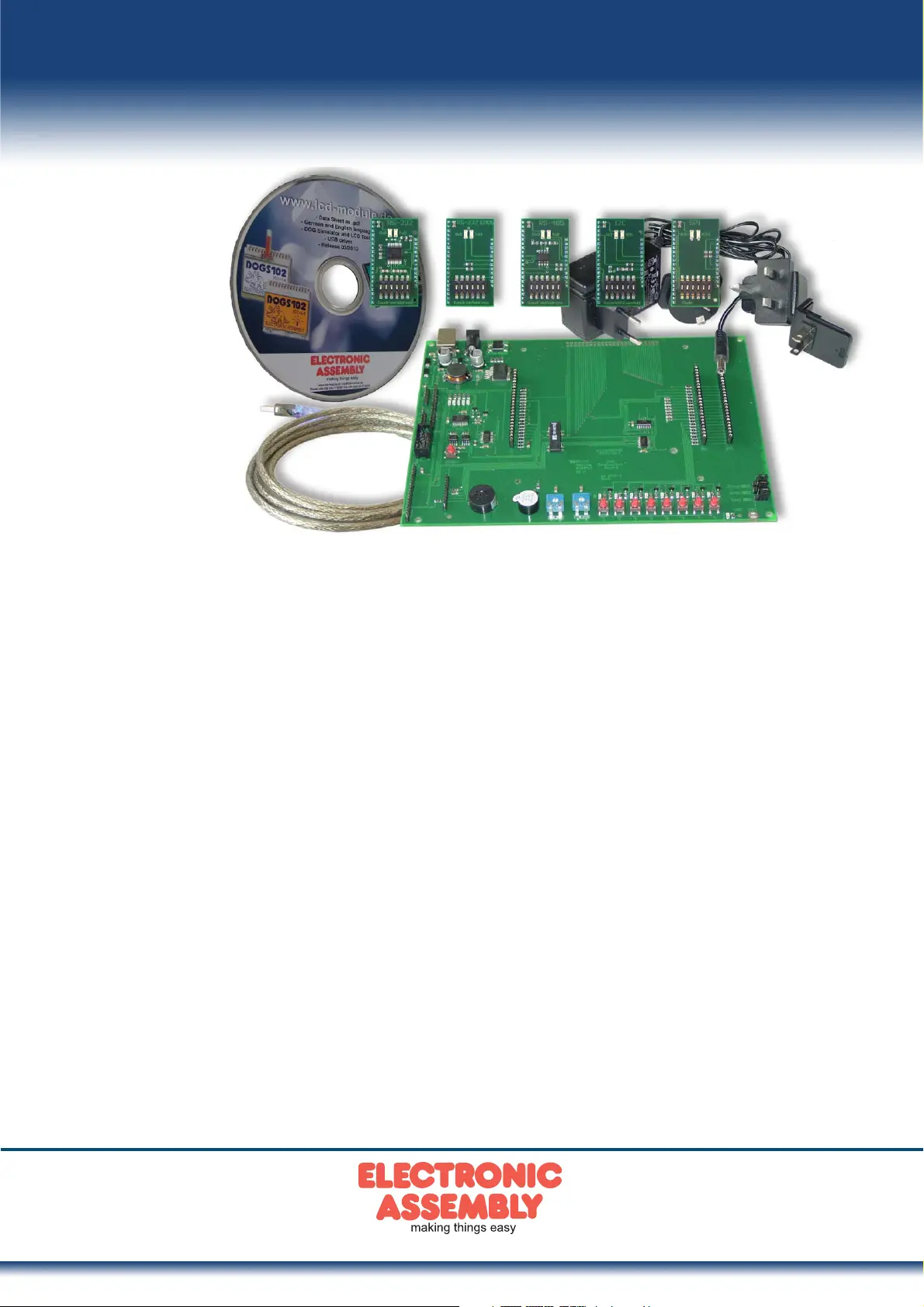

EVALUATION-BOARD
for eDIP-series
Issue 03.2015
Zeppelinstr. 19
·
D-82205 Gilching
·
Phone +49-(0)8105-778090
·
Fax +49-(0)8105-778099
·
www.lcd-module.de
·
TECHNICAL DATA
*EVALUATION BOARD DESIGNED FOR SHORTEST DEVELOPMENT TIME
*USB-INTERFACE TO CONNECT DIRECTLY YOUR PC; NO EXTRA SUPPLY NEEDED
*BUTTONS, LEDS AND POTENTIOMETERS TO INTERFACE IN- AND OUTPUTS OF THE
DISPLAYS
*LEDS TO SHOW DATA TRAFFIC
*WIDE VOLTAGE RANGE +3.3V..+5V
*INCL. USB-CABLE
*BEEPER AS FEEDBACK FOR TOUCH
*OPTIONAL ADAPTER BOARD EA 9777-2PE EXPANDS TO ALL INTERFACES:
* „REAL“ RS-232* “MICROCONTROLLER“ RS-232 (CMOS-LEVEL)
* RS-485* SPI (CMOS-LEVEL)
* I²C (CMOS-LEVEL)
ORDERING CODES
STARTERKITS
INCLUDES: Display incl. Touch + EA 9777-3USB + EA 9777-2PE + DVD + USB-Cable
*EA eDIP320B-8LWTP (320x240 dots, blue/white negative)EA EVALeDIP320B
*EA eDIP320J-8LWTP (320x240 dots, black/white positive)EA EVALeDIP320J
INCLUDES: Display incl. Touch + EA 9777-3USB + EA 9777-2PE + AC adaptor + DVD + USB-Cable
*EA eDIPTFT70-ATP (800x480 dots, 16-Bit color)EA EVALeDIPTFT70
*EA eDIPTFT57-ATP (640x480 dots, 16-Bit color)EA EVALeDIPTFT57
SPARE PARTS
EVALUATION BOARD FOR USB (WIN2000/XP/VISTA/7 32+64 bit)EA 9777-3USB
PORT-EXPANSION (RS-232, I2C, SPI, RS485) FOR EA 9777-2USBEA 9777-2PE
PERFECT
DEVELOPMENT TOOL!
