Call Transmitter

EN

Technical details

Frequency: 868.30 MHz

Radiated power: 0.11 mW

Modulation: FSK

Coding: Easywave A,

EasywavePlus

Power supply: 1x 3-V-battery, CR2032

Operating

temperature: -20 °C to +60 °C

Range: free-eld: approx. 150 m

buildings: approx. 30 m

Degree of protection: IP65

Dimensions:

RT26: 38x46x14 mm

(without wrist strap)

RT27: Ø 41 mm x 13 mm

(without necklace)

RT28: Ø 38 mm x 13 mm

Weight:

RT26: 15 g (without wrist strap)

RT27: 12 g (without necklace)

RT28: 12 g

Scope of delivery

Call Transmitter incl. battery, operating instruction

RT26: wrist strap,

RT27: necklace,

RT28: adhesive pad

Intended use

These Call Transmitters may only be used to ope-

rate Easywave radio controls.

The manufacturer shall not be liable for any dama-

ge caused by improper or non-intended use.

Safety advice

Do not make any unauthorized alterati-

ons or modications to the transmitter!

Note also the operating instructions of the radio

receivers!

Keep the transmitter away from children!

Have faulty devices checked by the manufactu-

rer!

Keep the batteries out of the reach of children!

Start-up

1. Program the transmission code into the radio

receiver. For further informations, please read

the operating instructions of the radio receiver.

2. Mount the appropriate accessories.

Operating the transmitter

Press the transmit button.The transmitter‘s LED

lights up. The transmitter transmits as long as the

button is pressed.

After max. 36 seconds, the transmission process

is stopped automatically. In case of a weak battery

the transmission process is stopped automatical-

ly after max. 5 seconds. Press the transmit button

again to repeat the transmission process.

Battery check

The transmitter has a battery check function, which

monitors the capacity of the battery cyclically.

If the battery is weak, the LED ashes for about 3

seconds after releasing the transmitter button. At

the end of the transmission process, an undervol-

tage telegram is transmitted.

In case of the transmitter button not being pressed

for a long time, the battery check is executed at

least once every 24 hours. If a weak capacity is

detected an undervoltage telegram is sent automa-

tically.

This telegram can be evaluated by adapted Easy-

wave receivers. For further informations, read the

operating instructions of the corresponding recei-

ver.

Replacing the battery

We recommend having the battery replaced by

your retailer.

You can nd detailed instructions for exchanging

the battery on our website.

Use the ACC-TOO-01-23P housing key to change

the battery.

Trouble shooting

- If the LED does not light up at all: exchange the

battery or make sure that the polarity of the bat-

tery is correct.

- If the LED ashes permanently during the trans-

mission procedure: exchange the battery.

- If the radio receiver doesn´t react: move closer

to the radio receiver or re-transmit the transmis-

sion code to the radio receiver.

Disposal

Waste electrical products and batteries may not

be disposed of with household waste!

Dispose the waste product via a collection

point for electronic scrap or via your spe-

cialist dealer.

Dispose used batteries in a recycling bin for

batteries.

Put the packaging material into the recy-

cling bins for cardboard, paper and plastics.

Warranty

Within the statutory warranty period we undertake

to rectify free of charge by repair or replacement

any product defects arising from material or pro-

duction faults.

Any unauthorized tampering with, or modications

to, the product shall render this warranty null and

void.

Conformity

Hereby, ELDAT EaS GmbH declares that the radio

equipment type RT26, RT27 and RT28 is in compli-

ance with Directive 2014/53/EU.

The full text of the EU declaration of conform-

ity is available at the following internet address:

www.eldat.de

Service

If the device does not work properly despite proper

handling or in case of damage, please contact the

manufacturer or your retailer.

ELDAT EaS GmbH

Schmiedestraße 2

15745 Wildau

Germany

Phone: + 49 (0) 33 75 / 90 37-310

Fax: + 49 (0) 33 75 / 90 37-90

Internet: www.eldat.de

E-Mail: [email protected]

UM179228B 0222 EN

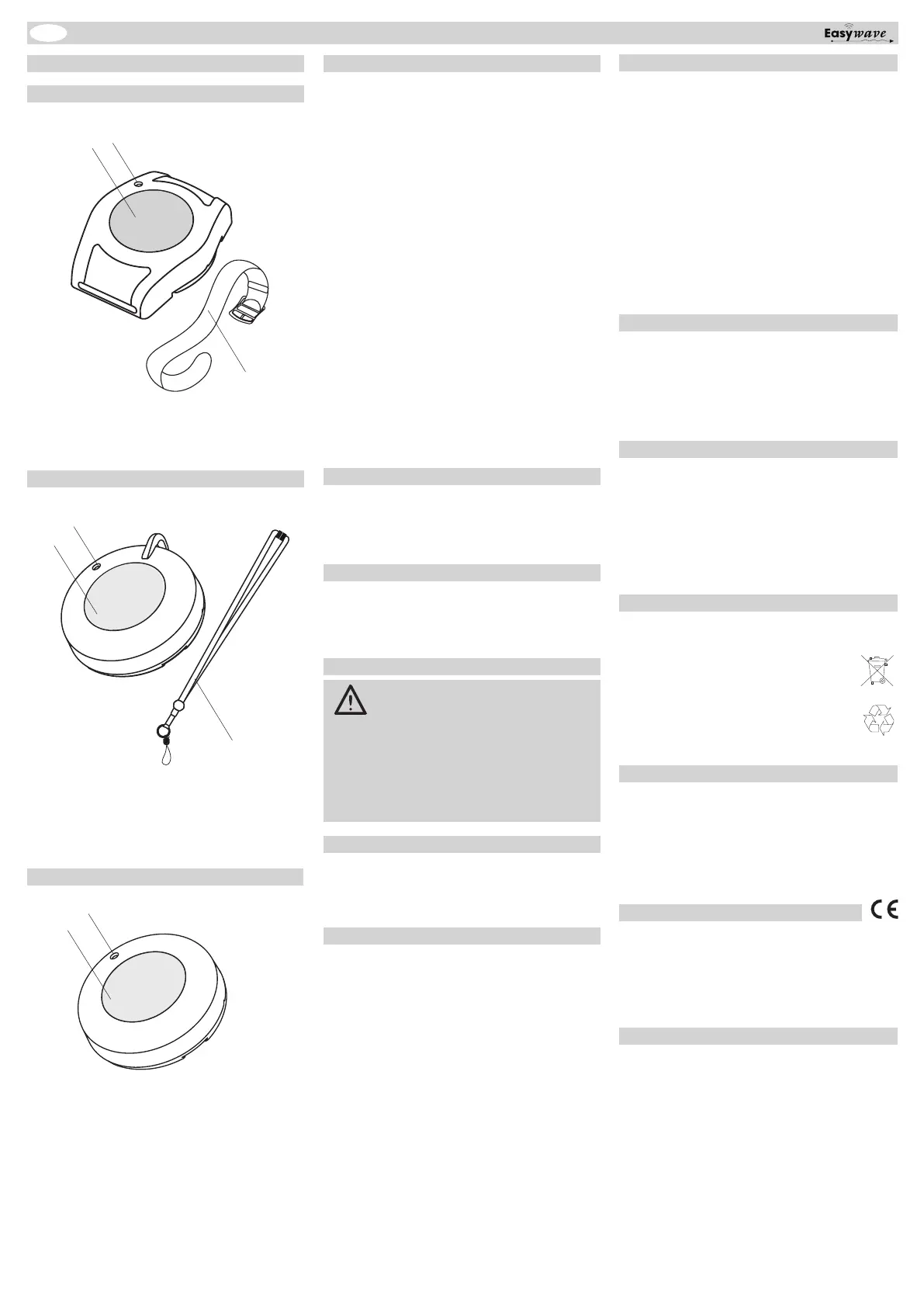

Models

RT26 Wristband Transmitter

RT27 Necklace Transmitter

RT28 Push-Button Transmitter

1 LED

2 transmit button TX

3 wirst strap

4 necklace

RT28E5001-11-41K red transmit button

RT28E5001-11-23K grey transmit button

RT27E5001-11-23K red transmit button

RT27E5001B11-23K grey transmit button

1

2

1

2

1

2

3

4

RT26E5001-12-23K red transmit button

RT26E5001A12-41K grey transmit button
