Unpacking: Thank you for purchasing the Active Wave 250™ by
©Elation®. Every Active Wave 250™ has been thoroughly tested and
has been shipped in perfect operating condition. Carefully check the
shipping carton for damage that may have occurred during shipping.
If the carton appears to be damaged, carefully inspect your fixture for
any damage and be sure all equipment necessary to operate the unit
has arrived intact. In the event damage has been found or parts are
missing, please contact our toll free customer support number for fur-
ther instructions. Please do not return this unit to your dealer without
first contacting customer support.
Introduction: The Active Wave 250™ is a six channel DMX intelligent
scanner that uses 11 colors, 7 gobo patterns, (seperate wheels) and
a 250w discharge lamp to create a bright and colorful light show. This
unit can also run as a stand alone, sound-active unit, or in a Master/
Slave configuration. The Active Wave 250
™
comes with several built in
programs and is best used in multiples of four. For best results use fog
or special effects smoke to enhance the beams projections.
Customer Support: Elation provides a customer support line, ©®
to provide help and to answer any question should you encounter
problems during your set up or initial operation. You may also visit us
on the web at www.elationlighting.com for any comments or sugges-
tions. Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m.
Pacific Standard Time.
Voice: (323) 582-3322
Fax: (323) 582-3311
E-mail: support@elationlighting.com
Warning! To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact Elation©®.
Active Wave 250™ General Information
© ®Elation - www.elationlighting.com - Active Wave 250™ Instruction Manual Page 2
User Instructions
© ®Elation - www.elationlighting.com - Active Wave 250™ Instruction Manual Page 3
• Micro-Stepping Motors for Smooth Color and Gobo Transitions
• DMX-512 Protocol Compatible (Uses Six DMX Channels)
• 7 Gobo Patterns Plus Spot
• 11 Colors Plus White
• Master/Slave Operation
• Internal Microphone
• Variable Speed Strobe Function
• Rotating Gobos and Gobo Shake
• Replaceable Gobos
• Barral Mirror
• ZB-MSD250
• LED Display Menu
• 2 Year Warranty
Active Wave 250™ Features
The Active Wave 250™ carries a two year limited warranty. Please fill
out the enclosed warranty card to validate your purchase. All returned
service items whether under warranty or not, must be freight pre-paid
and accompany a return authorization (R.A.) number. The R.A. num
-
ber must be clearly written on the outside of the return package. A
brief description of the problem as well as the R.A. number must also
be written down on a piece of paper included in the shipping carton.
If the unit is under warranty, you must provide a copy of your proof of
purchase invoice. You may obtain a R.A. number by contacting our
customer support team on our toll free customer support number. All
packages returned to the service department not displaying a R.A.
number on the outside of the package will be returned to the shipper.
Active Wave 250™ Product Registration
© ®Elation - www.elationlighting.com - Active Wave 250™ Instruction Manual Page 4
To optimize the performance of this product, please read these operating
instructions carefully to familiarize yourself with the basic operations of
this unit. These instructions contain important safety information regard-
ing the use and maintenance of this unit. Please keep this manual with
the unit, for future reference.
Active Wave 250™ General Instructions Active Wave 250™ Discharge Lamp Warning

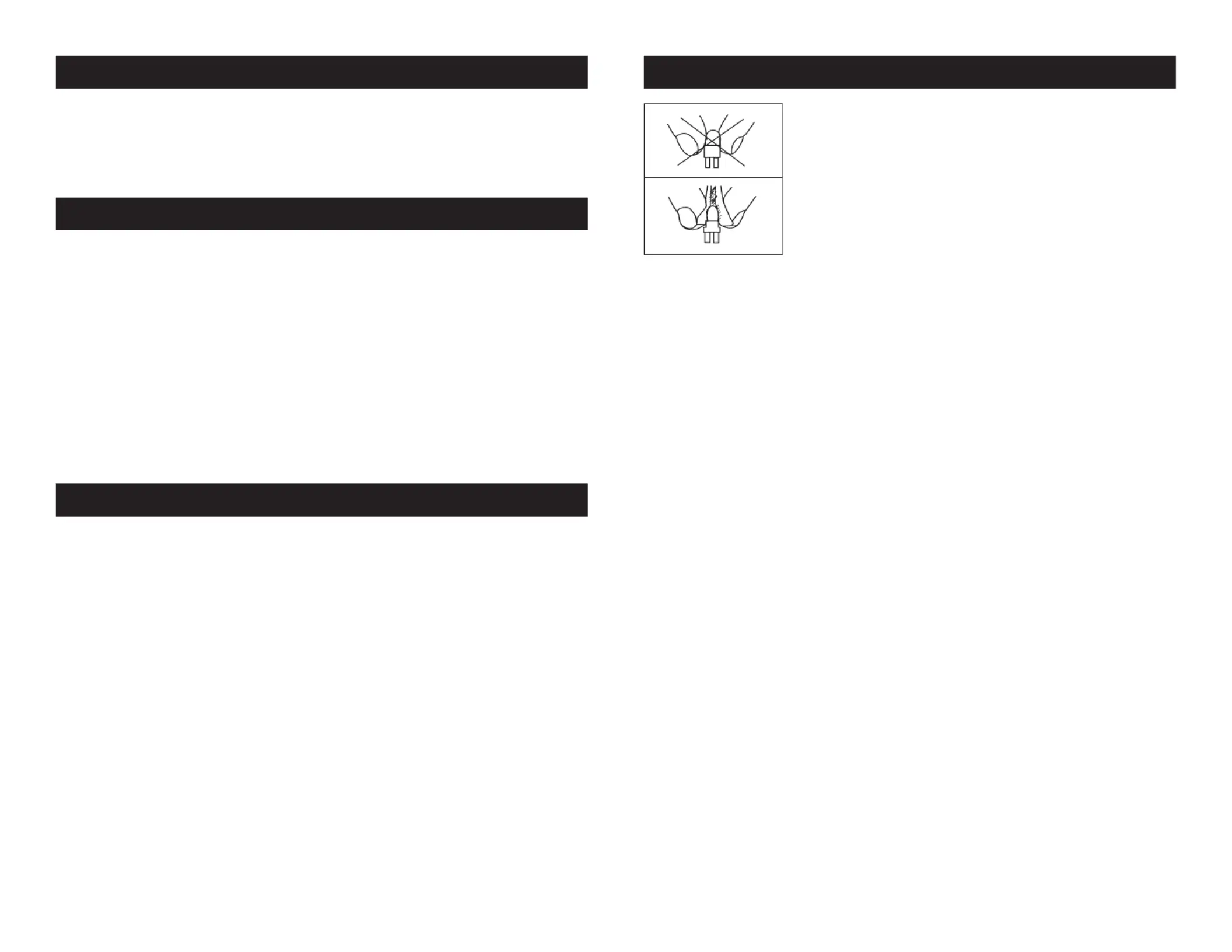

This fixture is fitted with a discharge lamp which
are highly susceptible to damage if improperly
handled. Never touch the lamps with your bare
fingers as the oil from your hands will shorten
lamp life. Also, never move the fixture until the
lamps have had ample time to cool. Remember,
lamps are not covered under warranty condi
-
tions.
This unit emits intense UV radiation which is harmful to the eyes and
skin. The intense luminance of the lamp can cause severe damage
to the retina. Never operate this unit without it’s covers, these covers
have been specially designed to shield against UV radiation.
Epileptic Warning: Those suffering from epilepsy should avoid looking
directly into the lamp at all times.
Avoid switch the fixture on and off repeatedly in short intervals as this
will reduce lamp life and intensity.
To achieve the intensity associated with discharge lamps, these lamps
use gas sealed in a high pressure environment to emit a brilliant output.
Due to the high pressure involved with the construction of the lamp,
the lamp may explode during prolonged extensive use. This risk is
increased with age, added care is encouraged when dealing with older
lamps. Extreme caution should be used when operated this or any
fixture fitted with a gas discharge lamp. Never open this unit while in
use.
PLEASE READ THE PROPER LAMP REPLACEMENT INSTRUCTIONS
LOCATED ON PAGE 16.
© ®Elation - www.elationlighting.com - Active Wave 250™ Instruction Manual Page 6© ®Elation - www.elationlighting.com - Active Wave 250™ Instruction Manual Page 5
• To reduce the risk of electrical shock or fire, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt-
age for your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken.
• Do not attempt to remove or break off the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and fire in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience recep-
tacles, and the point where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 18 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Active Wave 250™ Safety Precautions
FRONT

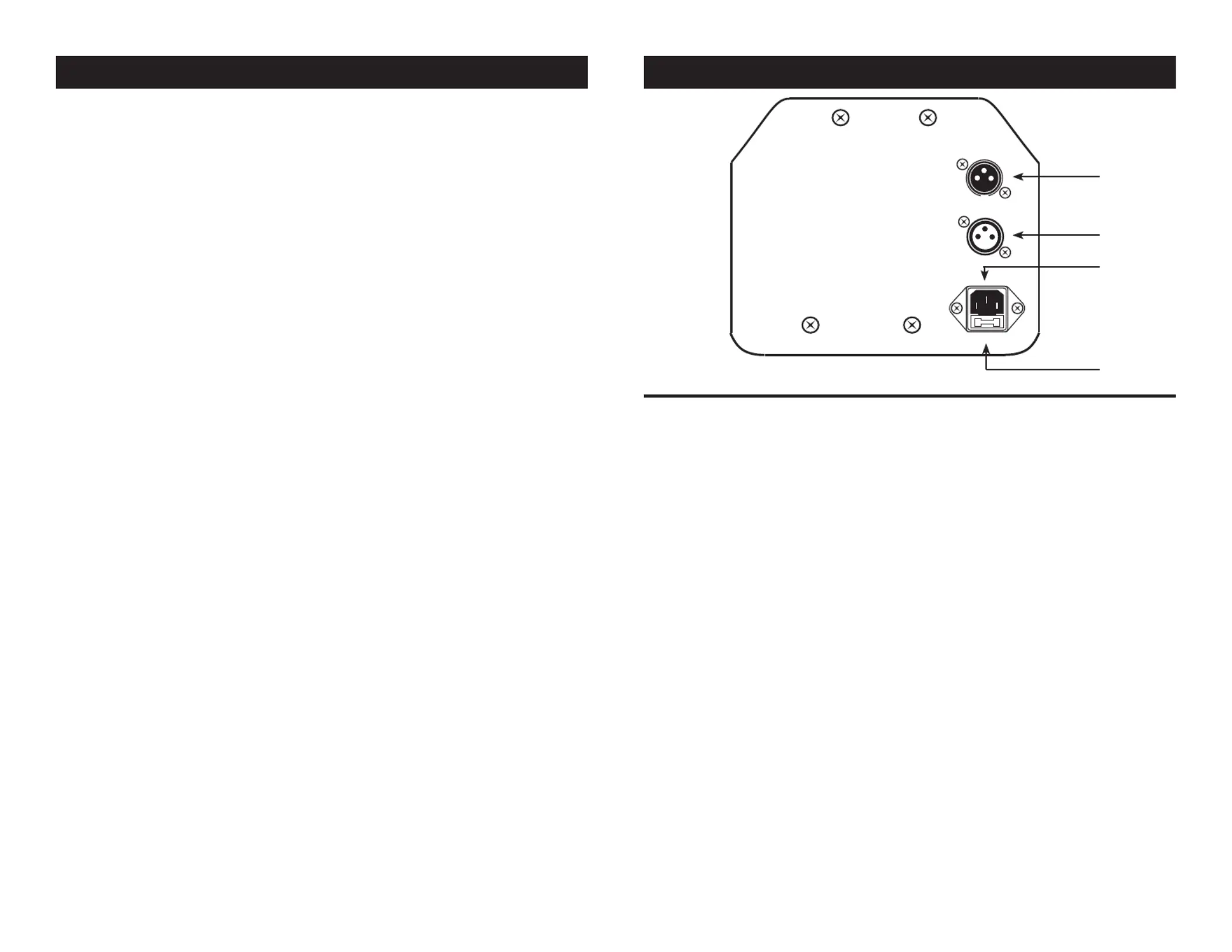

1. XLR Input Jack - This jack is used to accept an incoming DMX
signal or Master/Slave signal.
2. XLR Output Jack - This jack is used to transmit the incoming
DMX signal to another DMX fixture, or transmit a Master/Slave signal
to the next Active Wave 250™ in the chain. For best results in DMX or
Master/Slave mode terminate this jack if it is the last unit in the chain.
See “Terminator” on page 9.
3. Power Cord Inlet - This unit is equipped with a removable I.E.C.
power cord. Be sure to only use the power cord included with the unit,
this cord is designed to match the electrical requirements of the unit.
Other cords may cause the unit to overheat or malfunction. Voltage
may vary from venue to venue, when connecting this unit to a power
supply be sure to connect to a matching power outlet. Never use
this fixture
if the ground prong has been removed or broken off. The
ground prong is designed to reduce the risk of fire or electrical shock
in the event the unit suffers from an internal short.
4. Fuse Holder - This housing stores a 7 amp GMA protective fuse.
Never defeat the fuse, the fuse is designed to protect the electronics in
the event of severe power fluctuations. Always be sure to replace the
fuse with an exact match as the one being replaced, unless otherwise
told to do so by an authorized Elation service technician.®
1
4
3
2
Active Wave 250™ Controls and Functions
