Pagina 1/16

User Instructions

Air 3500

Noise Reduction Headset

F.01U.177.659 Rev 04 08/2023

Air 3500 Noise Reduction Headset

PROPRIETARY NOTICE

The product information and design disclosed herein were originated by and are the property of

Bosch Security Systems, Inc. Bosch reserves all patent, proprietary design, manufacturing,

reproduction, use and sales rights thereto, and to any article disclosed therein, except to the

extent rights are expressly granted to others.

OPYRIGHT OTICE N

in part, without prior written permission from Bosch is prohibited.

URPOSE OF MANUAL

This manual contains information for the overhaul and servicing of the AIR3500 headset.

ECHNICAL SUPPORT

A liaison between the customer and factory is provided by the Bosch Product Support

Department. Consultation and assistance on technical problems, part information, and

availability of local and factory repair facilities is available. When writing, include all

information concerning problem and email:

Bosch Security Systems, LLC

Email: telexdispatchtechsupport@us.bosch.com

Attn: Aircraft Product Support Mgr

Telephone: 877-863-4188

ARTS ORDERING

Replacement parts may be ordered from our parts department. When ordering, please include the

following information.

• Model Number

• Part Description

• Part Number

• Quantity

Bosch Security Systems, LLC

Attn: Parts Department

Telephone: 800-553-5992

Fax: 402-467-3279

E-mail: repair@us.bosch.com

EPAIRS

In order to maintain the FAA certification, all repairs to the headset must be made only by per-

sons authorized under Part 43 of the Federal Aviation Agency regulations. Bosch offers full sup-

port and repair.

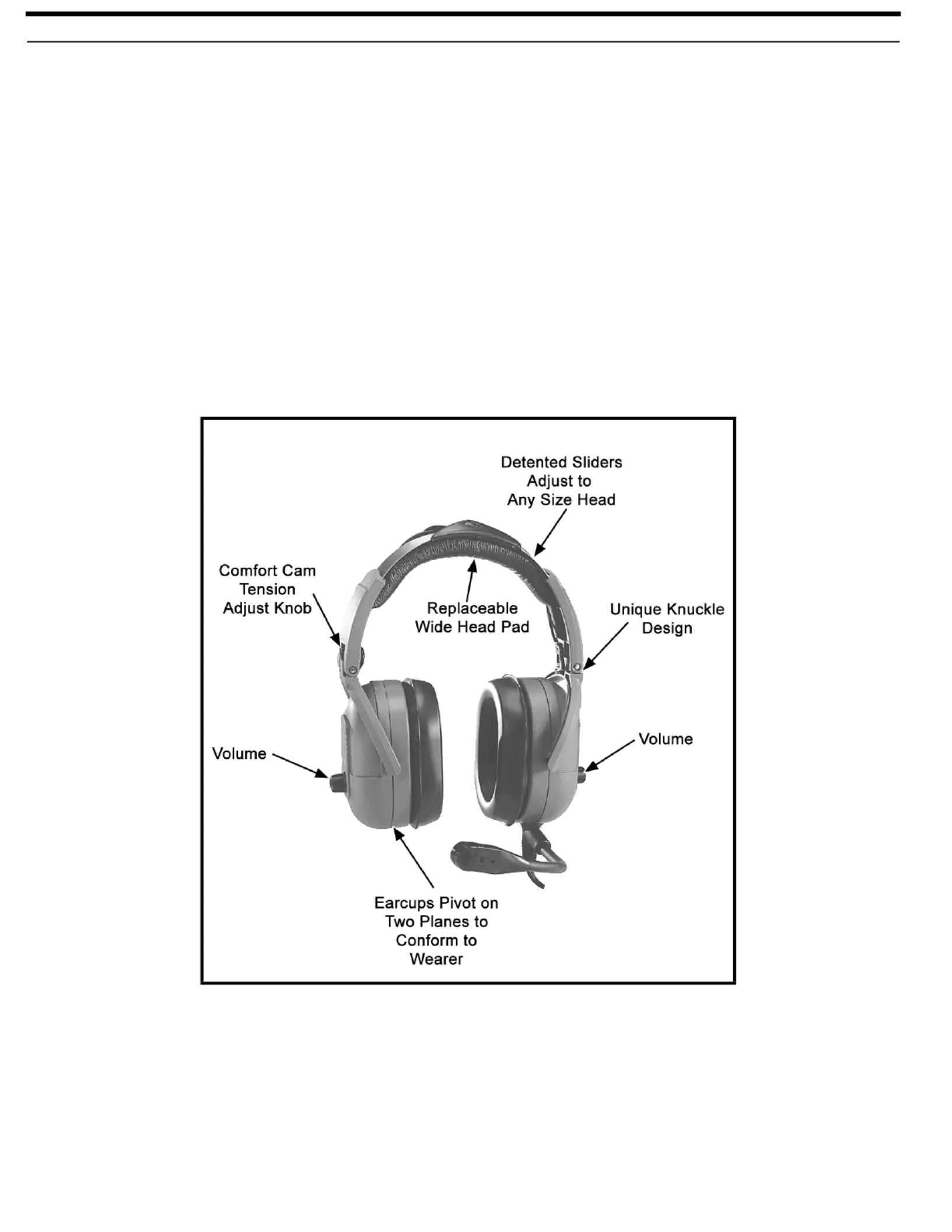

FIGURE 1. Air 3500 Noise Reduction Headset

Table

Contents

Headband Size Adjustment ..................................................................................................................................3

Headband Pressure Adjustment ........................................................................................................................... 4

Left or Right Side Microphone Placement ..........................................................................................................4

Permanently Changing Microphone Side ............................................................................................................5

Connection ...........................................................................................................................................................5

Stereo Mono Switch (fixed-wing version only) ..................................................................................................7

Volume Adjustment .............................................................................................................................................7

Microphone Gain Adjustment .............................................................................................................................7

Ear Cushion Replacement ....................................................................................................................................7

Head Pad Replacement ........................................................................................................................................8

Mic Element Removal .........................................................................................................................................8

Specifications .......................................................................................................................................................9

Exploded View Parts List ..................................................................................................................................10
