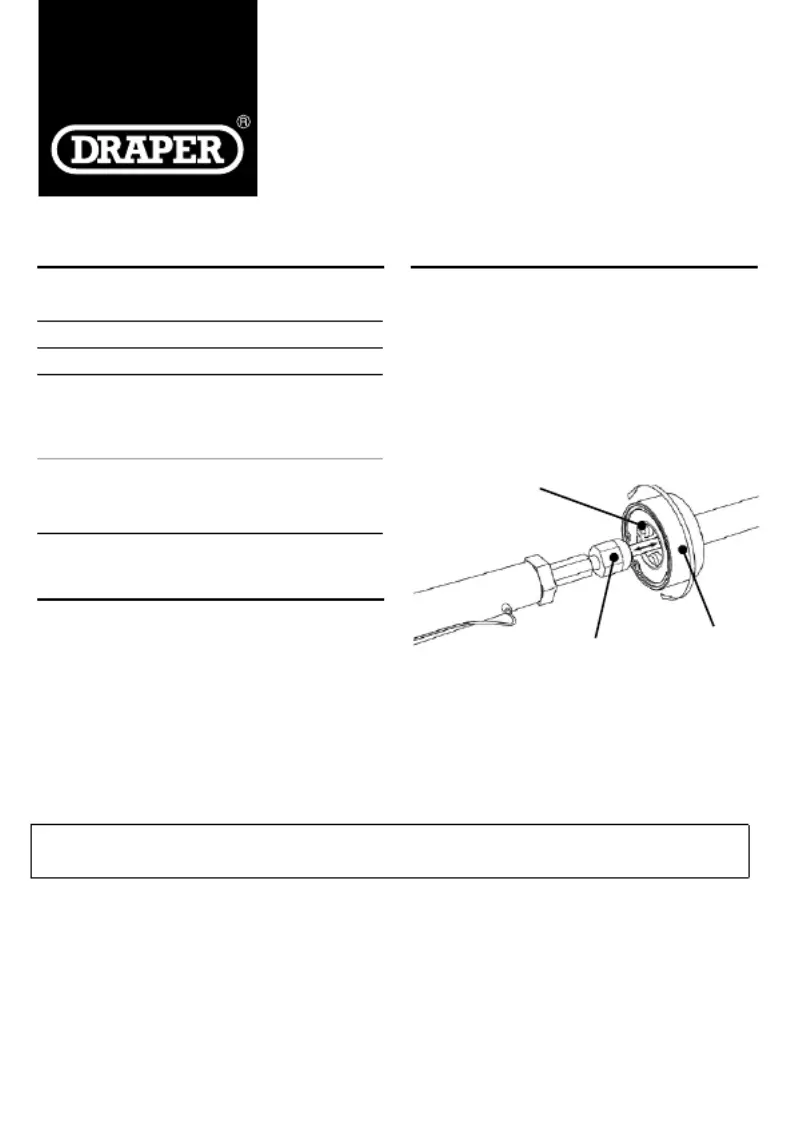

42397 – TRRT-4PC INSTRUCTIONS FOR USE

EN

Original Instructions

Version 2 – May 2024

1. Specication

Stock No. 42397

Part No. TRRT-4PC

Track Rod Arm Length : 350mm

Interchangeable

Head Diameter: 30 – 35mm

35 – 40mm

40 – 45mm

Drive Ends

Hex: 27mm (outer)

Square Drive: ½” (inner)

2. Health and Safety Instructions

• Always refer to the vehicle manufacturer’s handbook

or Haynes manual before dismantling, as some

vehicles must be put into service mode. Failure to

follow the vehicle manufacturer’s service procedure

can result in steering loss.

• Draper tools accepts no responsibility for incorrect

installation of steering components.

3. Instruction for Use

1. Access the track rod and then allow the track rod to

pass through the hollow body (A) until the head of the

tool (B) meets the steering joint (C).

2. Use either a 27mm spanner or ½” square drive to turn

the tool anti-clockwise to loosen the steering joint.

3. Reverse the process with the new joint.

© Published by Draper Tools Limited

Contact Details

Draper Tools, Draper Tools Limited, Hursley Road,

Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF, UK

Website: drapertools.com

Email: [email protected]

Product Helpline: +44 (0) 23 8049 4344

Telephone Sales Desk: +44 (0) 23 8049 4333

General Enquiries: +44 (0) 23 8026 6355

Please contact the Draper Tools Product Helpline for

repair and servicing enquiries.
