EN
Original Instructions
Version 1 – January 2024
AIR CONDITIONER UNIT
24221
WINDOW KIT
Product Reference
User Manual for: Air Conditioner Unit Window Kit
Fits Stock Nos. 23828, 23830 & 23833
Suitable for side, top and bottom hinged windows.
Stock No: 24221
Part No: WK1
Version 1: December 2023
First release
As our manuals are continually updated, always ensure
that the latest version is used.
Please visit for the latest drapertools.com/manuals
version of this manual and the associated parts list, if
applicable.
Copyright © Notice
Copyright © Draper Tools Limited.
Contents
• Self adhesive hook tape.
• 4 metres of window seal.
Instructions for use

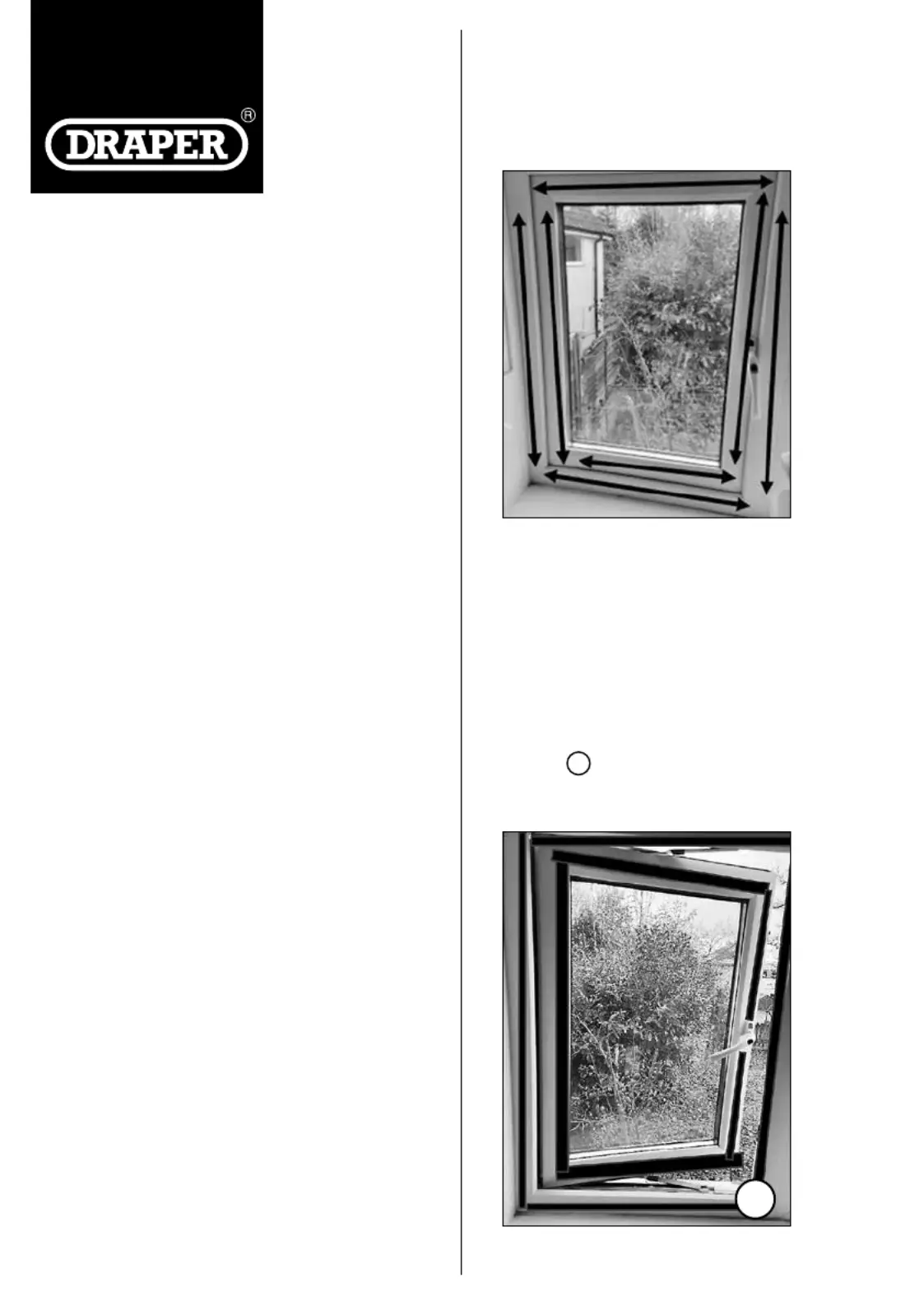

1. Measure the total distance around the window – total
must not exceed 4 metres . (g.1)
2. Clean and dry the frames before trying to apply the
adhesive tape.
FIG.1
3. Apply the tape to the window and frame – see g. 2
for correct position.
4. Fit the fabric to the inner frame with zip closest to the
opening window, then t the fabric to the opening
window. Do not try and cut to size, use the remaining
adhesive tap to secure any overlap.
Note: a complete seal will not be achieved.
5. Open the zip at the bottom corner of the window
opening
A
, far enough to t the exhaust hose and
connector through. Zip up to secure and complete
venting to the outside.
FIG.2
A
