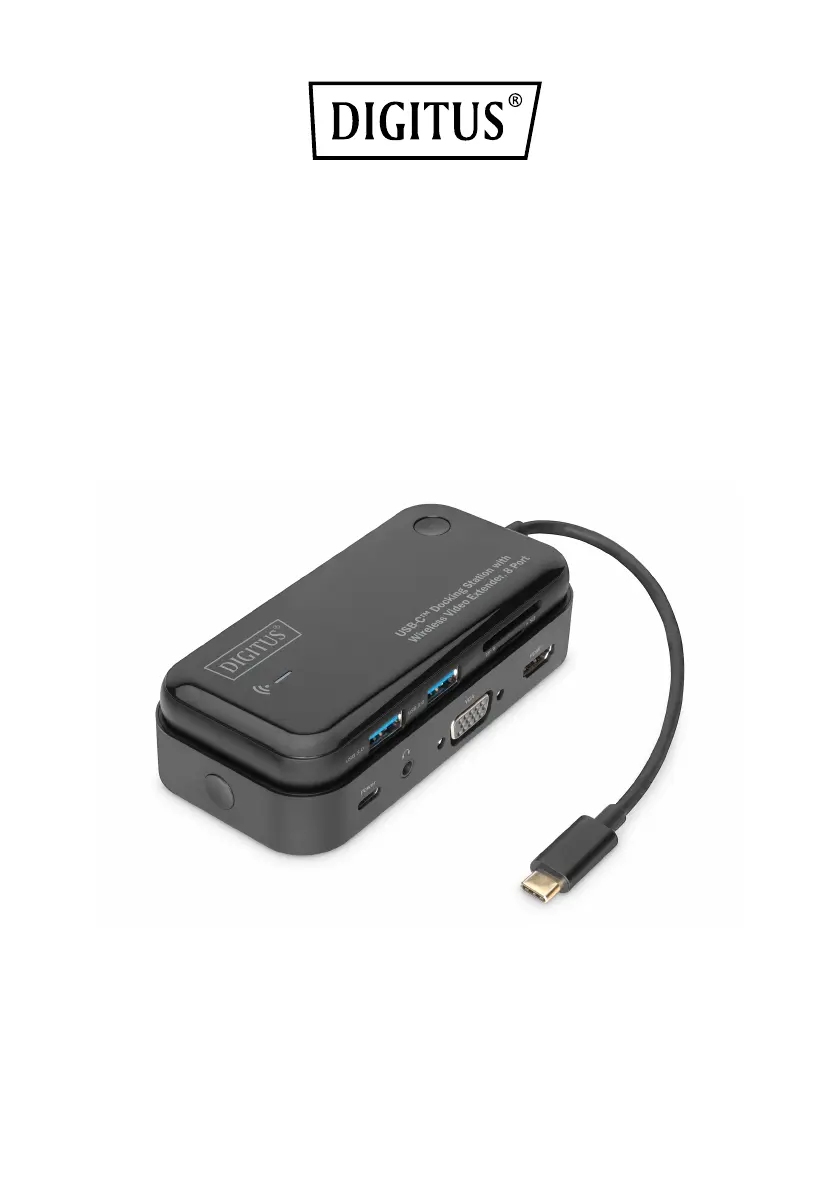

USB-C™ DOCKING STATION WITH

WIRELESS VIDEO EXTENDER, 8 PORT

User Manual

DA-70890

Introduction

The two- part DIGITUS® docking station transmits Full HD video signals to distances of up to

10 m. These video signals can be displayed on the HDMI® and VGA connection in parallel.

Additionally, audio signals can be picked up via the existing 3.5 mm jack socket because a VGA

cable cannot transmit any audio signals.

The transmitter and receiver unit elegantly merge into one unit thanks to the integrated

magnetic mount. When the connection is terminated, the docking station can be used as a

video extender.

The transmitter unit can be used within a 10 m radius of a notebook, tablet or smartphone and -

extends your device by two graphic interfaces, two USB A ports, one SD / MicroSD card reader,

as well as one audio output.

Periphery devices such as a mouse, keyboard, printer or USB sticks can be connected to the

two USB A ports. The two memory card readers can be equipped with up to 2 TB.

The 8 2 DIGITUS® docking station is the perfect solution for bridging small distances in - -in

offices or conference rooms with the most important interfaces for SOHO applications.

Important Safety Notice

Please read below safety instructions carefully before installation and operation:

1. Observe all warnings and notes regarding this device.

2. Do not expose the device to rain, moisture, vapors and liquids.

3. Do not insert any objects into the device.

4. Never attempt to repair the device yourself or open the housing. Danger of an

electric shock!

5. Ensure adequate ventilation to prevent overheating damage.

6. Turn off the power supply and make sure the immediate surroundings are safe before

installation.

7. During a thunderstorm, there is a risk of lightning strike and overvoltage damage to

connected electrical devices.

8. Do not install this device during a thunderstorm.

9. Disconnect the device from the connected electrical devices during a thunderstorm.

10. The device is intended for indoor use only.

11. If the device needs repair, bring it to a specialist dealer.

12. Dust, moisture, vapors, and harsh detergents or solvents can damage the device.

13. Disconnect the device from the power supply and connected devices before cleaning.

14. - Use a lint free cloth to clean the device.

Str ucture Diagram

Transmitter

①. Function Key

 Single click: stop /Restart video

display

 Long press 5s: Enter pairing mode

 Long press 10s: Factory reset

②. LED indicator

③. USB 3.0

④.

SD&TF card readers

Receiver

①. Function Key

 Long press 5s: Enter pairing mode

⑤. USB- C™ (Power supply to receiver)

⑥. 3.5mm Audio

⑦. VGA

⑧. HDMI®

Features

Transmitter

1. USB 3.0

 5Gb/s data transfer,

5V/0.9A@4.5W

2. SD/TF Card Reader

 Read: 50 - 104MB/s;

 Write: 30 - 40MB/s ；

affected by card’s quality

3. WiFi supports wireless

dual frequency

4. Protocol standard

802.11a/b/g/n/ac

Receiver

1. HDMI

 1920x1080P/60Hz

2. - USB C™

 Power supply to the receiver, 5V/2 10W A@

3. VGA: 1920X1080P/60Hz

4. 3.5mm Audio

 Support max transmission distance

10 meters

 No need any settings

 Plug and Play, Mirror directly HDMI and

VGA can work at the same time

 Support stop/restart the video display

by clicking a button
