Pagina 1/4
www.DiamondAudio.com
(a division of CV & DA Holdings, Inc.)
1225 E. 7th Street
Los Angeles, CA. 90021
®
H65A/S Speaker Manual 2013.indd Spread 1 of 4 - Pages(8, 1)
Owners Manual
H65A/S
COMPONENT
H65A/S
COMPONENT
Owners Manual
012512
Downloaded from manuals search enginewww.Manualslib.com
H65 A/S Speaker Manual 2013.indd Spread 2 of 4 - Pages(2, 7)
ABOUT THE DIAMOND AUDIO EXPERIENCE
LIMITED SPEAKER WARRANTY STATEMENT
Warranty is void if serial numbers have been removed, altered or defaced.
HOW TO OBTAIN WARRANTY SERVICE
Diamond Audio Technologies
1225 E.7th ST
LOS ANGELES,CA 90021
Tel: 213-261-4161
Fax: 213-947-4767
Web: diamondaudio.com
Service/Tech Support:
213-261-4161
Tech Support Email
techsupport@diamondaudio.com
FEATURES
MID-BASS DRIVER CONNECTION
Congratulations, you have just purchased the finest mobile audio products on the market to date. At
Diamond Audio, our products represent the latest advances in acoustic technology in sound
reproduction for your vehicle. Diamond Audio products are designed, developed, and engineered
using the latest innovative materials and components to provide the finest sound reproduction
possible. Every Diamond Audio product has been Klippel verified and tested to ensure the best
sounding and most reliable product on the market, if installed properly, Diamond Audio products will
provide many years of the ultimate listening experience.
Please note that prolonged exposure to sound pressure levels in excess of 100dB can cause
permanent hearing loss. Using Diamond Audio products can exceed that level so please exercise
restraint in its operation in order to preserve your ability to enjoy its high fidelity sound for many years
to come.
Diamond Audio recommends our products be professionally installed by an authorized Diamond Audio
dealer to achieve the best possible system recommendation and installation. This will ensure a true
Diamond Audio listening experience and sound you would expect from Diamond Audio products. In
doing this you will extend your warranty from one year to two years.
Go ahead, Hear the Music.
• New 6.5” Die cast aluminum alloy basket
• Hard anodized black aluminum cone
• FEA optimized high power motor with vented pole piece
• Klippel DA optimized motor and suspension symmetry
• Oversized speaker terminals for large gauge speaker wire
• 2 part crossover terminal for easy install and set up
• Neodymium tweeters available in silk or aluminum
• Grill and trim ring included.

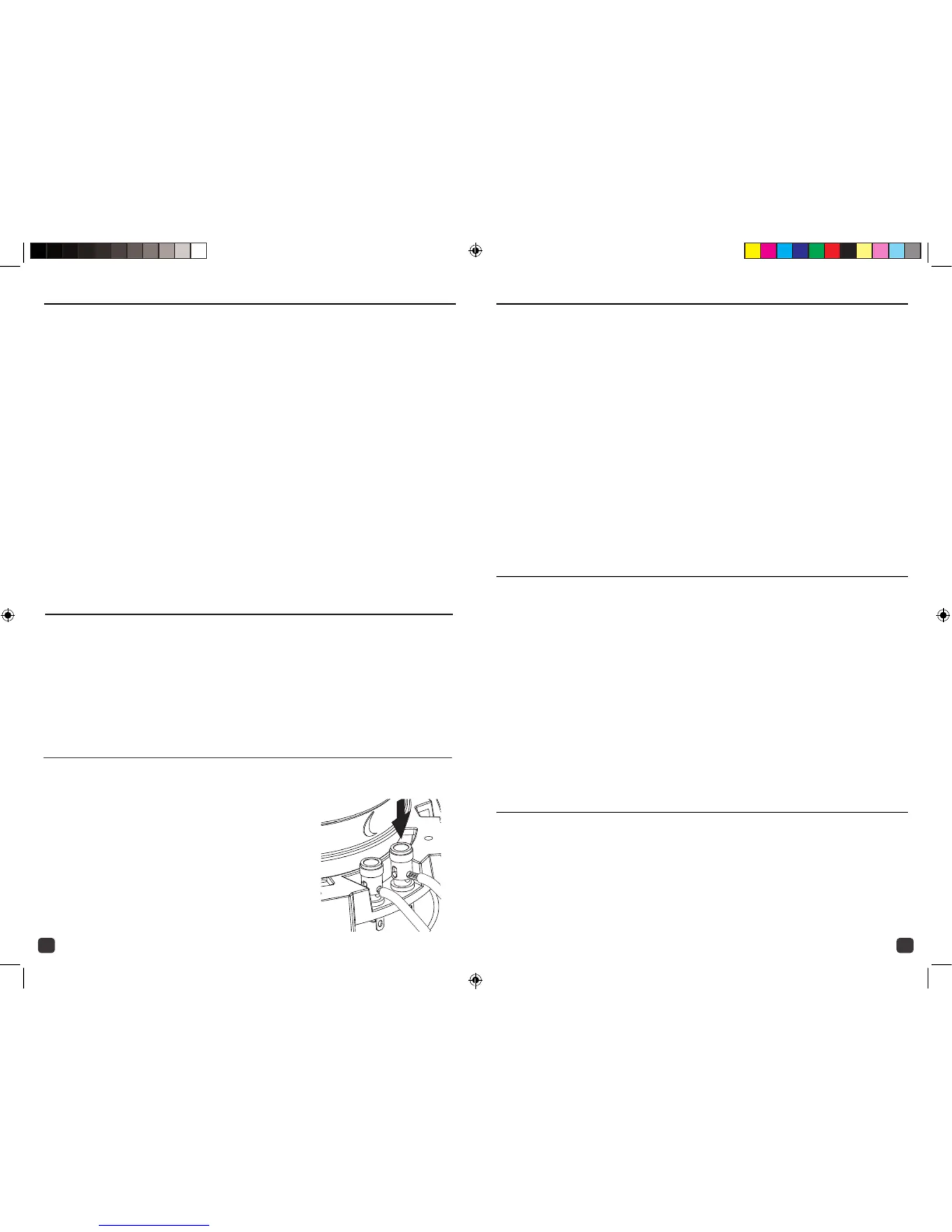

The terminals on the HEX component mid-bass drivers feature
a recessed mechanism to allow direct connection of speaker
wire up to 12 gauge. This allows for a very clean and secure
connection. Strip the end of the wire about 3/8” and insert into
the terminal Press the spring loaded terminal down and push
teh stripped wire in. Then release the spring terminal.
Do not solder or tin the wire before connection, as
it can casue higher resistance and lead to failure
.
In the event a DA pro ct s uld req re service, you s uld v t the t rized DA retailer you purchased the pro ct du ho ui ho isi au ho du
from and they can ex dite your cl m. All cl ms must f l into the guidelines li ed above and be accomp ied by a copy pe ai ai al st an
of the ori l sales and inst lation ceipt from that t rized DA retailer. gina al re au ho
Pro ct returned r warranty service must be f ight- aid, properly pac ged and c arly marked with the Return du fo re prep ka le
Aut rization (RA) mber issued by DA. Any product returned to DAT that is i roperly pac ged, does not have a RA ho nu mp ka
nu number c arly marked on the pac ge, or never c ved a RA le ka re ei mber may be refused upon delivery. DA does not
assume responsibility r lost or misdi cted pro ct. fo re du
R r or replacement un r t s warranty is the exc ve remedy of the consumer. DA l not be liable r any epai de hi lusi shal fo
in duci ntal or conseq ntial ma s r b ach of any ex essed or implied warranty on t s prode ue da ge fo re pr hi ct. S e states do not om
al da allow the exc sion or limitation of ci ntal or conseq ntial lu in de ue ma s, or ge low limitations on how ng an implied lo
warranty lasts, so the above mitations or exc sions may not apply to you. This warranty gives you specific legal rights li lu
and you may so have ot r rights that may vary from state to state. al he
Cust ers outside the U ted States s uld contact t ir local sales office to obt n in rmation on pricing, exchange om ni ho he ai fo
u t ava abi ty, instructio , service and warranty/ n-warranty replacement or r r.ni il li ns no epai
Diamond Audio (a division of CV & DA Holdings, lnc.) warrants this product to be free from defects in material and
workmanship for a period of one (1) year from the original date of purchase provided it was purchased from an authorized
DAT retailer within the United States. However, if this product was installed by an authorized DA retailer, the warranty
period will be extended to two (2) years.
THIS WARRANTY IS NOT TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER OF THIS
PRODUCT IN ITS ORIGINAL INSTALLATION. Original purchaser must reside in the United States and be able to provide
proof of purchase and installation with the sales receipt from the authorized DAT retailer and completion of online
registration that sold and installed the product.
Should a manufacturing defect occur during above said warranty period, DA will replace or repair the defective product with
a product of the same or equivalent value and performance.
Damage or failure caused by any of the following is not covered under this warranty policy: negligence, improper use,
abuse, product modification, unauthorized repair attempts, accident, acts of God, misrepresentations by DA retailers, and
improper/inadequate packaging during return shipping. Warranty is void if serial numbers have been removed, altered or
defaced.
©2014 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, lnc.)
©2014 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, lnc.)
2 7
Downloaded from manuals search enginewww.Manualslib.com
H65A/S Speaker Manual 2013.indd Spread 3 of 4 - Pages(6, 3)

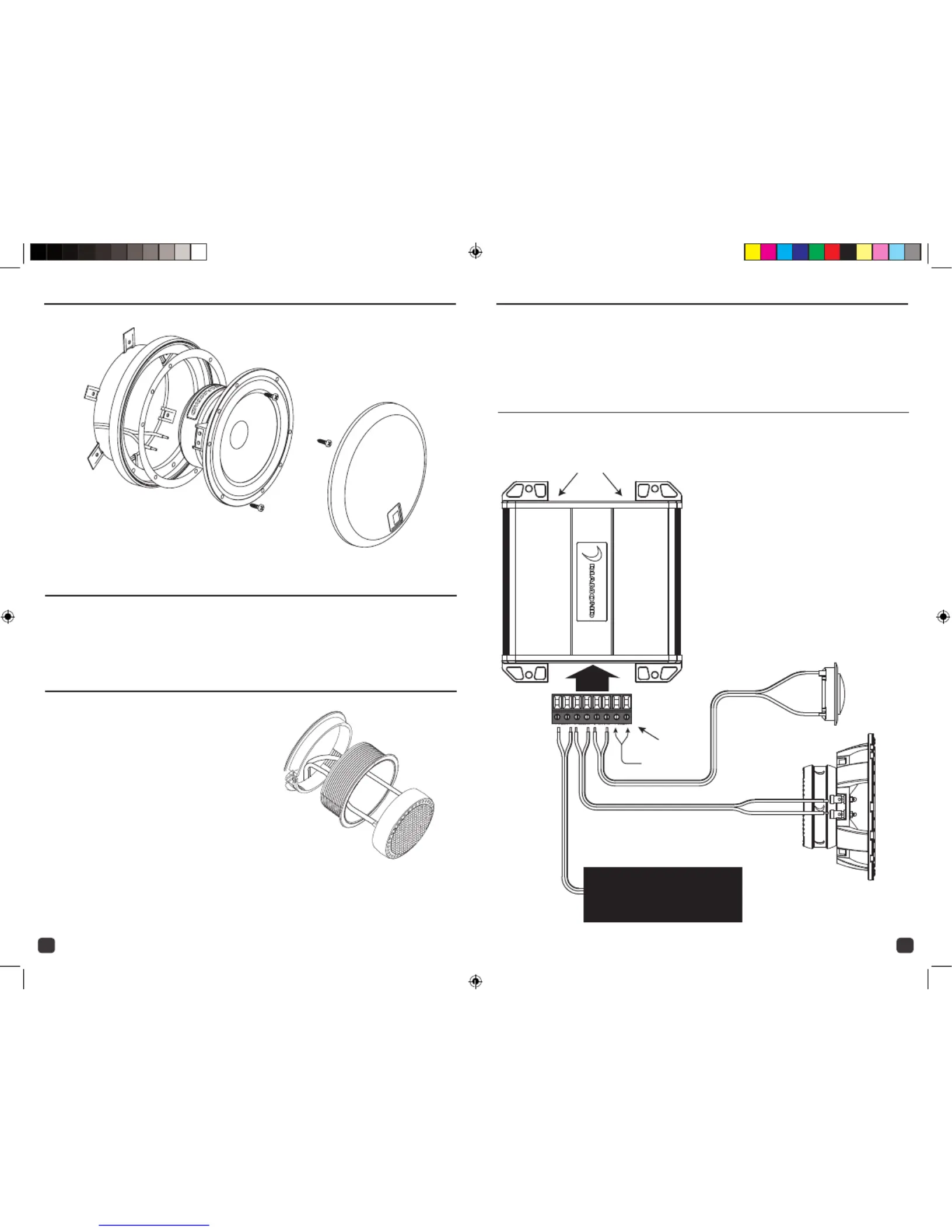

MOUNTING
Screw Clips
Mounting Ring
Gasket
Mounting Screws
Mid-bass Driver
Tweeter
Mounting
Cup
Clamp
Ring
COMPONENT SYSTEM CONNECTION
CROSSOVER
Optional RAF
Am lifiep r
Tweeter
Mid-bass
Driver
The following illustration shows how to connect one channel of the HEX component system. The removeable plug has the
connections silkcreened on it so you do not have to have the crossver present to wire it up.
When flush or surface mounting tweeters, make sure desired
location can accommodate the hole sizes and depth required.
Mount cup using provided hardware flushmount illustration
shown on right. Mount surface cup with provided screws in
tweeter mounting kit. Snake speaker wires through tweeter
cup, connect tweeter to wires and snap tweeter into cup by
pushing down gently. Be careful not push on the center of the
tweeter grill.
Each HEX component system comes with a pair of model specific adjustable crossovers giving you attentuation and phase
adjustments. The tweeter adjustment has settings for -2dB of attenuation, OdB or +2dB of gain. There is also a “Phase
switch” that you may use in different application/locations to correct for acoustical phase issues casued by placement of the
drivers in the vehicles particular enviroment.
Removeable
Plug
Tweeter Attenuation Switch/
Tweeter Phase Switch 0-180 Degrees
MID-BASS MOUNTING
TWEETER MOUNTING
The il stration above shows the parts cluded and cor ct mounting assembly of the HEX lu in re
component mid-bass drivers. Grill is optional. Be sure to check the available mounting depth
before installation begins. Use of the am gasket is commended to ensure a proper seal fo re
between the speaker and mounting surface.
4 5
©2014 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, lnc.)
©2014 Diamond Audio. All rights reserved.
(a division of CV & DA Holdings, lnc.)
Downloaded from manuals search enginewww.Manualslib.com
