Pagina 1/8
I-951 Page 1 of 8
Rev. E-39993 7/30/14
DEMA DILUTION-AT-HAND EXTREME
800 Series Chemical Dispensers
Overview
The DILUTION-AT-HAND EXTREME chemical dispenser series combines the proven technology
of the DEMA DILUTION-AT-HAND with a new look and modular chemical enclosures.
The dispenser series accurately dilutes chemical concentrates with water and dispenses the diluted
mixture at either a high flow rate to fill buckets and scrubbers or a low flow rate to fill bottles and
small containers.
Each dispenser can be set up to meet specific application needs with the ability to offer:
High and low flow dispensing
2 Liter or 1 Gallon (5 Liter) chemical cabinets
Selector valve option to dispense more than
one chemical per dispensing unit
Bottle filling or bucket filling
Option of a remote gun for bucket or scrubber
filling
Dilution ratios up to 3:1 for low flow
dispensing and up to 7:1 for high flow
dispensing
Supplied metering tips allow for leaner ratios
of dilution
Warnings
All installations must conform to local plumbing codes and use approved backflow
prevention devices. A pressure indicating tee is to be installed with existing faucets
according to local plumbing codes in the state of Wisconsin and any other state that
requires the use of a pressure indicting tee.
ALWAYS WEAR PROTECTIVE CLOTHING AND EYEWEAR WHEN
WORKING WITH CHEMICAL PRODUCTS.
I-951 Page 2 of 8
Rev. E-39993 7/30/14
Packing List
Part
Number
Description
801GAP
801GAP-S2L
803GAP
803GAP-Q2L
802GAPRF
804GAPRF
820GAP
830GAP
822GAPRF
830GAPRF
830GAP-Q2L
820GAP-D2L
822GAP-S2L
L1107
CHEMICAL
LABELS
1 1 1 1 1 1 1 1 1 1 1 1 1
100-15K
METERING
TIP KIT
1 1 1 1 1 1 1 1 1 1 1 1 1
61-107-2
SMALL
CERAMIC
WEIGHT
1 1 4 4 1 4 2 5 2 5 5 2 2
98-42-2 TUBE 1 1 1 1 2 1 1 1 1 2 1
100-16E-1
TUBING &
FOOT VALVE
1/4" X 8'
1 4 1 4 2 5 2 5
100-16E-3
TUBING &
FOOT VALVE
1/4" X 32"
1 4 5 2 2
66-21K KEY SET 1 1 1 1 1
89-10-1 DRIP TRAY 1 1 1 2 1
89-30-GAP
89-30-AG
OUTLET
TUBING
HANGER
HOSE ASSY
1 1 1
98-46-3
OUTLET
TUBE 1/2" X
6'
1 1 1
66-53-4
MOUNTING
SCREW
2 2 2 8 2 2 4 4 4 4 8 4 2
66-52
WALL
ANCHOR
2 2 2 8 2 2 4 4 4 4 8 4 2
Operational Requirements
Water Supply Requirements
Minimum Maximum
Water Pressure 20 psi (1.38 bar) 125 psi (8.62 bar)
Water Temperature - 150ºF (65.5ºC)
** Recommended water pressure is between 20 psi (1.38 bar) and 80 psi. (5.52 bar). If pressure
exceeds 80 psi, it is recommended that a 66.43 regulator is used.
I-951 Page 3 of 8
Rev. E-39993 7/30/14

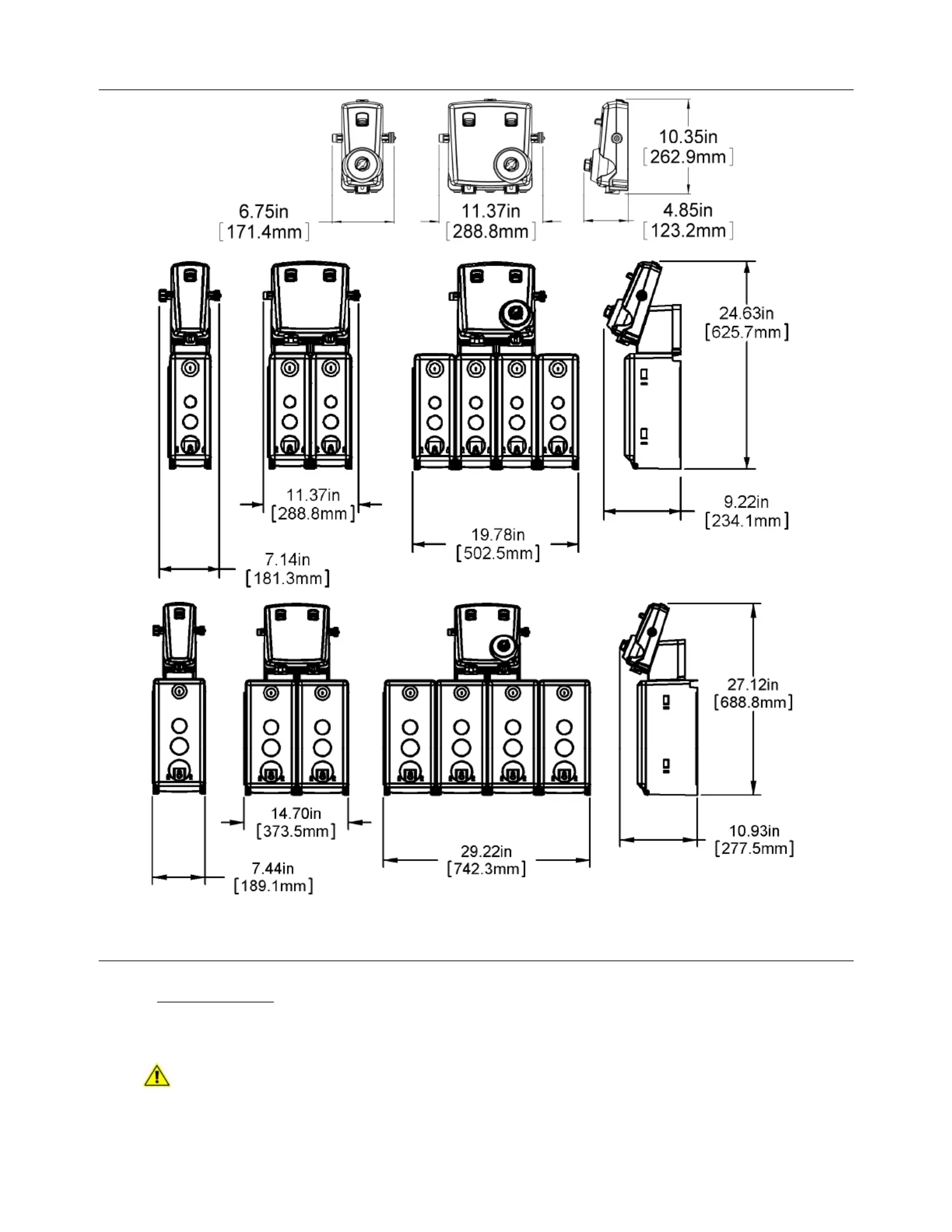

Overall Size
Installation
Mounting
Dispenser Only
1. Remove selector knobs (if installed) by pulling on the knobs.
2. Remove the dispenser cover by depressing the tab on the top of the cover.
3. Position the dispenser on the wall and mark the screw locations.
4. no greater than 6’ (1.83 me Chemical containers can be ters) below the dispenser.
5. Install the supplied anchors in the wall.
6. Mount the dispenser to the wall with the supplied screws.
7. Replace the cover and any selector knob.
