RP20111 & RP54870 CONVERSION BALL

KNOB HANDLE TO LEVER HANDLE CONVERSION INSTRUCTIONS

NOTE: Lever handle is not included in this kit and must be purchased

separately. Order either RP17443 chrome RP17443 PB - Polished Brass or

RP17443 WH - White, to match your specific finish.

The knob-to-lever conversion ball is designed for use in Delta faucets which

originally contained the RP212, or “diamond stem” ball and a knob handle.

This ball kit converts the existing knob handle installation over to accept

the Delta lever handle. It is designed for normal installations where the hot

supply line is on the left and the cold on the right when you are facing the

valve. For shower valves, this allows the lever handle to point to the proper

temperature as indicated on the existing escutcheon. For lavatories, the

converted lever handle will point the same as a factory produced lever

handle model.

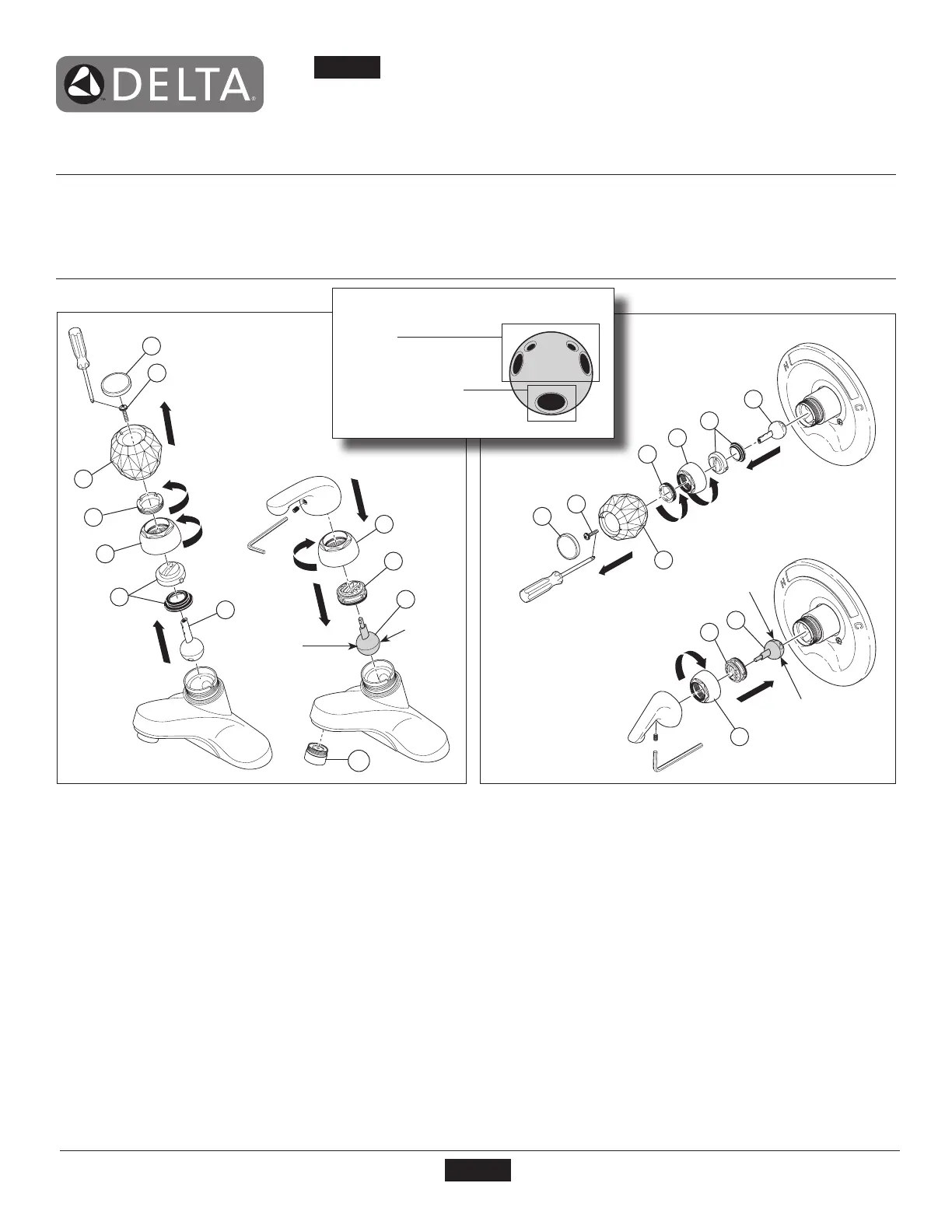

TO REPLACE CONVENTIONAL BALL WITH THE CONVERSION BALL

PROCEED AS FOLLOWS:

1. Turn off water supply to the shower valve or lavatory faucet.

2. Pry off handle button (1), remove screw (2) and pull off knob handle (3).

Discard old knob handle, button and screw.

3. Loosen adjusting ring (4), then unscrew cap assembly (5) and remove.

Discard adjusting ring.

4. Remove cam and packing (6) by pulling on the stem of the ball (7).

Discard cam and packing. Leave the black rubber seats and metal

springs installed in the valve.

5. Place the conversion ball (8) in the valve body with the single large hole

side of the ball down on tub/shower (stem flat facing down) and to the

front on lavatory models (stem fIat facing towards the front).

CAUTION: IF THE BALL IS INSTALLED WITH THE LARGE SINGLE

HOLE SIDE, UP IN TUB/SHOWER MODELS, TO THE BACK IN

LAVATORY MODELS, IT WILL NOT FUNCTION PROPERLY. INSTALLED

IMPROPERLY, THE VALVE CAN SUPPLY HOT WATER WHEN THE USER

EXPECTS COLD WATER, CAUSING A POTENTIALLY DANGEROUS

SITUATION. ALSO, IN THIS SITUATION, THE SET SCREW IN THE

HANDLE WILL NOT PROPERLY BITE INTO THE FLAT ON THE BALL

STEM TO PROPERLY RETAIN THE HANDLE.

6. Install new cam and lip seal (9) and screw the cap assembly (5) onto

the body.

7. Install matching finish, NEW STYLE lever handle (RP17443, RP17443PB

or RP17443WH) [NOTE: Because of the special operation of this

conversion, Delta does NOT recommend using the old style lever handle.)

Make sure set screw in handle bites into flat section of stem to properly

retain handle.

8.IMPORTANT: Flush the system, (remove aerator (10) on lavatory

installations) turn handle to the full on mixed position. Turn on water

supplies, check for leaks and let lines flush for one minute without moving

faucet handle. This will remove debris from lines which can damage

internal parts of faucet and create leaks. After flushing, shut

off faucet and replace aerator on lavatory installations.

9. Verify that hot water comes out of the valve when the lever handle is

turned fully clockwise.

CAUTION: IF FUTURE MAINTENANCE IS NECESSARY AND YOU

MUST REPLACE THE CONVERSION BALL, MAKE SURE YOU

REPLACE IT WITH AN IDENTICAL VERSION RP20111 ONLY! YOU

CANNOT REPLACE IT WITH A STANDARD DELTA RP70 BALL

BECAUSE THE VALVE WILL FUNCTION IMPROPERLY AND MAY

CAUSE A POTENTIALLY DANGEROUS SITUATION.

10

1

2

3

4

5

6

7

8

9

5

1

2

3

4

5

6

7

8

9

5

Conversion Ball

(View From Bottom of Ball)

4 Holes

Back For Lavatory

Up For Tub/Shower

Large Single Hole

Front For Lavatory

Down For Tub/Shower

Large Single

Hole (Down)

Sencillo Grande

Agujero (Abajo)

Gros trou

(en dessous)

4 Holes (Up)

4 agujeros

(Arriba)

4 trous (sur le

dessus)

4 Holes

(Back)

4 agujeros

(Atrás)

4 trous (en

arrière)

Large Single

Hole (Front)

Agujero Sencillo

Grande (fronte)

Gros trou unique

(en avant)

Rev. A 1/14/10

63380

63380
