Form 5S5433

E

N

G

L

I

S

H

E

S

P

A

Ñ

O

L

F

R

A

N

Ç

A

I

S

Printed in U.S.A.

09663

Version 1

06/2013

Unpacking

Remove the heater from box and

inspect for any damage. If it appears

to be damaged, immediately return.

Check the contents of the box to make

sure it contains one heating unit and

one mounting bracket.

General Safety

Information

When using electric

appliances, basic

precautions should always be followed

to reduce the risk of fire, electric shock

and injury to persons, including the

following:

1.Read all instructions before installing

or using this heater.

2.This heater is hot when in use. To

avoid burns, do not let bare skin

touch hot surfaces. Keep combustible

materials, such as furniture, pillows,

bedding, papers, clothes, etc. and

curtains at least 3 feet (0.9 m) from

the front of the heater.

3.Extreme caution is necessary when

any heater is used by or near children

or invalids, and whenever the heater

is left operating and unattended.

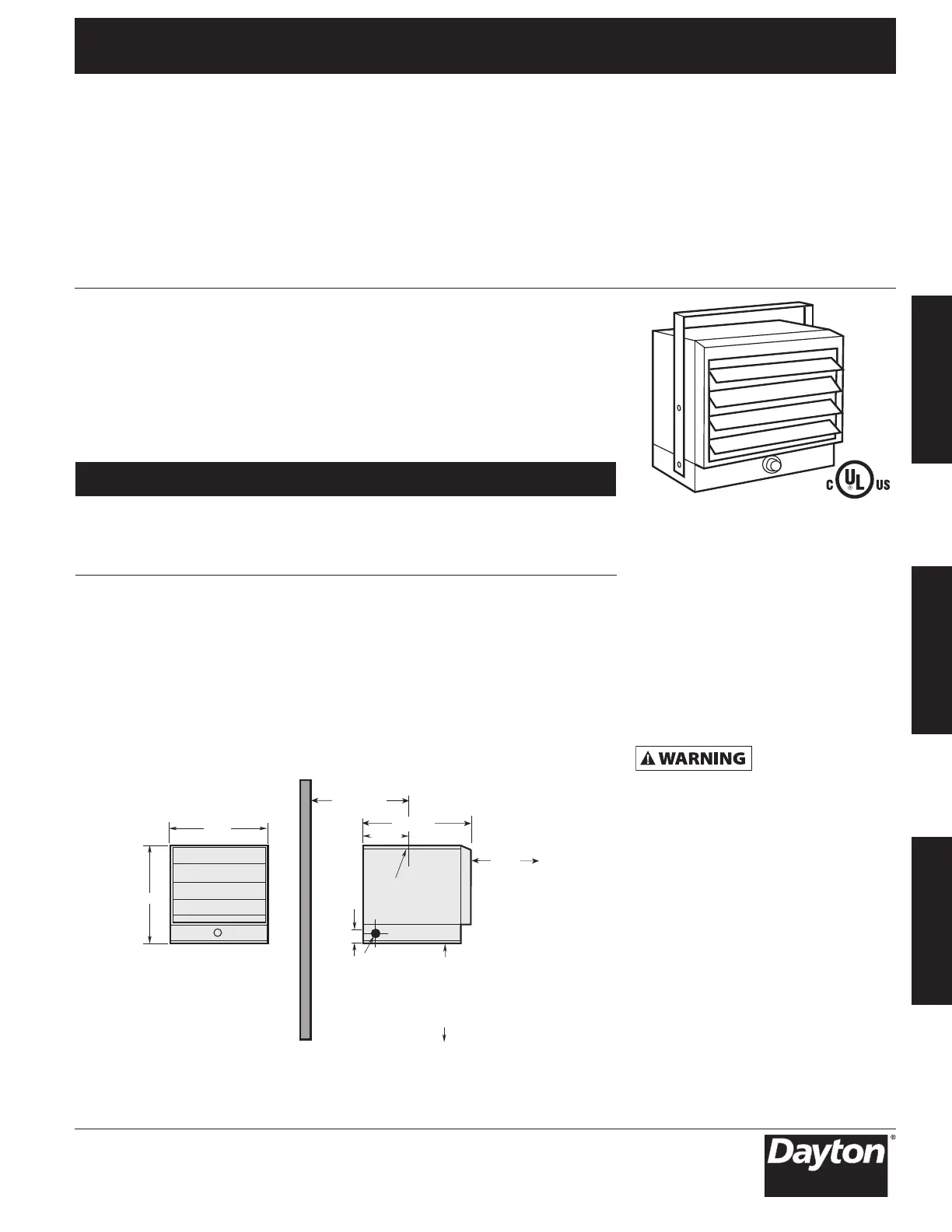

Dayton

®

Electric Utility

Heaters

Operating Instructions & Parts Manual3UG73E and 3UG74E

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.

Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or

property damage! Retain instructions for future reference.

Description

Dayton electric utility heaters are designed to meet a variety of heating

requirements by switching a few wires located in the base of the unit. Heat output

ranges from 6,396 to 17,065 BTU per hour. Features horizontal and vertical flow

(horizontal air throw approximately 18 ft.), built-in thermostat, and high-limit

thermal cutout.

Figure 1

(*) Can be operated at 208V (see Table 1 for ratings).

(**) Heater is shipped from factory wired for these wattages. Heater can be field

adjusted to the other wattages (refer to “Adjusting the Heat Output” on page 4).

Figure 2 –Dimensions

Minimum

Distance to Wall

NOTE:Min. Clearance To Ceiling

When Not Using Mounting

Brackets Is 1

5

/8”

Mounting

Location

6’ Minimum

Distance to Floor

Minimum Distance

from Discharge

to Any Object

Maximum Mounting Height for:

Vertical Air Delivery Unit = 11’

Horizontal Air Delivery Unit = 8’

Front View

Side View

14”

13”

11

1

/4”

5

1

/2”

24”

12

1

/2”

1

3

/4”

1/2”, 3/4”

3UG73E*5000**240/20816020.918.027060˚F17,06512,799

4165240/20816017.415.027060˚F14,21510,659

3332240/20816013.912.027060˚F11,3658,533

2500240/20816010.49.027060˚F8,5336,393

3UG74E5000**208160–24.027060˚F–17,065

4165208160–20.027060˚F–14,215

3332208160–16.027060˚F–11,365

2500208160–12.027060˚F–8,533

Specifications

Amps @Temp.BTU/Hr. @

ModelWattsVoltsPhaseHz240V208VCFMRise240V208V

06/13

5200-11198-000

ISS 1.0

ECR 39427
