compatibility

speciﬁcations

MPU-4000

Mobile Power Unit for E-Class

Mark III

The MPU-4000 is a high performance, rechargeable

battery pack that attaches directly to the bottom

of the E-Class

Mark III

printer and allows the printer

to be used in mobile printing applications. Utilizing

long lasting lithium polymer batteries, the MPU-4000

delivers enough power for the printer to operate for

days without recharging. This powerful combination

is ideal for higher duty applications that require the

endurance and speed of a desktop printer but need

the mobility and long battery life of a portable printer.

The MPU-4000 delivers a mobility

solution whose performance can be

measured in days, not hours. And, using

proven lithium polymer technology

not only guarantees a long lasting

battery but also a high return on your

investment. The MPU-4000 is easy to

install, easy to maintain and when

combined with the E-Class

Mark III’s

wireless connectivity, is the most cost

effective, high performance mobile

printing solution available today.

Mobile (in-vehicle) Printing

•

Agriculture Produce Tracking Labels

•

Auto Service Labels and Tags

•

Utility Identiﬁcation Label and Tags

•

On Site Delivery Invoices

•

High Volume Trafﬁc Citations

Mobile (on-cart) Printing

•

Meeting Registration

•

Retail Shelf/Item Tags and Labels

•

Warehousing Stocking Labels

•

Arts/Entertainment Tickets

•

Airline Contingency Tickets/Bag Tags

•

Healthcare Specimen Identiﬁcation

Contingency (Emergency) Printing

•

Backup Power System

•

Standalone Data Entry

•

Stored Pre-Formatted Labels

•

Data Input from Display and

Navigation Buttons

popular applications

Speciﬁcations subject to change

Datamax-O’Neil (rev. 20120822)

www.datamax-oneil.com

2008

AdvancedBasic

Product

Professional

Professional+

Power

■ ■ ■ ■

Cabinet Dock

■ ■ ■

user interface

• Power:

– Sequential color LED indicator lights

indicate the power level when pushing the

button.

• Charging:

– Blue LED lights while charging and

sequential lights indicate the power level

when pushing the button.

physical characteristic

• Dimensions:

– 7.19” x 10.25” x 2.31”

– 180mm x 257mm x 58mm

• Weight:

– 3 lbs 11 oz.

– 1.67 kg

battery

• Technology:

–LithiumPolymer

• Capacity:

– 3000 Mili-Amp Hours

performance

• NumberofLabels:

– over 4000 4”x6” shipping labels on a single

charge

• NumberofRecharges:

– over 500

• ChargeTime:

– Approximately 3 hrs

performance

• InputPower:

–100-240VAC(RequiresEICC13powercord)(not

included)

• OutputVoltage:

– 24VDC

warranty

• Cabinetandelectronics-1year

• Battery-6months

Requires a power cord extension accessory

MPU-4000

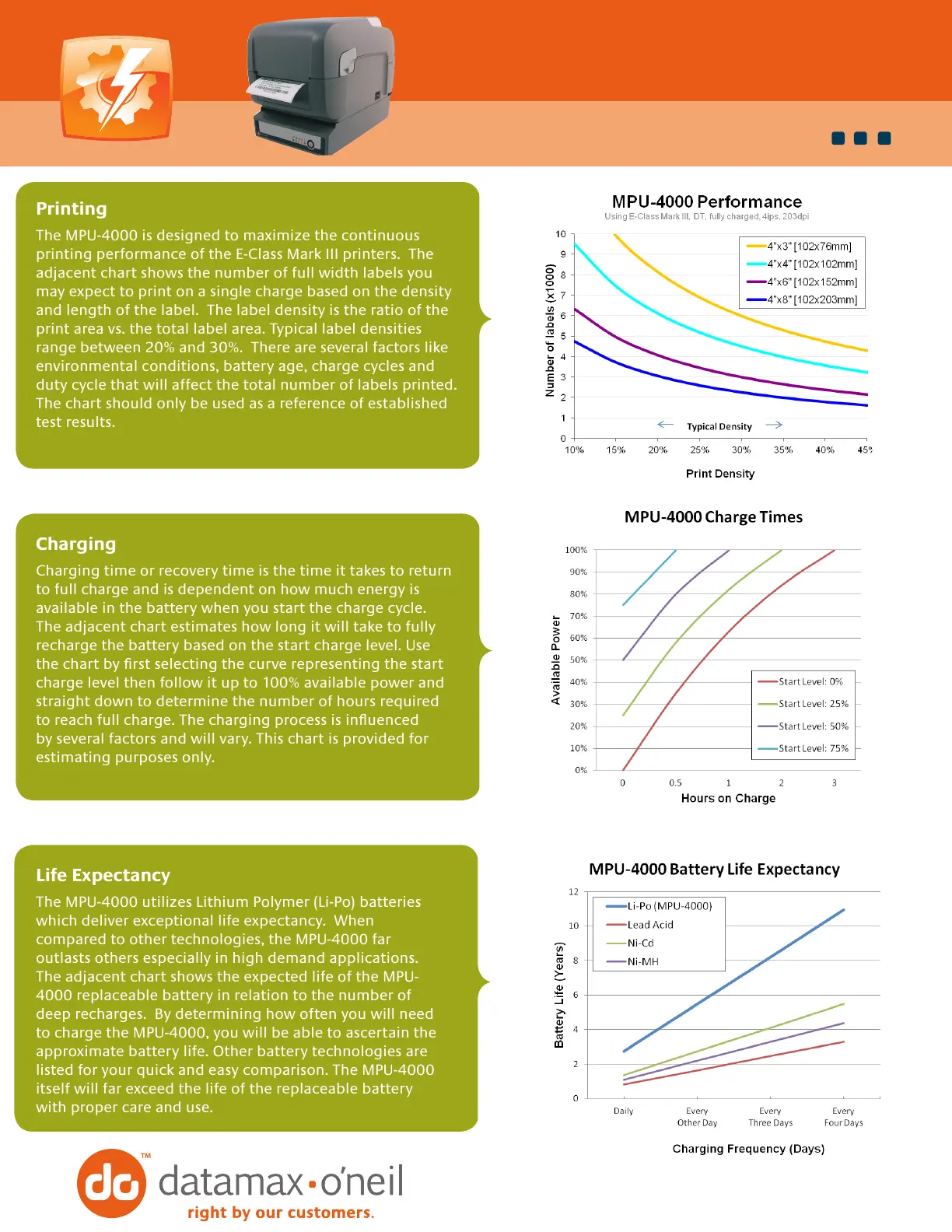

Printing

The MPU-4000 is designed to maximize the continuous

printing performance of the E-Class Mark III printers. The

adjacent chart shows the number of full width labels you

may expect to print on a single charge based on the density

and length of the label. The label density is the ratio of the

print area vs. the total label area. Typical label densities

range between 20% and 30%. There are several factors like

environmental conditions, battery age, charge cycles and

duty cycle that will affect the total number of labels printed.

The chart should only be used as a reference of established

test results.

Charging

Charging time or recovery time is the time it takes to return

to full charge and is dependent on how much energy is

available in the battery when you start the charge cycle.

The adjacent chart estimates how long it will take to fully

recharge the battery based on the start charge level. Use

the chart by ﬁrst selecting the curve representing the start

charge level then follow it up to 100% available power and

straight down to determine the number of hours required

to reach full charge. The charging process is inﬂuenced

by several factors and will vary. This chart is provided for

estimating purposes only.

Life Expectancy

The MPU-4000 utilizes Lithium Polymer (Li-Po) batteries

which deliver exceptional life expectancy. When

compared to other technologies, the MPU-4000 far

outlasts others especially in high demand applications.

The adjacent chart shows the expected life of the MPU-

4000 replaceable battery in relation to the number of

deep recharges. By determining how often you will need

to charge the MPU-4000, you will be able to ascertain the

approximate battery life. Other battery technologies are

listed for your quick and easy comparison. The MPU-4000

itself will far exceed the life of the replaceable battery

with proper care and use.

www.datamax-oneil.com

Perfomance

Product specificaties

Merk:	Datamax O'Neil
Categorie:	Labelprinter
Model:	MPU-4000
Kleur van het product:	Grijs
Gewicht:	1670 g
Breedte:	180 mm
Diepte:	257 mm
Hoogte:	58 mm
Soort:	Batterij/Accu
Capaciteit van de accu/batterij:	3000 mAh
Accu/Batterij voltage:	24 V
Ingangsspanning:	100 - 240 V
Accu/Batterij oplaadtijd:	3 uur
Batterijtechnologie:	Lithium-Polymeer (LiPo)
