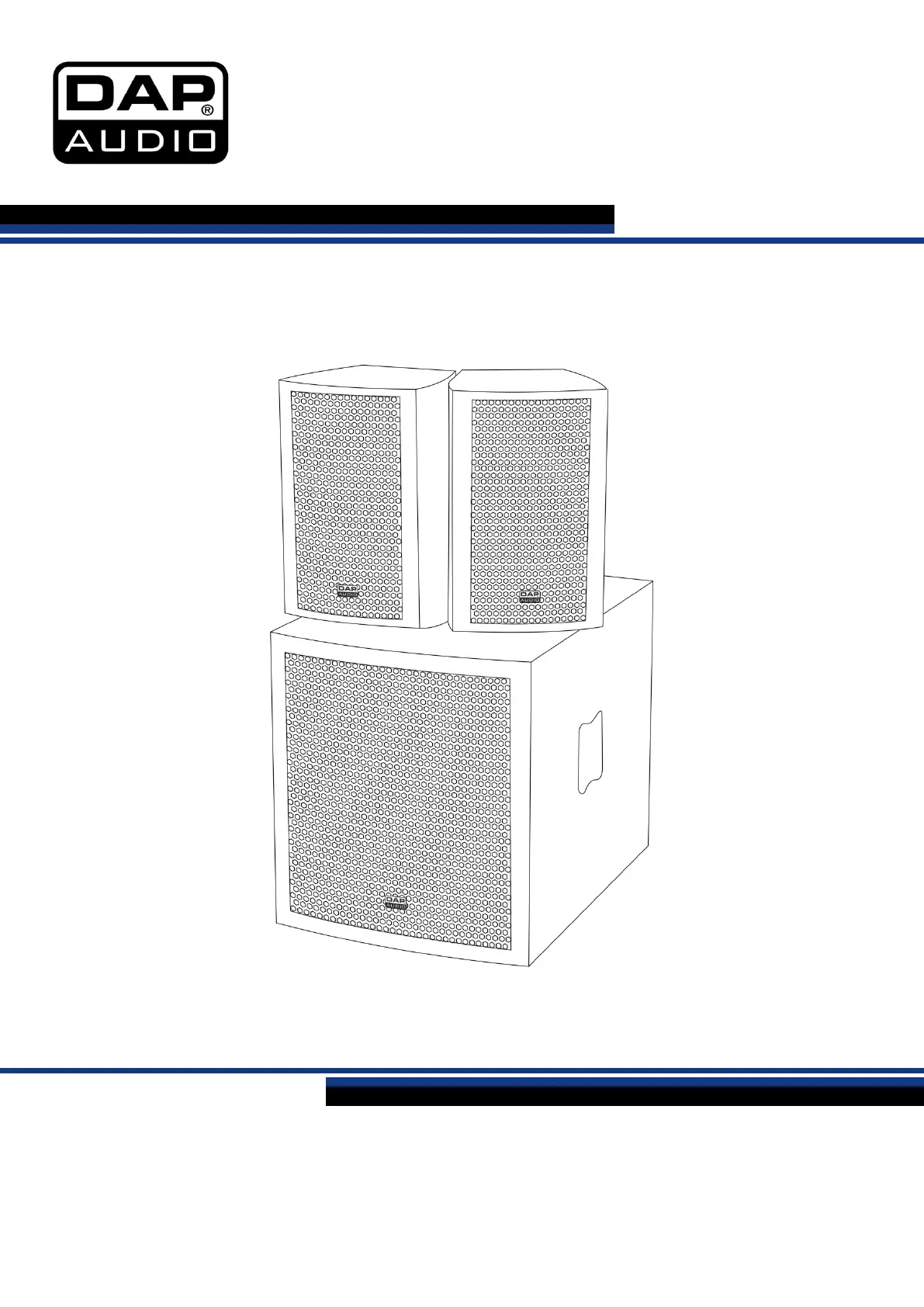

Clubmate I ™

Highlite International B.V. Vestastraat 2 6468 EX Kerkrade the Netherlands – – – –

Ordercode: D3263

MANUAL

ENGLISH

Clubmate I ™

Ordercode: D3263

Table of contents

Warning ............................................................................................................................................................................... 2

Unpacking Instructions ................................................................................................................................................. 2

Safety Instructions ......................................................................................................................................................... 2

Operating Determinations .......................................................................................................................................... 3

Connection with the mains 4 .........................................................................................................................................

Return Procedure .......................................................................................................................................................... 4

Claims .............................................................................................................................................................................. 4

Description of the device ................................................................................................................................................. 5

Features .......................................................................................................................................................................... 5

Overview Subwoofer .................................................................................................................................................... 6

Overview Satellite ......................................................................................................................................................... 7

Set Up and Operation ....................................................................................................................................................... 8

Connection Cables ........................................................................................................................................................... 8

Maintenance ...................................................................................................................................................................... 9

Replacing a fuse ................................................................................................................................................................ 9

Troubleshooting ................................................................................................................................................................. 9

Specifications ...................................................................................................................................................................10

Subwoofer ....................................................................................................................................................................10

Satellites ........................................................................................................................................................................10

Clubmate I ™

Ordercode: D3263

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

 DAP Clubmate 1

 IEC powercord 1,5m

 User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this system has to:

 be qualified

 follow the instructions of this manual

Before you initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the system.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the system are not subject to

warranty.

This system contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the system.

 Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

 Never remove warning or informative labels from the unit.

 Never use anything to cover the ground contact.

 Never leave any cables lying around.

 Do not insert objects into air vents.

 Do not connect this system to a dimmerpack.

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

CAUTION!

Keep this device away from rain and moisture!

Product specificaties

Merk:	DAP Audio
Categorie:	Speaker
Model:	Club Mate I
Kleur van het product:	Zwart
Stroombron:	AC
Aanbevolen gebruik:	Universeel
Gemiddeld vermogen subwoofer:	350 W
Audio-uitgangskanalen:	2.1 kanalen
Op afstand bedienbaar:	Nee
Signaal/ruis-verhouding:	100 dB
Subwoofertype:	Actieve subwoofer
Frequentiebereik subwoofer:	47 - 125 Hz
Impedantie subwoofer:	8 Ohm
Gewicht subwoofer:	26000 g
Subwoofer afmetingen (WxDxH):	450 x 600 x 510 mm
Aantal satellieten:	2
Gemiddeld vermogen satelietluidsprekers:	120 W
Satellite speaker afmetingen (WxDxH):	240 x 245 x 388 mm
Satellite speaker gewicht:	6400 g
Impedantie satellietluidspreker:	8 Ohm
Satellite speaker type:	2-weg
Amplification device meegeleverd:	Ja
Amplification device type:	Versterker
Amplification device form factor:	Ingebouwd
Freqentiebereik satellietluidspreker:	125 - 20000 Hz
Satellietluidspreker crossover-frequentie:	3300 Hz
