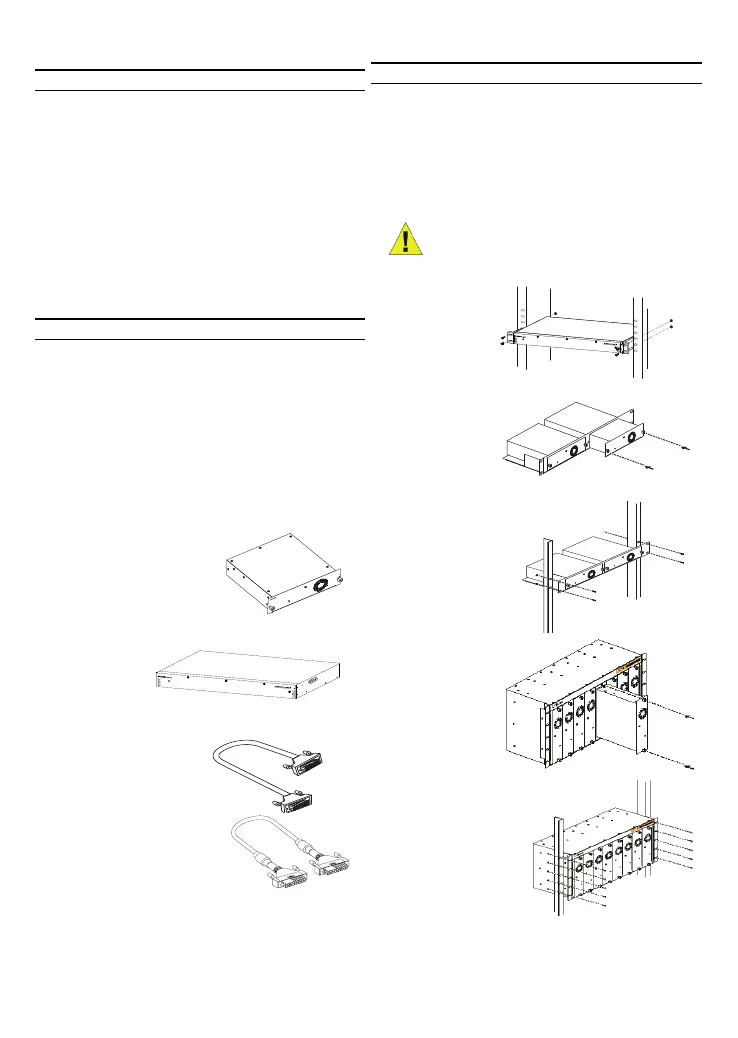

Introduction

A redundant power supply provides a low-cost, simple

solution to the equally simple yet vexing problem of internal

power supply failure, which can result in the shutdown of a

single switching device or an entire network.

With a redundant power supply connected, an integrated

detection circuit continuously monitors the switch’s internal

power supply. In the event of a power interruption, the

redundant power supply is immediately triggered so that the

switch and connected devices can continue providing

service.

This results in a more reliable network infrastructure and

protects the network from a single failure of a network

device power supply.

Description

The DPS-200, DPS-300, DPS-500, DPS-500DC, DPS-600

and DPS-700 are redundant power supply units designed to

conform to the wattage requirements of the switches being

supported. DPS-200 operates at 60 watts; DPS-300

operates at 90 watts, DPS-500/500DC at 140 watts, DPS-

600 at 500watts, and the DPS-700 at 589 watts.

The DPS-200, DPS-300, DPS-500, DPS-500DC, and DPS-

600 can connect to the master switch using a 14-pin DC

power cable. Similarly, the DPS-700 uses a 22-pin DC

power cable. A standard, three-pronged AC power cable

connects the redundant power supply to the main power

source.

Single RPS (DPS-200/DPS-300

/DPS-500/DPS-500DC)

Single RPS (DPS-

600/700)

14-pin DC power cable

22-pin DC power cable

Installation of the RPS

The single RPS DPS-200, 300, 500, and 500DC can be

installed to the standard rack via the RPS rack DPS-800

and DPS-900. DPS-900 is a standard-size rack mount (5U

in height) designed to hold up to 8 redundant power

supplies. The DPS-800 is also a standard-size rack mount

(1.25U in height) designed to hold up to 2 redundant power

supplies. Installed RPS units can be DPS-200s, DPS-300s,

DPS-500s, DPS-500DCs, or a combination of the above.

NOTE: The DPS-500DC can only be

inserted into a DPS-800

Installing a DPS-

600/700 in a standard

electronics rack

Inserting a single

RPS into a DPS-800

RPS rack

Installing a DPS-800 in a

standard electronics rack

Inserting a single

RPS into a DPS-900

RPS rack

Installing a DPS-900 in a

standard electronics

rack

Product specificaties

Merk:	D-Link
Categorie:	Niet gecategoriseerd
Model:	DPS-500A
Kleur van het product:	Zwart
Gewicht:	1510 g
Breedte:	172 mm
Diepte:	257 mm
Hoogte:	43 mm
Gewicht verpakking:	2800 g
Breedte verpakking:	246 mm
Diepte verpakking:	436 mm
Hoogte verpakking:	109 mm
Temperatuur bij opslag:	-45 - 85 °C
Luchtvochtigheid bij opslag:	10 - 95 procent
Mean time between failures (MTBF):	400000 uur
Totaal vermogen:	140 W
Nettogewicht transportverpakking:	11000 g
(Binnenste) verzendverpakking gewicht:	12000 g
AC-ingangsspanning:	90 - 264 V
AC-ingangsfrequentie:	47 - 63 Hz
Bedrijfstemperatuur (T-T):	0 - 50 °C
Relatieve vochtigheid in bedrijf (V-V):	10 - 90 procent
Type product:	Voeding
Code geharmoniseerd systeem (HS):	85177900
Pallet brutobreedte:	1100 mm
Pallet brutolengte:	1200 mm
(Binnenste) verzendverpakking hoogte:	284 mm
(Binnenste) verzendverpakking breedte:	457 mm
(Binnenste) verzendverpakking lengte:	467 mm
Producten per (binnenste) verzendverpakking:	4 stuk(s)
Pallet brutogewicht (lucht):	211000 g
Aantal dozen per pallet (lucht):	16 stuk(s)
Aantal per pallet (lucht):	64 stuk(s)
Pallethoogte (lucht):	1271 mm
Pallet brutogewicht (zee):	306500 g
Aantal dozen per pallet (zee):	24 stuk(s)
Producten per pallet (zee):	96 stuk(s)
Pallethoogte (zee):	1839 mm
