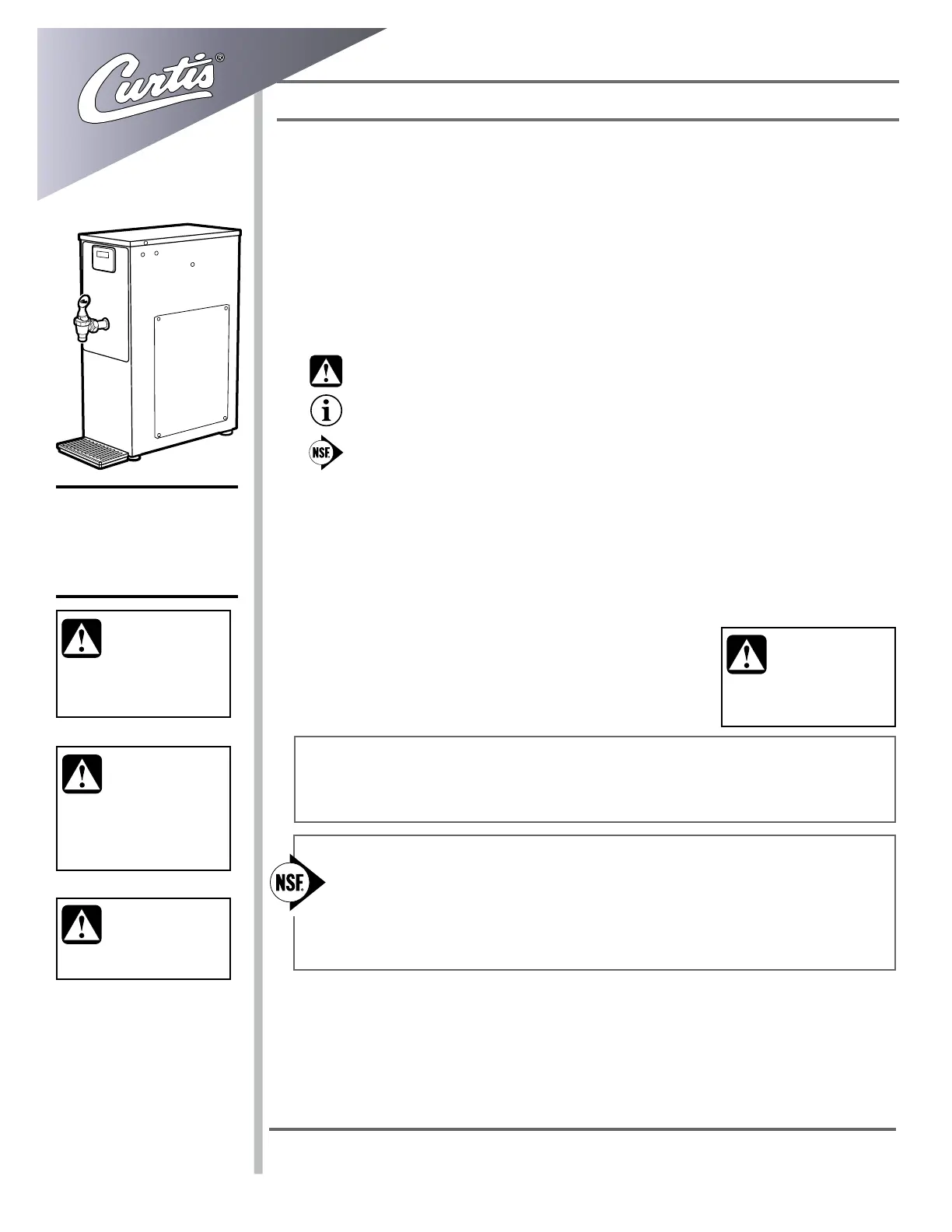

Important Safeguards/Symbols

Models Included:

• WB5GT63000

• WB5GT30000

• WB5GT19000

Service Manual – WB5GT Water Boiler

Wilbur Curtis Co., inC.

This equipment is designed for commercial use. Any servicing other than cleaning and routine maintenance

should be performed by an authorized Wilbur Curtis Company service technician.

• DO NOT immerse the unit in water or any other liquid

• To reduce the risk of re or electric shock, DO NOT opens service panels. There are no user service-

able parts inside.

• Keep hands and other items away from hot areas of the unit during operation.

• Never clean with scouring powders or harsh chemicals.

CAUTION: DO NOT

connect the unit to

hot water supply. The

inlet valve is not rated for hot

water.

CAUTION: Follow

this setup procedure

before attempting

to use this unit. Failure to

follow these instructions can

result in injury and/or void of

warranty.

ISO 9001:2008 REGISTERED

WILBUR CURTIS CO., INC.

6913 Acco Street,

Montebello, CA 90640-5403

For the latest information go to

www.wilburcurtis.com

Tel: 800-421-6150

Fax: 323-837-2410

CAUTION:

Equipment must be

installed to comply

with applicable federal, state,

and local plumbing/electrical

codes.

INSTALLATION

This Curtis unit is pre-set and ready to go from the factory.

System Requirements:

• Water Supply: 20 – 90 psi (minimum ow rate of 2.0 gpm)

• Electrical: See electrical schematic.

3. Connect the unit to electrical outlet with appropriate amperage rating (See serial tag on machine).

4. Once power has been supplied to the unit, ip the toggle switch to the ‘ON’ position (located on the rear of

the unit), the water tank will begin to ll. When the water level in the tank reaches the probe, the heating

element will turn on.

5. Water in the heating tank will require 60 to 70 minutes before reaching operating temperature (factory

setting of 204°F).

NSF requires the following water connection:

1. A quick disconnect or additional coiled tubing (at least 2x the depth of the unit) is required so

that the unit can be moved for cleaning.

2.Thisunitmustbeinstalledwithadequatebackowprotectiontocomplywithapplicablefederal,

state and local codes.

3.Waterpipeconnectionsandxturesdirectlyconnectedtoaportablewatersupplyshallbesized,

installed and maintained in accordance with federal, state, and local codes.

NOTE:Awaterltrationsystemmustbeusedtohelpmaintaintrouble-freeoperation.Air must be

purged from the cartridge prior to connection to equipment. Inareaswithextremelyhardwater,we

highlyrecommendtheuseofaCurtisapprovedwaterlter.Forourfulllineoflters,pleaselogonto

www.wilburcurtis.com.

SETUP STEPS

1. The unit should be level (left to right - front to back), on a secure surface.

2. Connect the water line to the water inlet tting on the rear of the unit. Wa-

ter volume going to the machine should be consistent. Use tubing sized

sufciently to provide a minimum ow rate of two gallons per minute.

1

Forthelatestspecicationsandinformationgotowww.wilburcurtis.com

Technical support: 1-800-995-0417 M-F 5:30 a.m. - 4:00 p.m. PST

Email: [email protected]

Symbols:

WARNING/CAUTION – To advise about conditions that my result in property damage,

personal injury or death

IMPORTANT – Notes about proper operation

Sanitation requirements

WARNING: Use the

leveling legs to level

the brewer only. Do

not use them to adjust brewer

height. Do not extend them

higher than necessary.
