CGC500â„¢
INSTALLATION MANUAL
4CTEK AB
EN
CTEK GRID CENTRAL - CGC500â„¢
The CTEK GRID CENTRAL 500 - CGC500™ is the high capacity version of CTEK’s grid central for
NanoGridâ„¢ load balancing and monitoring of electrical vehicle charging networks. The CGC500â„¢
can monitor and manage up to 500 charging station EV connectors. It can monitor other loads at the
installation site for load balancing of the entire power network. CGC500â„¢ comes in three different
versions depending on the chosen current sensor:
• CGC500™ for 100 A and a maximum conductor diameter of 15.7 mm (Part no. 40-382)
Supplied with split core current transformers with cable length of 1.8 m.
• CGC500™ for 400 A and a maximum conductor diameter of 36 mm (Part no. 40-383)
Supplied with split core current transformers with cable length of 1.5 m.
• CGC500™ for 4000 A and a maximum conductor diameter of 179 mm (Part no. 40-384).
Supplied with Rogowski coils with cable length of 2 m.

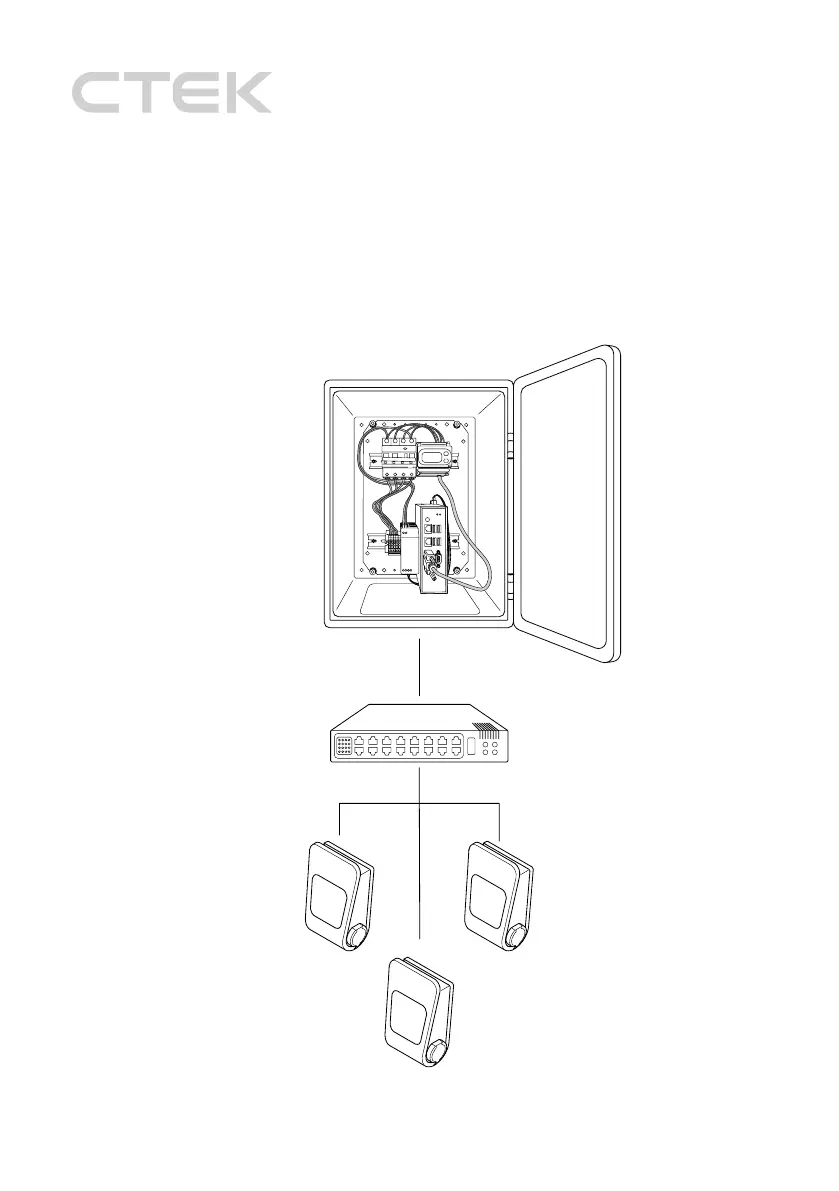

The CGC500â„¢ communicates with the charging stations using a LAN connection.
Overview
CGC500â„¢ consists of the following components:
One enclosure with keys and with the following components mounted inside:
• Energy meter
• Current transformers or Rogowski coils (depending on the current rating)
• Industrial PC
• Power supply 24 V
• Fuse 10A
• Terminal blocks for 230VAC
• Triangular key for door
All the components are mounted on a DIN rail.
Model Height Width Depth
CGC500â„¢ 400 mm 300 mm 210 mm


Product specificaties

Merk: Ctek
Categorie: Niet gecategoriseerd
Model: CGC500 4000A
