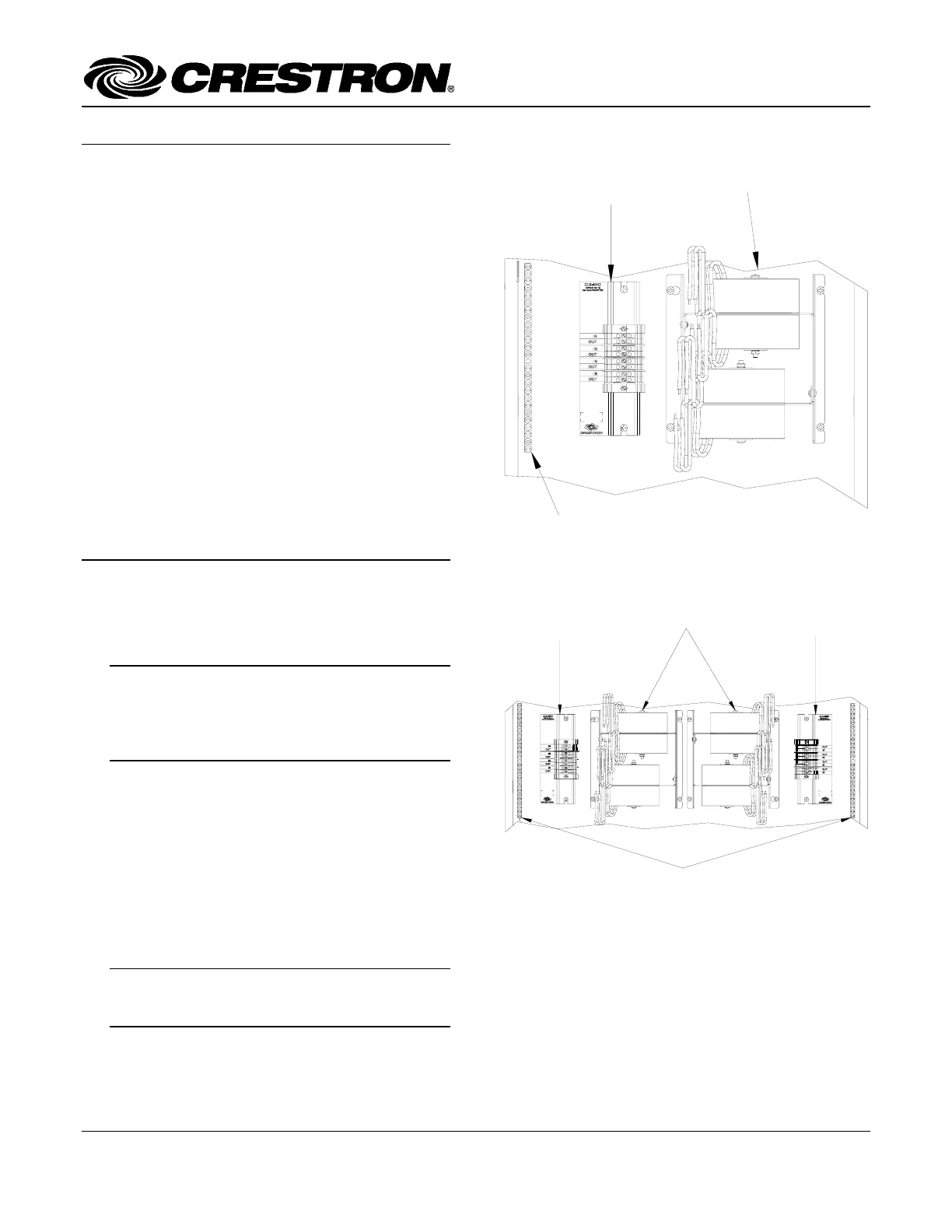

CLT- & CLX-2IND/4IND

Terminal Block & Module Locations in Single-wide Enclosure

(CLT/CLX-4IND shown)

Functional Summary

TERMINAL BLOCK

(LEFT)

MODULE

GROUNDING

TERMINAL BLOCK

The CLT/CLX-2IND is a 2-inductor terminal block and

module kit while the CLT/CLX-4IND is a 4-inductor

terminal block and module kit. Inductor modules are

typically used to reduce hum from incandescent lamps

that are connected to dimmer modules in a Crestron

lighting system. These kits can be mounted in any

Crestron Automation Enclosure (CAEN-Series

Enclosures). The terminal block is for connecting wires

into and out of the inductor module. The inductor is wired

in series between the output of the dimmer module and

the load. The maximum load for any inductor in the

module is 16 amps.

Each of these Terminal Block and Module kits is

considered single entities and must be used together. The

terminal blocks (CLT-2IND and/or CLT-4IND) are

shipped separately from their respective modules

(CLX-2IND and CLX-4IND) to permit termination of the

field wiring to the terminal block prior to installation of

the module, as described in this guide.

Installation

Terminal Block & Module Locations in Double-wide

Enclosure (CLT/CLX-4IND shown)

The terminal block and module must be mounted into a

Crestron Automation Enclosure by a licensed electrician,

in accordance with all national and local codes.

TERMINAL BLOCK

(LEFT)

MODULES

TERMINAL BLOCK

(RIGHT)

GROUNDING

TERMINAL

BLOCKS

CAUTION: This equipment is for indoor use only.

Mount in a well-ventilated area. The ambient

temperature must be 32°F to 104°F (0°C to 40°C).

The relative humidity must be 10% to 90% (non-

condensing).

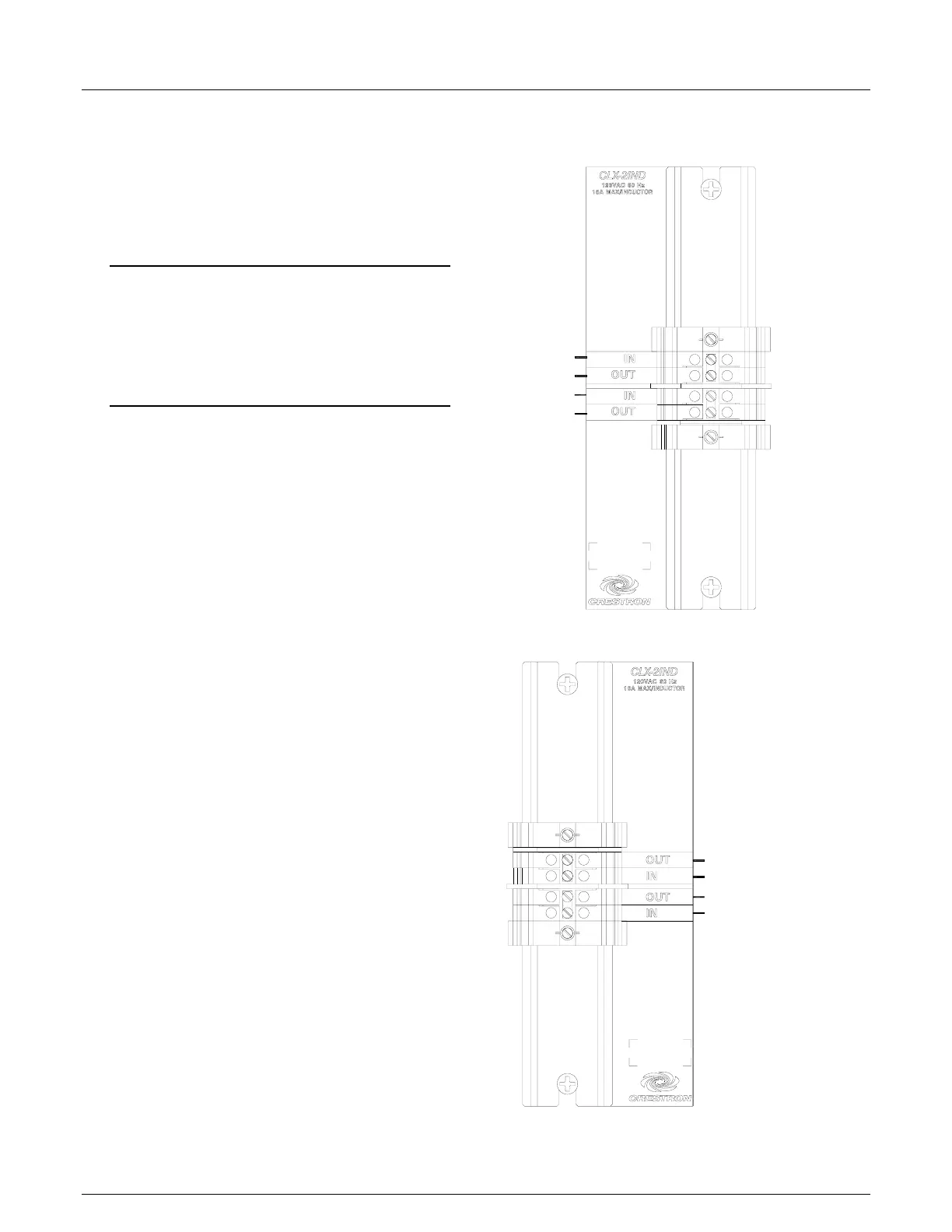

Terminal blocks are installed along the left side of single-

wide enclosures and along the outside edges (left and

right sides) of double-wide enclosures. Modules are

installed along the right side of single-wide enclosures

and side-by-side in the center of double-wide enclosures.

When installing modules and terminal blocks in a double-

wide enclosure, be sure to invert units on the right side so

that they can be properly wired. Refer to the illustrations

shown in the next column when considering the location

of terminal blocks and modules within an enclosure.

NOTE: Inductor modules and terminal blocks

should be installed above the dimmer modules,

towards the top of the CAEN enclosure.

Crestron Electronics, Inc.

Installation Guide – DOC. 6315

15 Volvo Drive Rockleigh, NJ 0764711.04

Tel: 888.CRESTRON

Fax: 201.767.7576Specifications subject to

www.crestron.comchange without notice.
