FEATURES
USER MANUAL
REAL GEAR FOR REAL GAMERSREAL GEAR FOR REAL GAMERS
www.cougargaming.com
●
18 RGB-LEDS PRO LÜFTER +
TRIDIREKTIONALES BELEUCHTUNGSDESIGN
●
CORE BOX C UNTERSTÜTZEN
5-V-RGB-VERBINDUNG MIT
KOMPATIBLEN MOTHERBOARDS
●
PATENTIERTES COUGAR-LÜFTERDESIGN,
DAS DEN LUFTSTROM OPTIMIERT
DEUTSCH FRANÇAIS
●
18 LED RVB PAR VENTILATEUR + ÉCLAIRAGE
À CONCEPTION TRIDIRECTIONNELLE
●
CORE BOX C RACCORDEMENT RVB 5V SUR
LES CARTES MÈRES COMPATIBLES
●
VENTILATEUR À CONCEPTION COUGAR
BREVETÉE QUI OPTIMISE LE FLUX D'AIR
●
18 RGB-ÑÂÅÒÎÄÈÎÄÎÂ Â ÊÀÆÄÎÌ
ÂÅÍÒÈËßÒÎÐÅ + ÒÐÅÕÑÒÎÐÎÍÍÈÉ
ÄÈÇÀÉÍ ÏÎÄÑÂÅÒÊÈ
●
CORE BOX C ÏÎÄÄÅÐÆÈÂÀÅÒ 5V
ÏÎÄÊËÞ×ÅÍÈÅ RGB Ê ÑÎÂÌÅÑÒÈÌÛÌ
ÌÀÒÅÐÈÍÑÊÈÌ ÏËÀÒÀÌ
●
ÇÀÏÀÒÅÍÒÎÂÀÍÍÛÉ ÄÈÇÀÉÍ
ÂÅÍÒÈËßÒÎÐÎÂ COUGAR Ñ ÎÏÒÈÌÈÇÀÖÈÅÉ
ÂÎÇÄÓØÍÛÕ ÏÎÒÎÊÎÂ
РУССКИЙ
POLISH
●
18 DIOD RGB NA WENTYLATOR +
OŚWIETLENIE TRÓJKIERUNKOWE
●
CORE BOX C OBSŁUGUJĄ POŁĄCZENIE 5V
RGB W KOMPATYBILNYCH PŁYTACH
GŁÓWNYCH
●
OPATENTOWANA KONSTRUKCJA
WENTYLATORA COUGAR ZAPEWNIAJĄCA
OPTYMALIZACJĘ PRZEPŁYWU POWIETRZA
HUNGARIAN
●
18 RGB LED-LÁMPA MINDEN
VENTILÁTORHOZ + HÁROMIRÁNYÚ
VILÁGÍTÁS
●
CORE BOX C TÁMOGATJÁK AZ 5 V-OS
RGB-CSATLAKOZÁST A
KOMPATIBILIS ALAPLAPOKKAL
●
SZABADALMAZTATOTT COUGAR
VENTILÁTORRAL TÖRTÉNŐ KIALAKÍTÁS,
AMELY OPTIMALIZÁLJA A LÉGÁRAMLATOT
●
18 LED RGB PER OGNI VENTOLA
+ DESIGN LUMINOSO
TRIDIREZIONALE
●
CORE BOX C SUPPORTANO LA
CONNESSIONE RGB 5V SULLE SCHEDE
MADRI COMPATIBILI
●
SISTEMA BREVETTATO COUGAR PER
UN
FLUSSO D'ARIA OTTIMIZZATO
ITALIANO
한국어
●
팬당 18 개의 RGB LED + 3 방향
조명
디자인
●
호환 마더 보드에 5V RGB 연결을
지원하는
CORE BOX C
●
공기 흐름을 최적화하는
특허받은 COUGAR 팬 디자인
中 文
●
每个风扇有18颗RGB LED灯+ 3向
背光设计
●
CORE BOX C 支援5V RGB 连接
相容主机板
●
COUGAR风扇专利设计有效优化
气流运行效果
●
18 LEDS RGB POR VENTILADOR + DESIGN
DE ILUMINAÇÃO TRI-DIRECIONAL
●
SUPORTE CORE BOX C
5V RGB CONEXÃO A PLACAS MÃE
COMPATÍVEIS
●
DESIGN DE VENTILADOR COUGAR
PATENTEADO QUE OTIMIZA O FLUXO DE AR
PORTUGUÊS
日本語
●
ファンは18 個のRGB LED搭載＋
3パターンのライティング効果
●
CORE BOX C 互換性の
あるマザーボードの5V RGBコネクタとの接続
により、連動してのライティングが可能
●
エアーフローを最適化する特許取得済みの
COUGARファン設計
ENGLISH
●
18 RGB LEDS PER FAN + TRI-DIRECTIONAL
LIGHTING DESIGN
●
CORE BOX C SUPPORT 5V
ADDRESSABLE HEADER TO COMPATIBLE
MOTHERBOARDS
●
PATENTED COUGAR FAN DESIGN THAT
OPTIMIZES AIRFLOW
●
18 LEDS RGB EN CADA VENTILADOR +
DISEÑO DE ILUMINACIÓN TRIDIRECCIONAL
●
CORE BOX C SOPORTA CONEXIÓN A PUERTOS
RGB DE 5V EN PLACAS MADRE COMPATIBLES
●
VENTILADORES CON DISEÑO PATENTADO
QUE OPTIMIZA EL FLUJO DE AIRE
ESPAÑOL

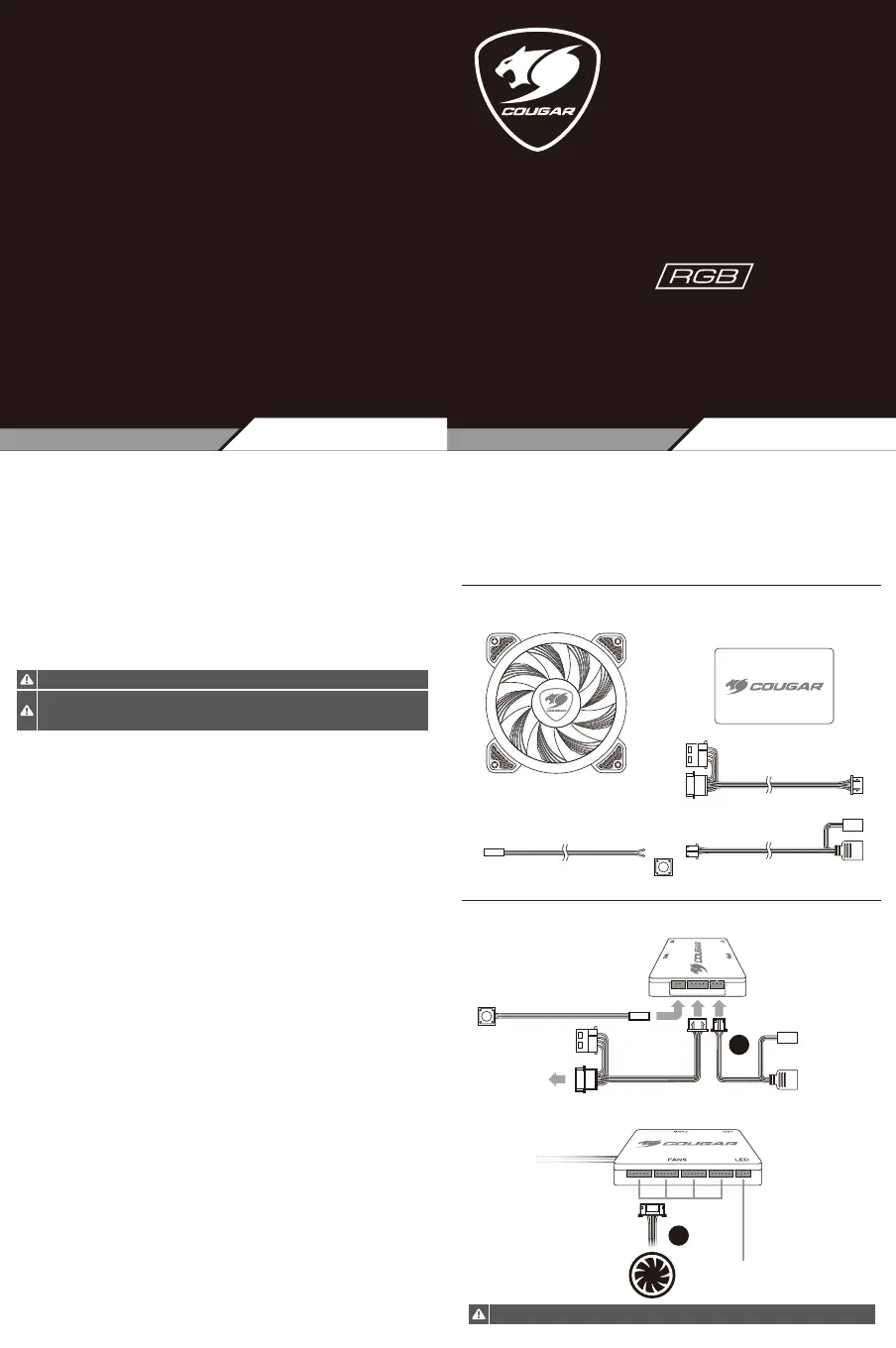

CONTENTS
INSTALLATION
The included COUGAR Core Box C, which supports up to 8 fans and 4 RGB LED strips,
allows you directly control its 14 preset lighting effects with an included switch or with
your case's reset button. You can also connect it to compatible motherboards' 5V RGB
header for system-wide synchronization!
PRESET LIGHTING EFFECTS + MOTHERBOARD SYNCHRONIZATION
VORTEX RGB FCB120 x 3
FANS LED
FANSLED
Core Box C
Power Connector
VORTEX RGB
FCB120
RGB LED Strip
(Optional)
2
TRI-DIRECTIONAL LIGHTING
In, Front, Out. The VORTEX RGB FCB 120 fans’18 LEDs produce a visual spectacle in
three directions. While most other backlit fans project their light only inward and
forward, VORTEX RGB FCB 120 gives you a 180º viewing angle, covering all the area
visible from outside your PC case.
5V Addressable Header Adapter
VDG
5V Addressable
Header Adapter
Core Box C
Power Connector
Power Supply
1
POWER M-INC-SW
VDG
for Compatible
Gigabyte
Motherboards
for Compatible
Asus or MSI
Motherboards
Core Box C for up to 8 fans and 4 LED strips, with 3 VORTEX RGB FCB 120 Fans included.
Connect the COUGAR Core Box C directly to the 5V RGB connectors of compatible
ASUS, MSI or GIGABYTE motherboards for system-wide synchronization and full
customization.
* Please note : Only 5V addressable header from compatible motherboards are supported;
please do not connect the COUGAR Core Box C to a 12V Non-addressable header.
SUPPORT FOR DIRECT MOTHERBOARD CONNECTION
Core Box C for up to 8 fans and 4 LED strips, with 3 VORTEX RGB FCB 120 Fans included.
The electrical consumption of a fully installed COUGAR Core Box C with 8 COUGAR
VORTEX RGB fans and 4 COUGAR RGB LED strips is 40W (5V); please take this into
account when choosing your power supply and designing your build.
Lighting Switch Cable
Core Box C Lighting Switch (Included)
OR Your Case's Reset Button Cable
(if Available)
LET IT SHINE!
FCB 12 0
COOLING KIT
VORTEX
MANUFACTURER CONTACT
Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, An Ho Road Sec. 2 Tainan,
Taiwan, R.O.C
Tel:+886-6-356-0606
More information you will find at cougargaming.com
Compucase Enterprise Co.,Ltd.
All rights reserved.
Made in China
LEGAL NOTICES
This manual was created by Compucase Enterprise and may not be completely
or partially copied, passed on, distributed or stored without written consent by
Compucase Enterprise.
COUGAR® is a registered brand of Compucase Enterprise Other product and
company names mentioned in this documentation may be brands or trademarks
of their respective owners.
Compucase Enterprise reserves the right to make changes concerning the
contents of the manual and the technical data of the product without previous
announcement.
All other registered trademarks belong to their respective companies.
DISCLAIMERS
●
COUGAR product is not authorized for use as critical components in life support
device or for incorrect application software or malfunction of the product.
●
COUGAR is not liable for the death or damage of person or loss of property when
product is using as, including but not limited to, medical equipment, military
equipment, traffic equipment and disaster prevention system.
●
COUGAR is not liable for any damages, expenses, lost data, lost revenues, lost
savings, lost profits, or any incidental or consequential damages due to using
defect product of COUGAR.
If you have any question about the warranty, please feel free to contact us.
Customer support: https://cougargaming.com/support/contact/upload/
CONDITIONS WHERE FREE MAINTENANCE IS NOT PROVIDED
●
Any fault or damage caused by natural disasters (including storm, fire, flood,
thunder, earthquake, etc).
●
Any fault or damage caused by accidental factors and man-made reasons
(including hit, scrape, crash, moving, compression, stain, corrosion, use of
incurred on unsuitable voltage, computer virus, riot, misuse, malicious damage, etc).
●
Use in an improper operating environment (including high temperature, high
humidity, water inflow, etc).
●
Inability to provide the product warranty card, purchase receipt or invoice to
prove the product is still within the warranty period and the shipping date of the
product is out of warranty.
●
The warranty card or product serial number has been altered or its number is
hard to identify.
●
The warranty period has expired.
●
Any fault or damage caused by non-compliance with regulations stated on the
user manual or improper, rough and careless treatment.
●
Any fault or damage caused by use of parts not certified by COUGAR original
manufacturer.
●
The problem is caused by improper repair or adjustment by the buyer or any
manufacturer without authorization from COUGAR.
●
The product is not acquired from an authorized distributor of the company or is
acquired from illicit sources.
●
Paper carton, instruction and other accessories are not warranted.
WARRANTY AGREEMENT
●
If the product has defects in material or manufacture, COUGAR will provide
product repair and replacement service within the warranty period.
●
Our warranty service is based on the date of the invoice or warranty card
(must be affixed with the store stamp).
If you lose the aforementioned evidence, we will apply the original shipping date
of the product as the beginning date of warranty period. The shipping date will
be identified by the product serial number(S/N).
GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR VORTEX RGB FCB120 COOLING KIT
Warranty : 1 Year
This warranty gives you specific legal rights. You may also have other rights
granted under local law. These rights may vary.
The above specifications may vary by country or region
FAN SPECIFICATIONS PACKAGE CONTAINS
COUGAR USA Technical Service
Tel: (833) 256-3778
Mail: rma@compucaseusa.com
Service email : https://cougargaming.com/support/contact/upload/
Dimension
Bearing
Speed
Air Flow
Air Pressure
Fan Voltage
LED Voltage
Cable Length
LED Lights
Acoustical
Noise
LED Power
consumption
120 x 120 x 25mm
Hydraulic-Bearing
1200 R.P.M
36.72 CFM 62.36 m3/h
0.78mm H2O
12 VDC
5 VDC
24.3 dBA
600mm
18
1.8W
VORTEX RGB FCB120 x 3
Core Box C & Power Connector
5V Addressable Header Adapter
Lighting Switch Cable
Fan Screws
User Manual

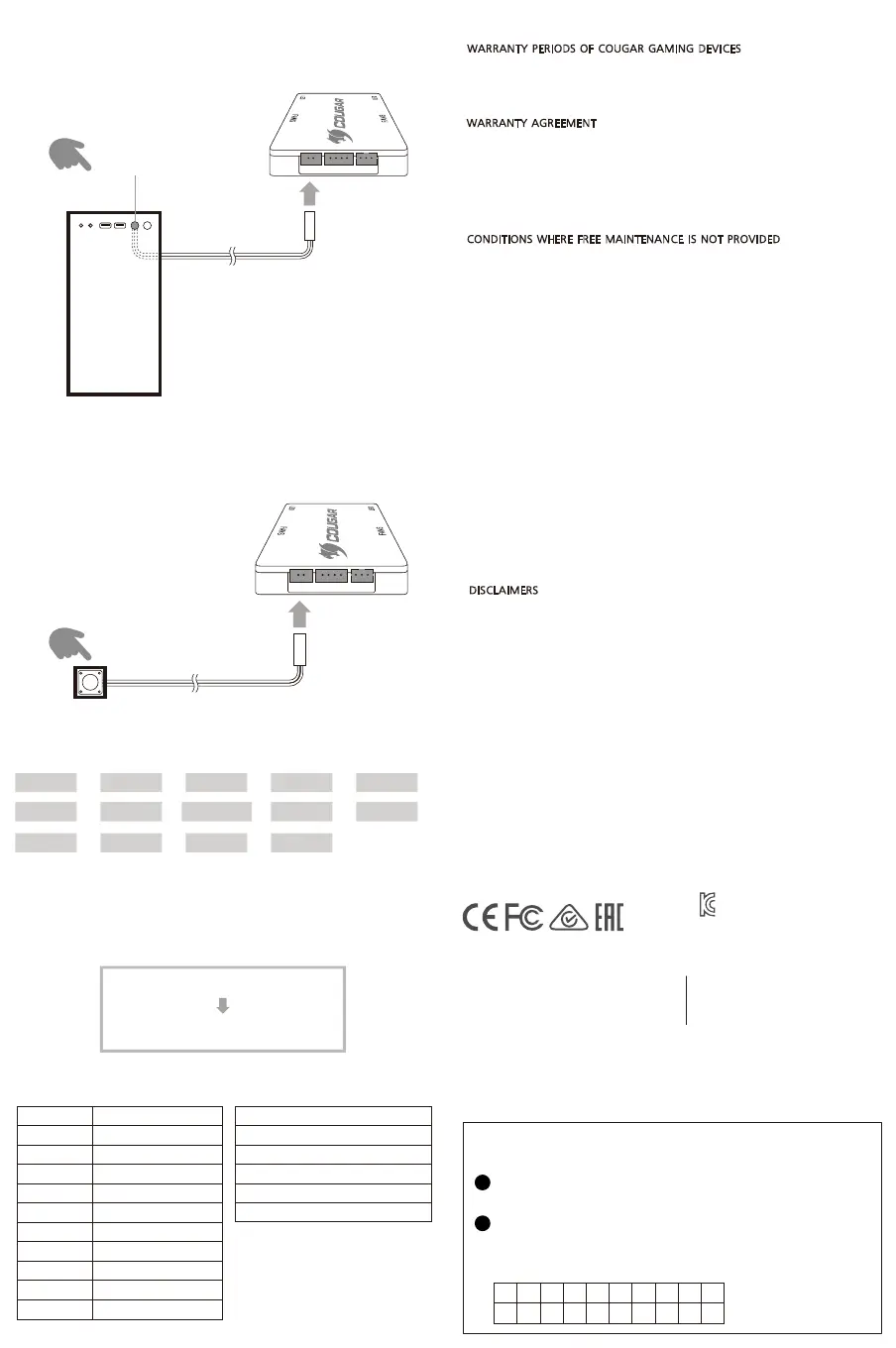

HOW TO SWITCH BETWEEN RGB CONTROL
MODES
Default: Core Box C RGB Control
Motherboard Driver RGB Control
Press and hold the switch for three seconds to switch between RGB control
modes.
CORE BOX C
ORDER OF THE 14 PRESET LIGHTING EFFECTS
TWO WAYS TO CONTROL YOUR RGB LIGHTING
Flow
>
Swift
>
Breathing
>
Red
>
Orange
>
Yellow
>
Green
>
Yellow-green
>
Blue
>
Sky-blue
>
Purple
>
Fuchsia
>
White
>
Pink
>
Lighting Off
POWER M-INC-SW
POWER M-INC-SW
2.Use the Included Lighting Switch Cable.
1.Connect Your Case's Reset Button to
the Core Box C and Use It to
Change Lighting Modes.
PC Case
Reset Button
год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)
После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H1702000001 означает, что товар был произведен в
феврале 2017 года.
После S/N: если указаны буквы, то две буквы представляют цифры из
таблицы ниже, и означают год, последующие две цифры –
месяц изготовления.
Например, S/N: DAG02REVI000001 означает, что товар был произведен
в феврале 2017 года.
●
Например,
AG = 17 = 2017 год
ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ
A B C D E F G H I J
1 2 3 4 5 6 7 8 9 0
A
B
MSIP-REI-CEE-COUGAR VORTEX RGB
FCB120 COOLING KIT
