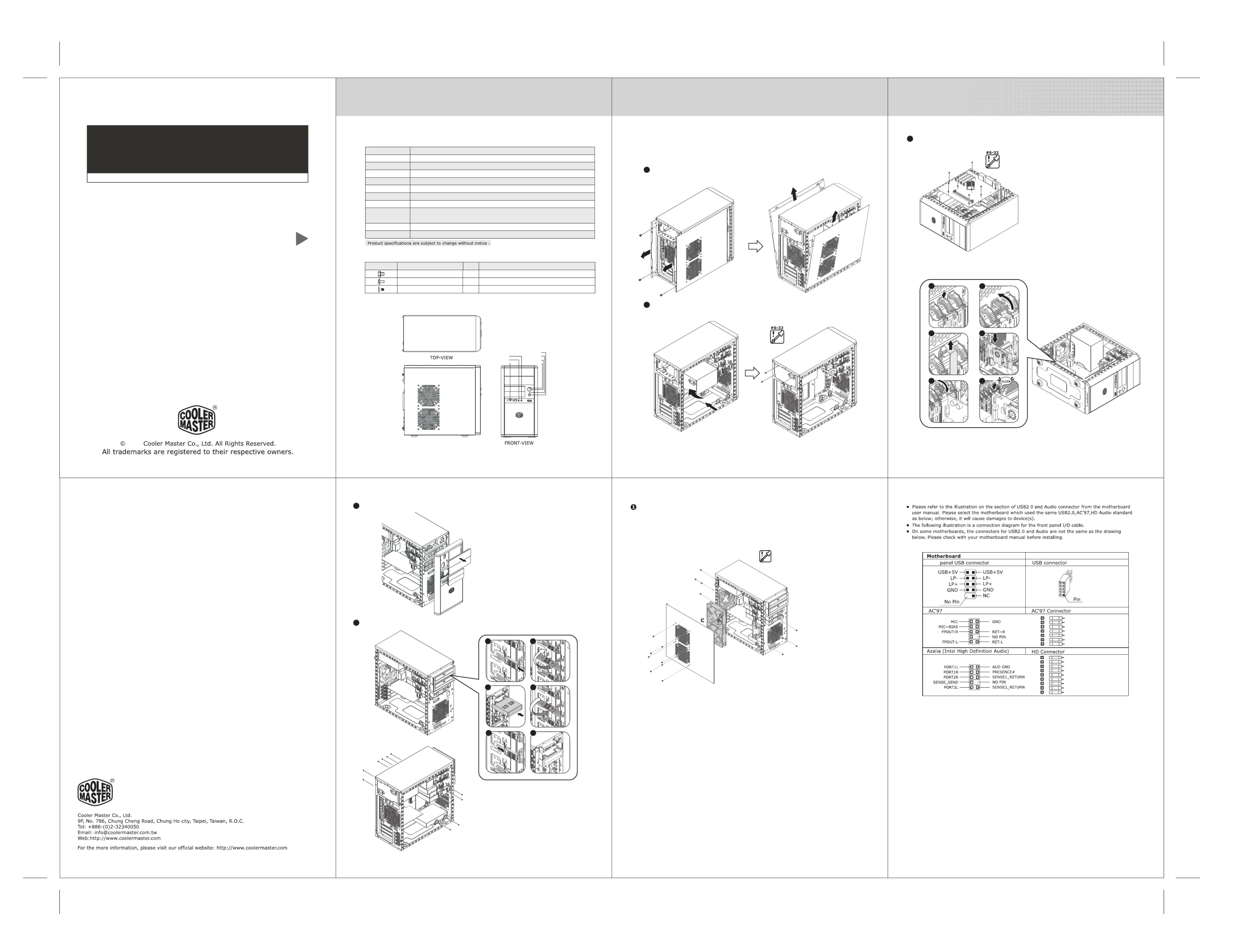

Elite 341
Elite 341
Black
L400 x W185 x H365mm
Net Weight : 3.9kg; Gross Weight : 4.8kg
SECC
Micro-ATX
2 (Exposed)
2 (Exposed); 2 (Hidden)
4
Rear 120mm fan x 1
Front 120mm fan x 1 (optional); Left 120mm fan x 2 (optional)
USB 2.0 x 2, MIC x 1, SPK x 1, IEEE 1394a x 1 (optional), eSATA x 1 (optional)
Standard ATX PS2 (optional)
Available Color
Dimension
Weight
Material
M/B
5.25” Drive Bay
3.5” Drive Bay
Expansion Slot
Cooling System
I/O Panel
Power Supply
1.2 Fittings Pack
1.1 Specifications
1.3 Diagram
FigureParts Name
#6-32 screw
M3 screw
HDD-screwinstalling 3.5" device
Q’tyUsed for
M/B tray,power supply
CD-ROM,FDD,3.5’’ Bracket
18
10
16
2. Installation Guide
1. Product Overview
FE
DC
A
B
A
C
A
B
D
C
E
F
M5
A
A
B
B
2.2 How to install the motherboard
2.3 How to install add-on cards
1
Make sure the holes on the Motherboard and chassis line up properly
before securing the screws.
2.1 How to remove the side panel and install the power supply
Remove the 4 screws and pull the side panel backward.
1
Place the PSU in the location as shown below.If the PSU has a single fan,
please make sure the fan faces downwards.
2
Note: The sequence of installation may be different, depending on the type of
case and devices used.
2.4 How to install the 3.5” and 5.25” devices2.5 How to install or replace case fans
1
Remove the front panel.
2
How to install 5.25” and 3.5" devices.
A. Rear fan x 1 : Supports 80/90/120mm fans
B. Front fan x 1 : Supports 80/90/120mm fans (optional)
C. Left fan x 2 : Supports 80/90/120mm fans (optional)
Install/replace rear / front / left fans
3. Front Connector Installation Guide
-01--02--03-
-04--05--06-
HDD
Elite 341
Installation Guide
2008
POWER
POWER LED
RESET LED
MIC
HEADSET
USB 2.0
RESET
LEFT-VIEW
Top
Red-MIC
Red/Red-PORT1L
Yellow/Yellow-PORT1R
Brown/Brown-PORT2R
Green/Green-PORT2L
Black/Black-AUD GND
Orange-SENSE2_RETURN
White-SENSE1_RETURN
Blue-SENSE_SEND
purple-PRESENCE#
Yellow-MIC-BIAS
Brown/brown-FPOUT-R
Green/Green-FPOUT-L
Black-GND
Brown-RET-R
Green/Green-RET-L
Case Connector
Product specificaties
| Merk: | Cooler Master |
| Categorie: | Computerbehuizing |
| Model: | Elite 341 |
| Kleur van het product: | Zwart |
| Breedte: | 185 mm |
| Diepte: | 400 mm |
| Hoogte: | 365 mm |
| Soort: | PC |
| Vormfactor: | Mini Tower |
| Aantal USB 2.0-poorten: | 2 |
| Aantal eSATA-poorten: | 1 |
