Quick Install Guide
ES-7246PoE| 8-Port PoE+ Lite-Smart Fast Ethernet Switch
Understanding the PoE+ Switch
Plug and Play Setup
Power on the Switch:
Power on the Switch before plugging in any Ethernet cables, the system will go through a
Power-On-Self-Test (POST) with the LEDs lighting Green or Amber in color. After completing the
POST, the LEDs will remain in a lit state as indicated in the table below.
Plug in the Ethernet cables:
The ES-7246PoE switch will automatically communicate with devices that support PoE standard
IEEE 802.3af/at. Use the "PoE Power Budget" LED indicators on the front panel to visualize the
PoE Power Budget Remaining.
LED Indication
Color / Status
Description
PoE Power Budget
LED Full, 75%, 50%, 25%
(4 LEDs)
Green On
No PoE Power Budget is consumed.
LED 75%, 50%, 25%
(3 LEDs)
Green On
100 % > remaining PoE Power Budget >= 75%
LED 50%, 25%
(2 LEDs)
Green On
75 % > remaining PoE Power Budget >= 50%
LED 25%
Green on
50 %> remaining PoE Power Budget >= 25%
LED 25%
Amber On
25 % > remaining PoE Power Budget >= 15.4W
LED 25%
Amber Blinking
PoE Power Budget remaining is <15.4W
LED Indication
Color / State
Description
Power
Green On
The device is powered on.
PoE Power Budget
Full
Green On
Available POE power is as indicated.
75%
Green On
50%
Green On
25%
Green On
System
Amber On
Device passed POST and ready for login.

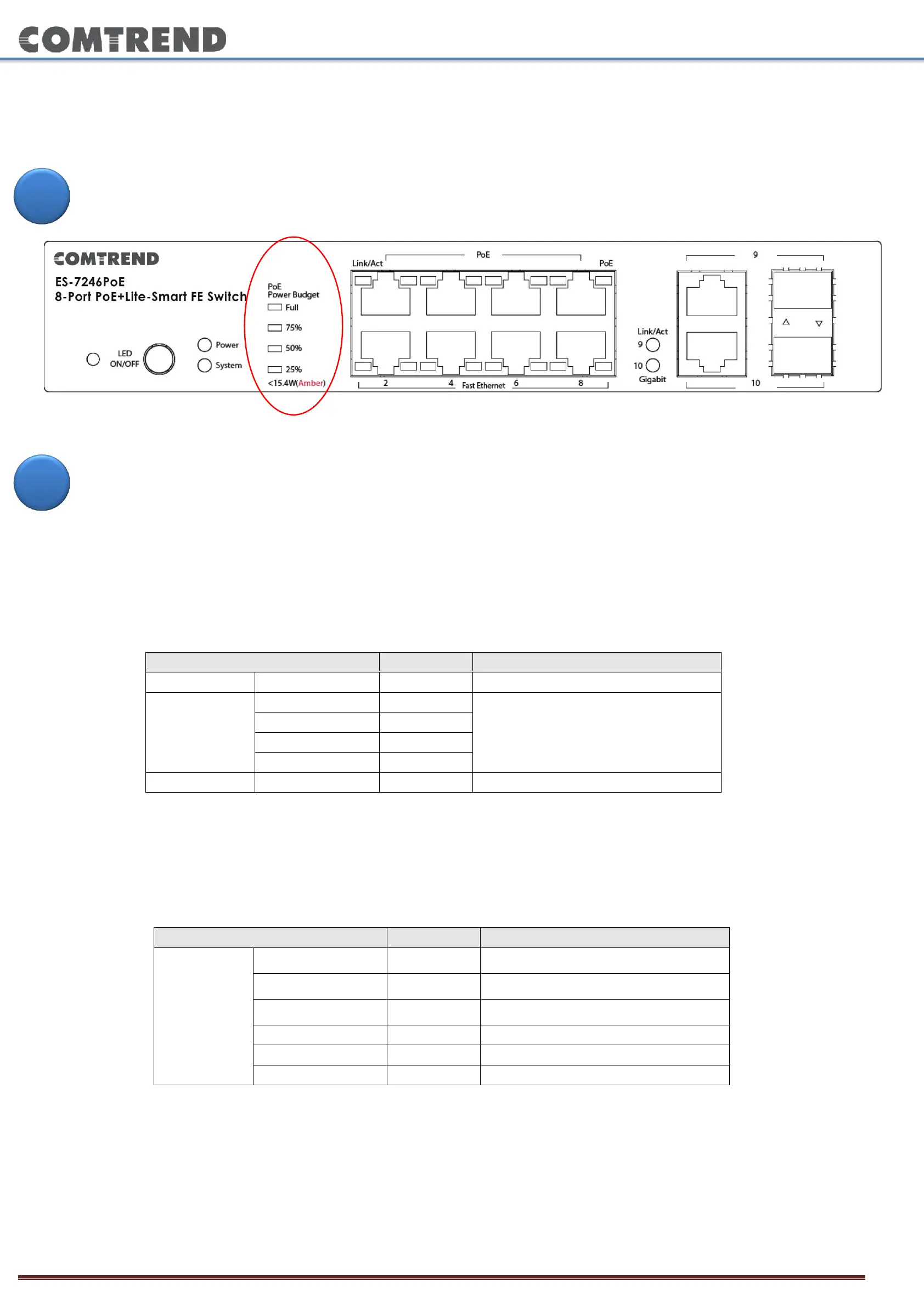

Fig. Front Panel of ES-7246PoE
