C S V -1 5 9 6 Q U I C K I N S TA L L AT I O N G U I D E

CSV-1596 QIG 05-2021

Thank you for purchasing our CSV-1596 Product. After unpacking

the product, please make sure you have all the items provided and

checked for any damages. In case of any missing/damaged parts

please inform your supplier immediately.

You should have:

• CSV-1596

• QIG, Quick Installation Guide

USB Type C 3.2 Gen1, 6-in-1 Hub with HDMI™8K30Hz-4K120Hz, 2xUSB

Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt

Disclaimer:

While we endeavor to provide the most accurate, up-to-date information available, the content on this document may be out of date or include omissions, inaccuracies or other errors. Therefore Club 3D does not accept any rights claimed on the content of this document.

Please refer to a full overview of our Legacy Terms and Conditions on www.club-3d.com. All other brand names are trademarks or registered trademarks and are the property of their respective owners. All content is subject to change without prior notice.

About 100W Charging (for PD 3.0 Charging):

The adapter will take 15W (of the 100W).

PD the Maximum support is 85W.

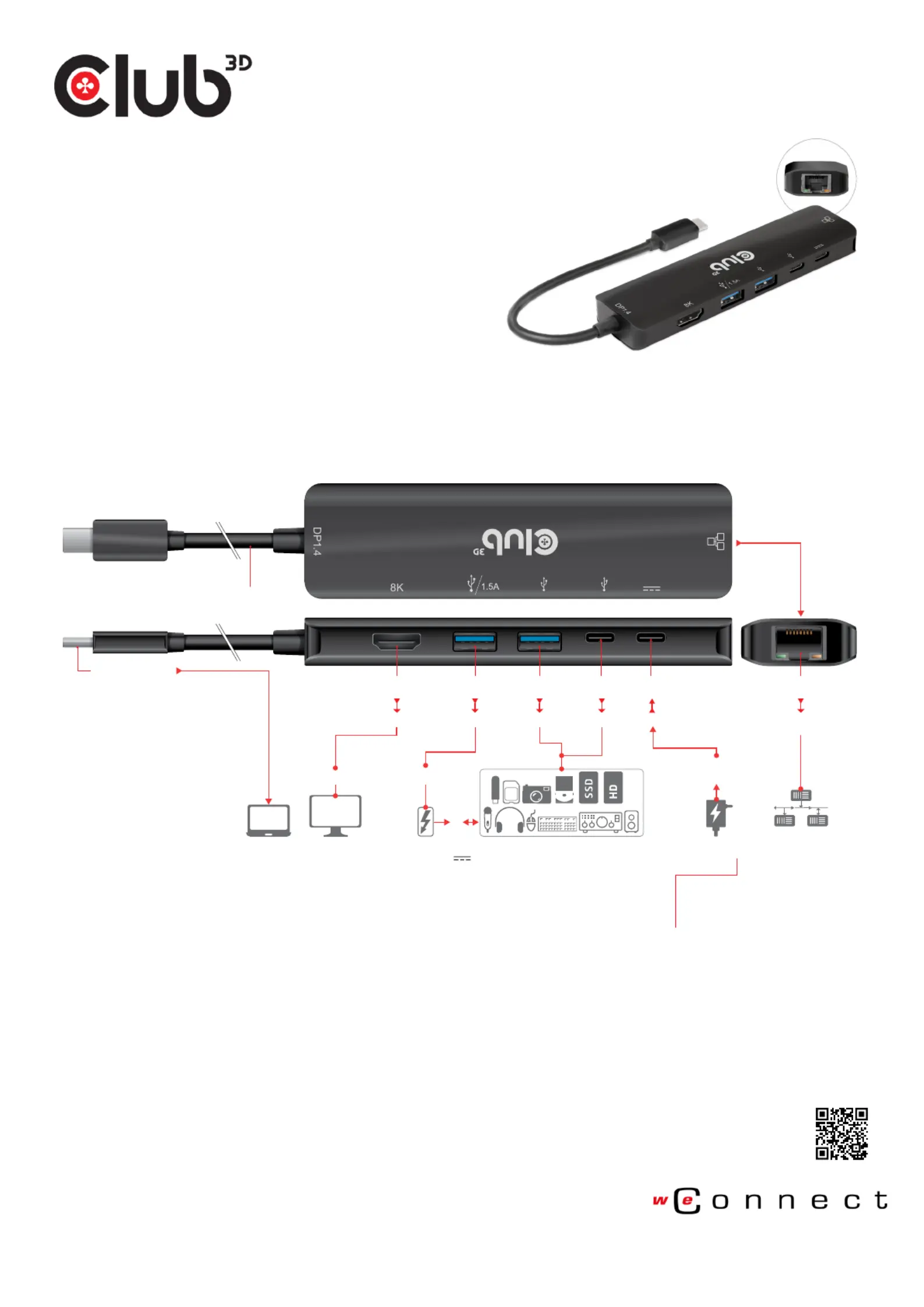

USB-A

Female

USB-A

Female USB-C

Female

HDMI

Female RJ45

Jack

Max 8K@30Hz Max 7.5W(5V@1.5A)

Ethernet Router

up to 1000MB/s

DataCharging Data

USB-C

Female

PD Charging*

* USB-C port for PD charging Hub and Laptop/Device only!

Type-C Male

(Host connection)

Cable length ± 14cm / 5.51"

USB-C

Source

Router / Network

HDMI

Display

100W (20V/5A)

Fast Role Swap of PD 3.0

The Club 3D CSV-1596 is a USB Gen1 Type-C, 6-in-1 Hub with HDMI™8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD

charging 100 watt, providing an ideal solution for extending the port of Type-C/Thunderbolt host (PC/Laptop/Mobile phone,etc.), especially

for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode supported IC, enabling to output HDMI™ video with max.

8K30Hz-4K120Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. The USB Type-A and Type-C data ports allow you to connect 4

USB devices simultaneously. 1 Gigabit Ethernet for super fast Ethernet. Besides, the Type-C female supports PD 3.0 PD Charging 100W (15W is

dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP

Alt mode supported Type-C hosts.

Features:

• Upstream USB Type-C Female:

- Support DP1.4 Alt mode

- Support HBR3

- Support DSC1.1/1.2a or uncompressed video

- Support DSC 1.1/1.2a decoder

- Support 8/10/12 bit color depth

- Support pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/

YCbCr4:2:0

- Support positive and negative connection

• Downstream HDMI™ Female:

- Support HDMI™ max 7680*4320@30HZ

- Support HDMI™ max 4196(3840)x2160@120Hz

- Support Dynamic HDR10+

- Support HDCP1.4&HDCP2.3 speciﬁcation

- Support HPD

- Support DSC 1.1/1.2a decoder

- Support 8/10/12 bit color depth output

- Support pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/

YCbCr4:2:0

- Support 1 to 32 channels LPCM 192kHz audio output

- Supports HBR audio up to 1536kHz

Note: The output resolution, refresh rate, video pixel format

depends on the performance of the computer and the monitor.

• 2x USB Type-A Female

1- USB Type-A port (next to HDMI™ port)

supports max 7.5W(5V@1.5A) downstream charging

2- USB Type-A, second port support max 4.5W(5V@900mA)

downstream charging

Max 5Gbps bandwidth per USB Type-A port

• RJ45 (Gigabit Ethernet)

-Support 10Mbps/100Mbps/1000Mbps

• USB Type-C Data Female(Close to USB-A port)

- Max 5Gbps data transmission

- Support 4.5W(5V@900mA) downstream charging

- Support short-circuit, over-current, over-voltage protection

• USB Type-C Female (for PD 3.0 Charging)

- Support PD Charging 100W (15W is dedicated to the

functioning of this product, the rest power

(max 85W) will be passed to charge for the host)

-Support Fast Role Swap of PD 3.0,

the connected device will not get disconnected

while plugging in and out PD Adapter
