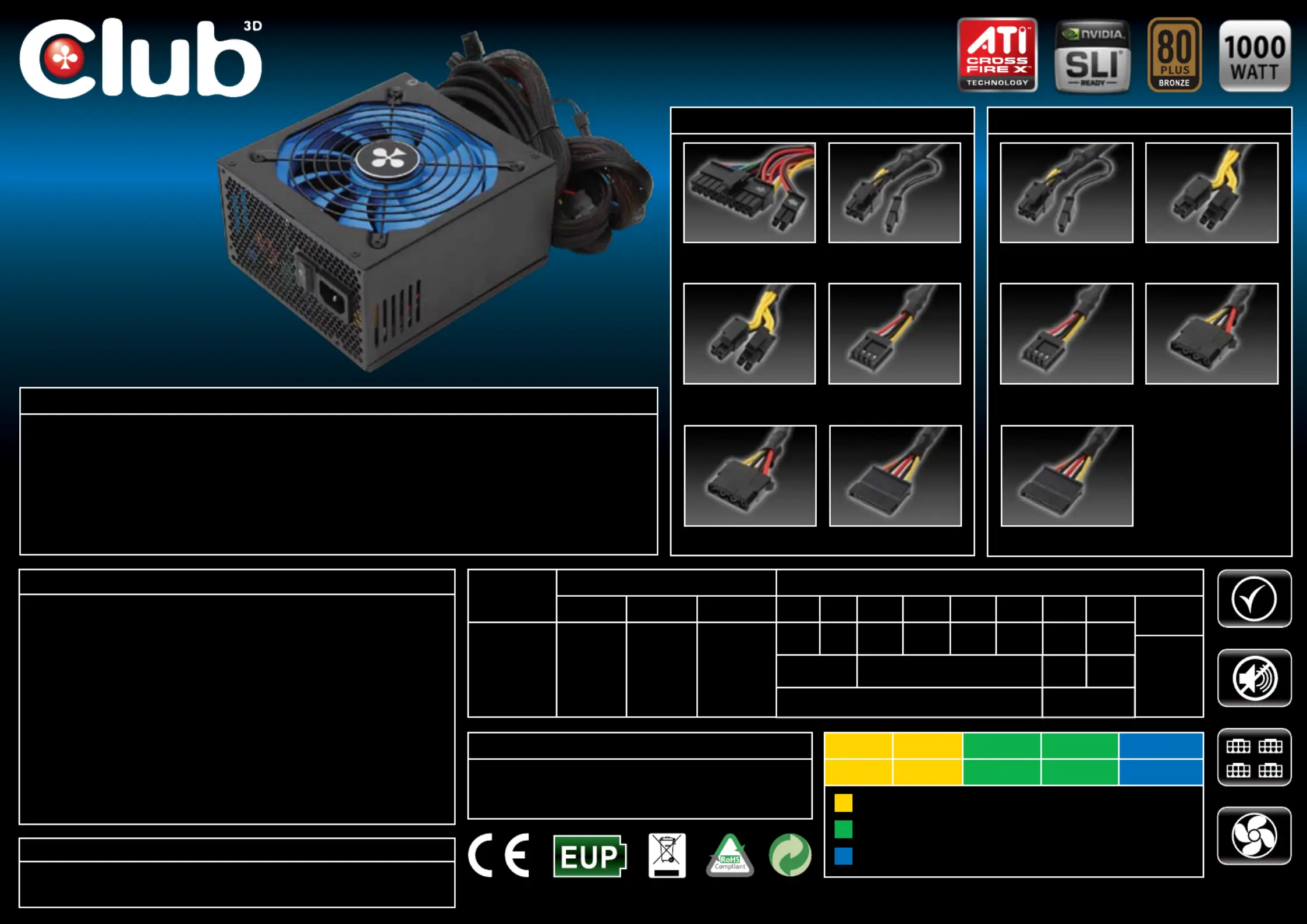

Specification

Type

PFC

Input Voltage

Input Frequency Range

Fan

Power Good Signal

Hold Up Time

Efficiency (Load)

Dimensions (W / D / H)

Operation Temperature

Safety

80-PLUS Certification

Protection

Cable loom (mm)

20+4P Main

ATX/EPS 4+4P

PCI-E 6+2P

Features

• Compatible with latest PC-technology

Supports the newest specifications of ATX12V & EPS12V. Supports current and next-generation multi-CPU and GPU

platforms (including ATI Crossfire and NVIDIA SLI configurations).

• Extremely high efficiency (80-Plus® Bronze certification)

Up to 85% of efficiency, compliant with 80-Plus® Bronze efficiency requirement.

• Highly durable & reliable 105°C and 85°C capacitors

The best solution for a High-end PSU by using 105°C and 85°C capacitors.

• Ultra-quiet fan

Extremely Low Noise Level, equipped with a large and ultra-quiet 135mm fan.

Input Characteristics

Input Current

15A

Total Max.

Output

1000W

+3.3V +5V +12V1 +12V2 +12V3 +5VSB

24A 30A 38A 38A 38A 38A

170W 864W 6W 15W

979W 21W

0.5A 3.0A

-12V2+12V4

Output Characteristics

Item

Code

CSP-X1000CB

Voltage

115V-230V

Frequency

50-60Hz

Included in the box

• Switching Power Supply unit

• Switching Power Supply unit thumbscrews

• Switching Power Supply unit bag

• User manual

• Power cord

• 3x Velcro wraps for cable management

135mm Fan

Cable Management

Extremely Low Noise

Safety Protections

trademarks and are the property of their respective owners.All specifications are subject to change without notice.

Made for PC with single VGA configurations.

CSP-S400

400 Watt

CSP-S600

600 Watt

CSP-D700CB

700 Watt

CSP-D850CB

850 Watt

CSP-X1000CB

1000 Watt

Made for PC with dual VGA configurations.

Made for PC with triple VGA configurations.

S W I T C H I N G P O W E R S U P P L Y

Modular CableNative Cable

1x 20+4 pin main

connector

1x Floppy connector

3x SATA connector

5x Peripheral connector

1x ATX12V/EPS12V

4+4 pin connector

4x PCI Express 6+2 pin

connector

1x Floppy connector

2x Peripheral connector 6x SATA connector

2x PCI Express 6+2 pin

connector

1x ATX12V/EPS12V

4+4 pin connector

Item Code: CSP-X1000CB

EAN Code: 8717249408727

• Carrying bag

• Modular cables

550

550+150

SATA

PATA+FLOPPY

550+150

www.club-3d.com

ATX Form Factor 12V V2.3 / SSI standard EPS 12V V2.92

Active PFC (0.99)

100-240V (Auto Range)

50 ~ 60Hz

Ultra-silent 135mm temperature controlled fan

100 ~ 500ms

> 17ms

85%

Standard ATX 150 x 165 x 86 (mm)

0-40°C (nominal Input Voltage)

80PLUS Bronze

OCP (Over Current Protection), UVP (Under Voltage Protection),

OVP (Over Voltage Protection), SCP (Short Circuit Protection),

OPP (Over Power Protection)

Product specificaties

Merk:	CLUB3D
Categorie:	Computervoeding
Model:	CSP-X1000CB
Kleur van het product:	Black, Blue
Breedte:	150 mm
Diepte:	165 mm
Hoogte:	86 mm
Geluidsniveau:	10 dB
Gebruikershandleiding:	Ja
Stroom:	15 A
Aan/uitschakelaar:	Ja
Certificering:	CE, 80Plus Bronze
Bedoeld voor:	PC
Duurzaamheidscertificaten:	RoHS, ENERGY STAR
Soort voeding:	AC/DC
Aantal ventilatoren:	1 ventilator(en)
Stroomspanning bescherming:	Over current, Over power, Over voltage, Short circuit, Under voltage
80 PLUS certificatie:	80 PLUS Bronze
Totaal vermogen:	1000 W
Afmetingen (B x D x H):	150 x 165 x 86 mm
Type koeling:	Actief
Efficientie:	85 procent
AC-ingangsspanning:	115 - 230 V
AC-ingangsfrequentie:	50 - 60 Hz
Ventilator diameter:	135 mm
Motherboard power connector:	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin):	5
Vormfactor van de voeding (PSU):	ATX
Power Factor Correctie (PFC) type:	Actief
Maximale ingangsstroom (@110V):	+12V1, +12V2, +12V3, +12V4, +3.3V, +5V, +5Vsb, -12V A
Gecombineerd vermogen (+3.3V):	170 W
Gecombineerd vermogen (+12V):	979 W
Gecombineerd vermogen (+5V):	170 W
Max huidige output (+3.3V):	24 A
Max output current (+12V1):	38 A
Max output current (+12V2):	38 A
Max huidige output (+5V):	30 A
Max huidige output (-12V):	0.5 A
Max huidige output (+5Vsb):	3 A
Gecombineerd vermogen (-12V):	6 W
Gecombineerd vermogen(+5Vsb):	15 W
Aantal SATA power connectors:	9
Floppy drive power connector:	2
Bekabelingstype:	Semi-modulair
ATX version:	2.3
PCI Express power connectors (6+2 pin):	6
CPU power connector (4+4 pin):	Ja
ATX power connector (20+4 pin):	Ja
EPS version:	2.92
Max output current (+12V3):	38 A
Max output current (+12V4):	38 A
Aantal PATA power aansluiters:	2
PCI Express connector:	Ja
