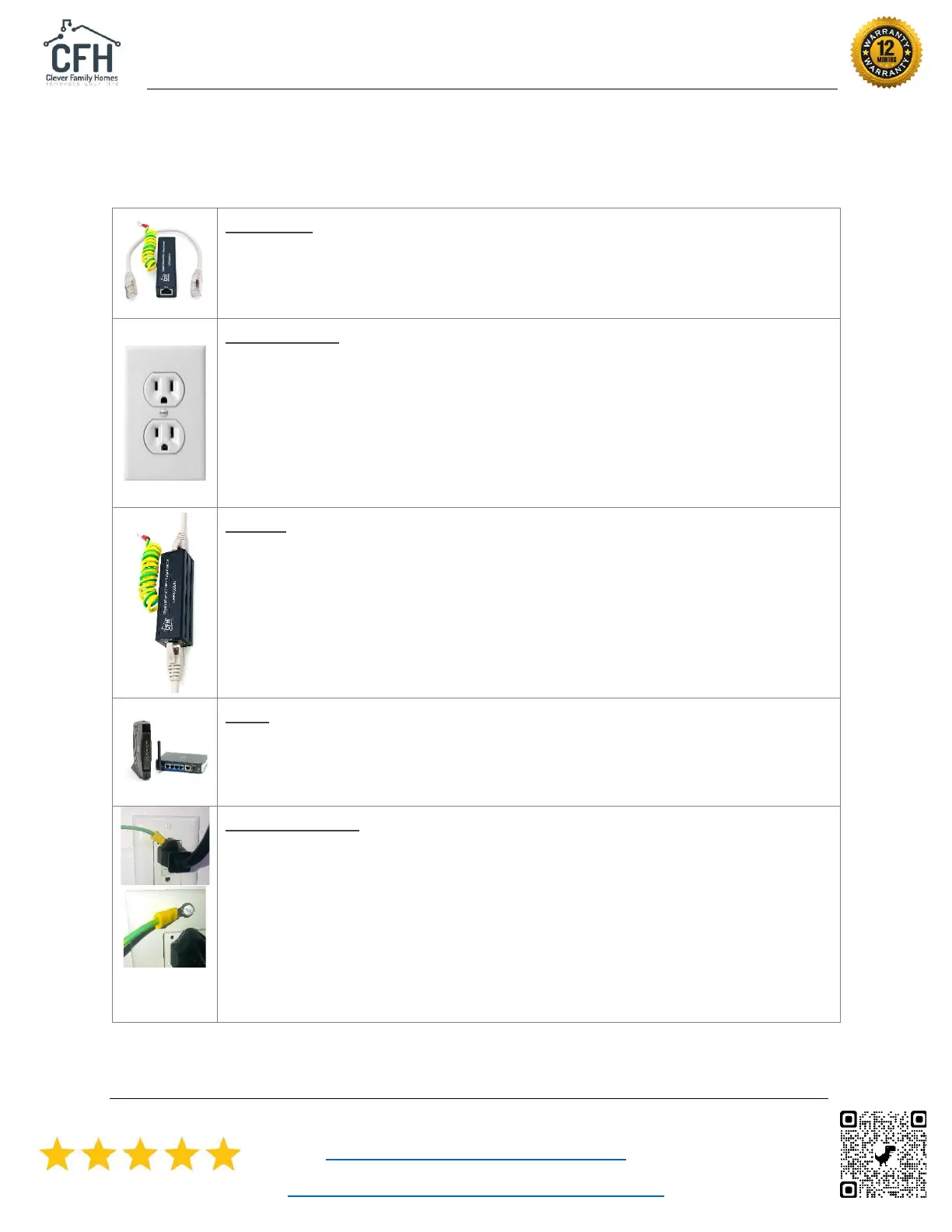

CFHSO0510- Installation Guide

1.1

support@cleverfamilyhomes.com

cleverfamilyhomes.com/power-protection

⚡Ethernet Gigabit POE++ Surge Protector Kit with CAT

6a Jumper Cable and Ground Wire.

Contents:

•One Ethernet POE++ SPD.

•1-foot Cat 6a jumper cable.

•2-foot AWG 14 ground wire.

Preparation:

•This SPD needs to be installed as close as possible to the device

to be protected using the 1-foot Cat 6a jumper cable.

•Find the best ground point: a wall outlet or device case screw

(Modem, Router, Switch etc.). Check that the connection is

properly grounded. For wall outlets, use a “outlet tester”. For

devices, check with the vendor or perform an ohm test <= 5.

Install:

•Insert the network CAT cable into the IN port.

•Connect one end of the CAT 6a 1-foot jumper lead onto the OUT

port of the protector and the other end onto the device RJ45

connection.

•Don’t bother installing and connecting the complete ground wire

until you have tested the connection.

Test:

•Connect the device and check that the data quality and speed is

ok and same as before. If there is any distortion or degradation,

see the troubleshooting guide over the page.

Ground install:

•Connect the free end of the ground wire to a wall outlet or screw

onto the metal case of a device (make sure it’s grounded).

•If using a wall outlet: (1) thread the #10 ring terminal over the

large round ground prong of a plug, (2) You can use one of the

wall socket plate screws if grounded or (3) you can also wire the

ground wire directly to the wall socket ground. We recommend

disconnecting the power and using an electrician for this.
