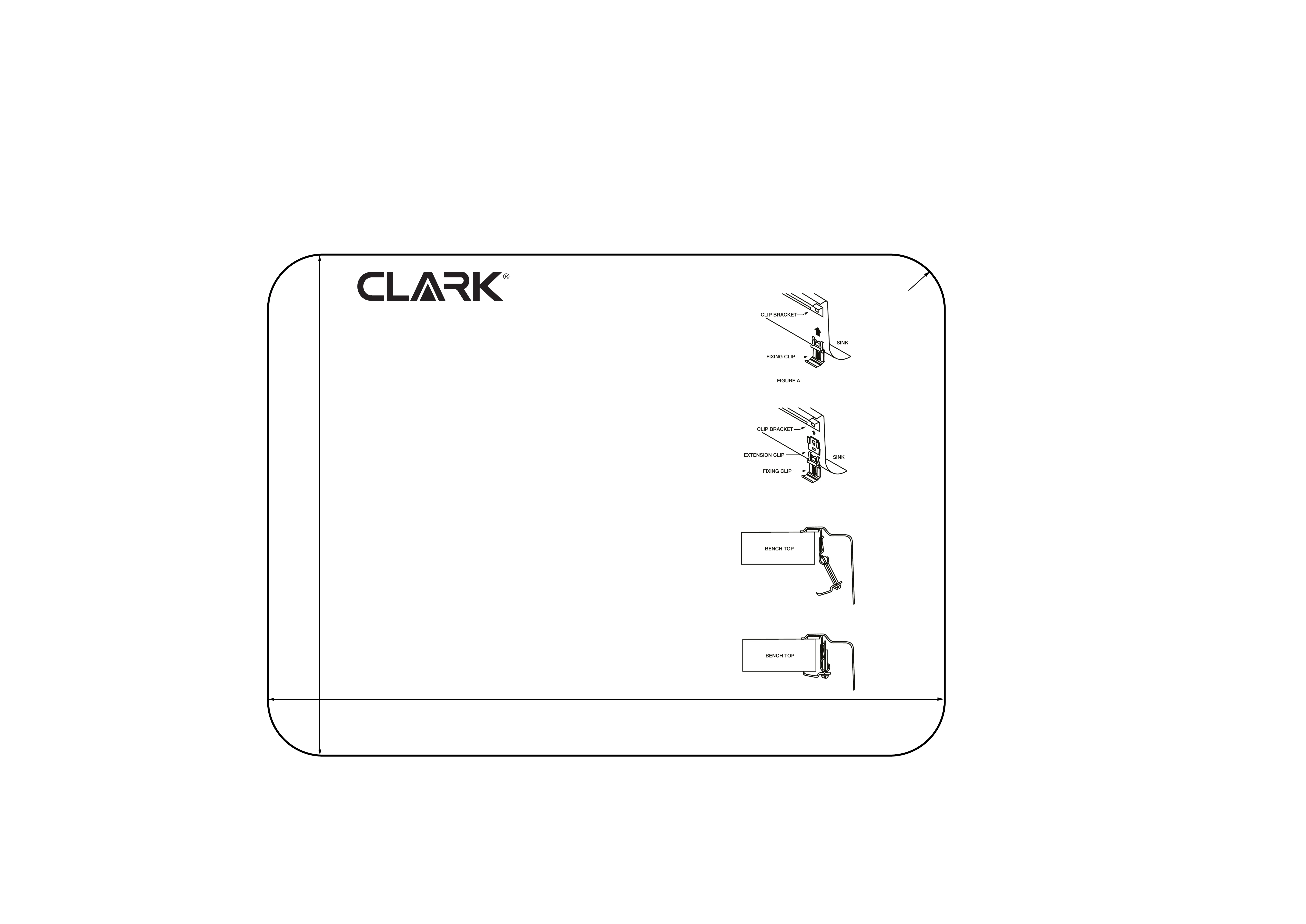

Flushline 8500 Laundry Tub

FIGURE B

FIGURE C

FIGURE D

GWA Bathrooms & Kitchens bears no responsibility for faulty installation

and the effects thereof.

1. Inspect sink for damage and dimensional compatibility. Do not attempt to

install a damaged sink.

2. Using the cut-out template mark the exact location of the required cut-out in

the benchtop and draw a pencil line against the edge of the template.

3. Ensure that the tap location is suitable. Ensure that the supplied cut-out gives

the desired fit.

4. Before commencing cutting, double check the marked cut-out dimensions. Cut

out the bench top carefully following the inside edge of the marked line. An

exact cut is required to obtain the best fit.

5. For normal thickness bench tops, the attached fixing clips should be suitable.

Lightly hammer the fixing clips onto the clip brackets along the product rim.

(If the thickness of the bench top exceeds the range of the fixing clips then

extension clips can be purchased and mounted onto the clip brackets.

See Figure B)

6. Position the sink in the cut out hole and align properly. The fixing clips can be

bent out of the way to assist installation (see Figure C).

7. Remove the sink and if required install the waste assemblies and the tap. It is

suggested that silicone sealant be applied between the waste grate and the

sink outlet hole.

8. Apply a continuous bead of silicone sealant along the edge of the sink and

quickly place into position.

9. Bend the fixing clips straight so that the legs clear the hinge area. Tighten the

clips evenly using a low torque setting (see Figure D). Note: over tightening the

clip may strip the thread.

10.Plumb up the tap and waste fittings.

NOTE: For thin bench tops special clips (A0167) are available.

INSTALLATION INSTRUCTION FOR OVERMOUNT SINK

Issue No: 1

Date of Issue: 01.10.2015

616 BETNCH CUTOU

456BENCH CUTOU T

R50
