CARSON®

SR-100

STARA

TM

Refractor Telescope with Alt-Az Mount

Congratulations on selecting your new telescope! In order to achieve

optimum performance, please follow instructions for proper use and care.

PRODUCT SPECIFICATION:

Magnification:

Theoretical Magnification up to 675x

Focal Length / Ratio:

900mm, f/15

Aperture:

60mm (2.4")

Erecting Diagonal:

Orients to Upright View like a Spotting Scope

Optical Design:

Refractor

Finderscope:

5x24mm

Mount Type:

Lens Coatings:

Fully Coated

Alt-Az (Tripod included)

Erecting Eyepiece:

1.5x

Eyepieces:

H20mm (45x), H12.5mm (72x),

Barlow Lens:

3x (Triples Magnification)

SR4mm (225x), Size 1.25”

Filter:

Green Moon Filter

® VIDEO TUTORIAL

www.carson.com/MyTelescope

For details on how to use and align your telescope, please visit:

/-

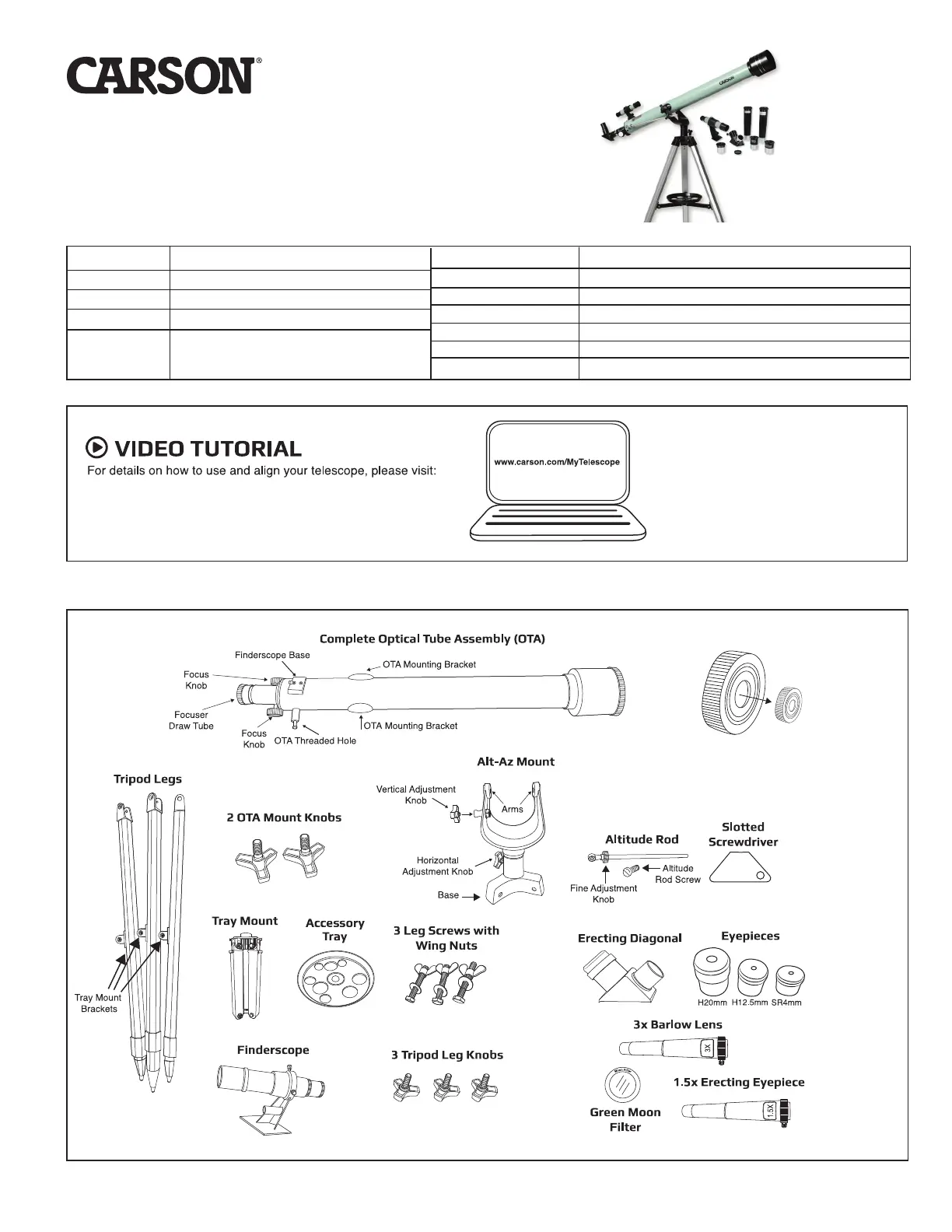

COMPLETE OPTICAL TUBE ASSEMBLY (OTA)

1

Complete Optical Tube Assembly (OTA)

Finderscope Base

'\. --~-...--OTA Mounting Bracket

~

)

~nci~~~-~

:

~

Focuser >--------------

Draw Tube / , j OTA Mounting Bracket

Tripod Legs

Tray Mount

Brackets

0

Focus ,

Knob OTA Threaded Hole

2 OTA Mount Knobs

Tray Mount

Accessory

m

Tray

@

Finderscope

Vertical Adjustment

Knob "-..

i----

Alt-Az Mount

Horizontal _,.,.....

Adjustment Knob

3 Leg Screws with

Wing Nuts

"'

3 Tripod Leg Knobs

Slotted

Altitude Rod Screwdriver

@lit ~+-Altitude ~O

Rod Screw l______.Q)

Fine Adjustment

Knob

Erecting Diagonal Eyepieces

~

~fi,~

3x Barlow Lens

C(

Green Moon

Filter

1.Sx Erecting Eyepiece

C(

OTA Lens Covers

Some models have two lens

covers. Please make sure to

remove both before viewing.
